SAP206-18G, Pillow Block Mounted Unit Ball Bearing, 1 1/8 in Bore (ID), Insert Bearing: SA206-18G, Housing: P206, with Locking Collar

In stock
$14.75
Product details
  • Type Mounted Unit Bearings
  • Part Number SAP206-18G
  • Housing P206
  • Insert Bearing SA206-18G
  • Bore (ID) 1.125 in | 28.575 mm
  • Height 3.228 in | 82 mm
  • Length 6.299 in | 160 mm
  • Bolt to Bolt 4.764 in | 121 mm
Description

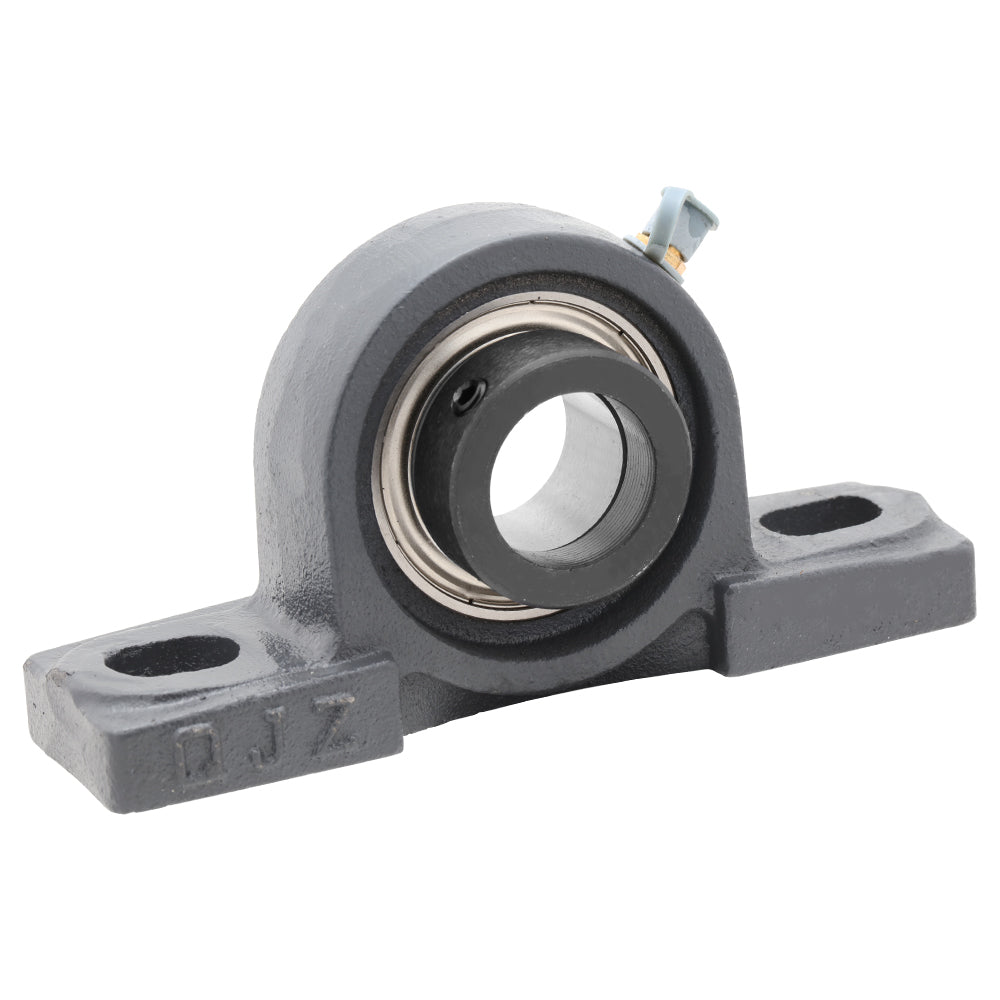

Pillow Block Mounted Unit Ball Bearing: SAP206-18G

The SA series pillow block mounted ball bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing (SA206-18G) and a cast iron housing (P206) with a locking collar, designed for easy installation and long-lasting performance. Includes a relubricatable insert bearing (G) for extended service life.

Model SAP206-18G
Shaft Bore (ID) 1.125 in | 28.575 mm
Length 6.299 in | 160 mm
Width 1.732 in | 44 mm
Height (Thickness) 3.228 in | 82 mm
Bolt to Bolt Spacing 4.764 in | 121 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
