SAP205G, Pillow Block Mounted Unit Ball Bearing, 0.984 in Bore (ID), Insert Bearing: SA205G, Housing: P205, with Locking Collar

Out of stock
$13.25
Product details
  • Type Mounted Unit Bearings
  • Part Number SAP205G
  • Housing P205
  • Insert Bearing SA205G
  • Bore (ID) 0.984 in | 25 mm
  • Height 2.756 in | 70 mm
  • Length 5.512 in | 140 mm
  • Bolt to Bolt 4.134 in | 105 mm
Description

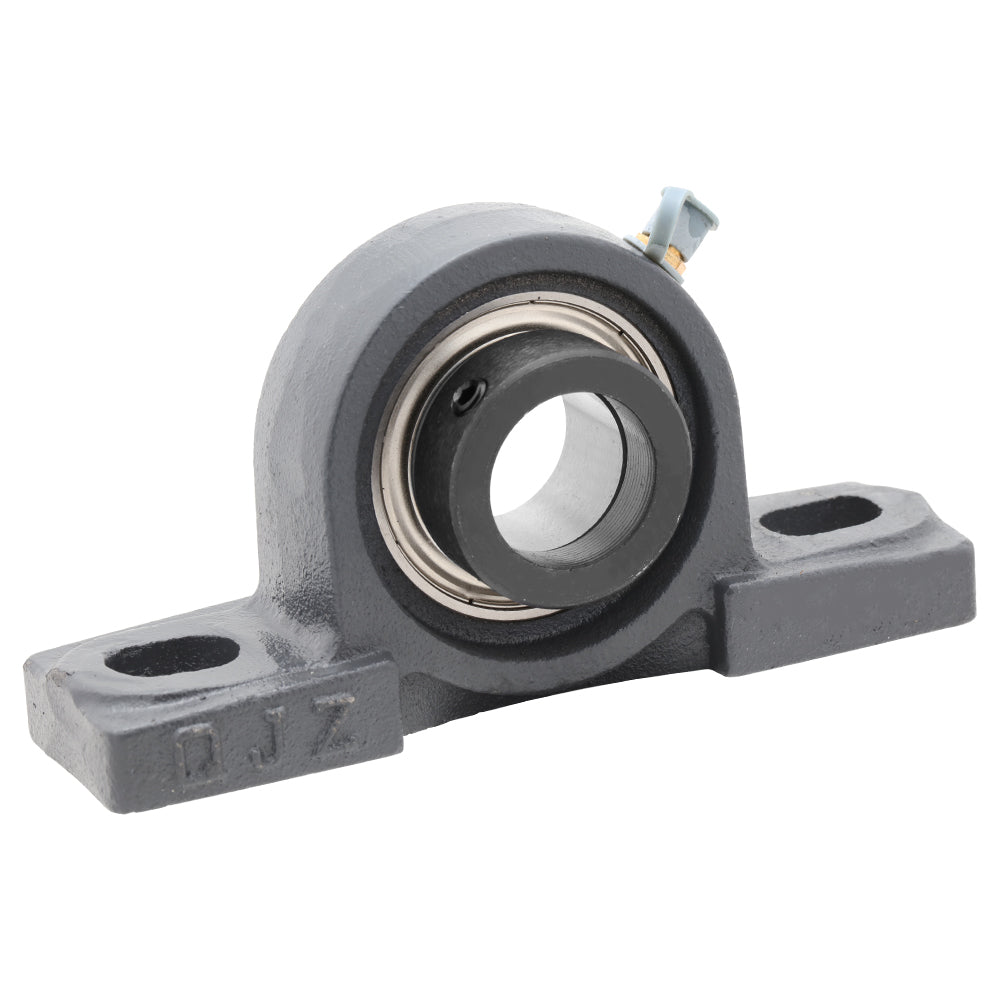

Pillow Block Mounted Unit Ball Bearing: SAP205G

The SA series pillow block mounted ball bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing (SA205G) and a cast iron housing (P205) with a locking collar, designed for easy installation and long-lasting performance. Includes a relubricatable insert bearing (G) for extended service life.

Model SAP205G
Shaft Bore (ID) 0.984 in | 25 mm
Length 5.512 in | 140 mm
Width 1.496 in | 38 mm
Height (Thickness) 2.756 in | 70 mm
Bolt to Bolt Spacing 4.134 in | 105 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
