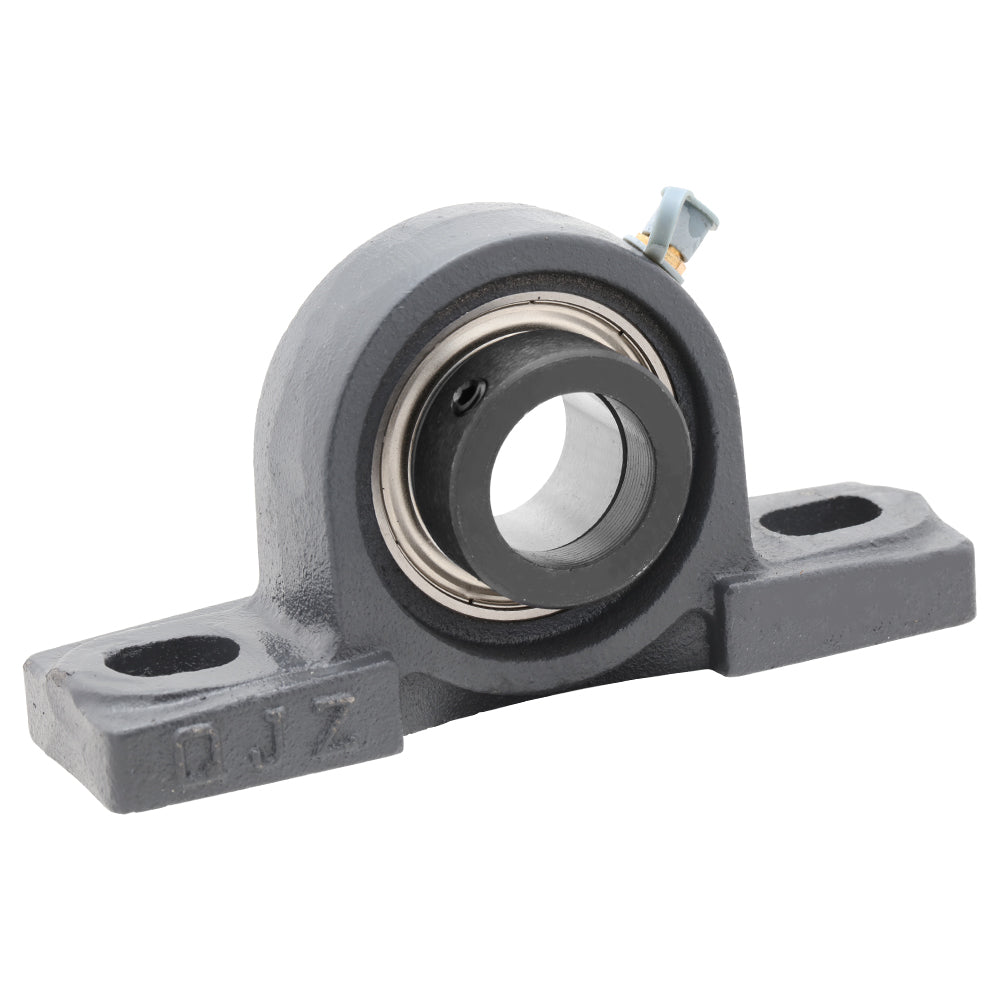

SAP205-15G, Pillow Block Mounted Unit Ball Bearing, 15/16 in Bore (ID), Insert Bearing: SA205-15G, Housing: P205, with Locking Collar

Out of stock
$13.50
Product details
  • Type Mounted Unit Bearings
  • Part Number SAP205-15G
  • Housing P205
  • Insert Bearing SA205-15G
  • Bore (ID) 0.938 in | 23.813 mm
  • Height 2.756 in | 70 mm
  • Length 5.512 in | 140 mm
  • Bolt to Bolt 4.134 in | 105 mm
Description

Pillow Block Mounted Unit Ball Bearing: SAP205-15G

The SA series pillow block mounted ball bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing (SA205-15G) and a cast iron housing (P205) with a locking collar, designed for easy installation and long-lasting performance. Includes a relubricatable insert bearing (G) for extended service life.

Model SAP205-15G
Shaft Bore (ID) 0.938 in | 23.813 mm
Length 5.512 in | 140 mm
Width 1.496 in | 38 mm
Height (Thickness) 2.756 in | 70 mm
Bolt to Bolt Spacing 4.134 in | 105 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
