QJZ

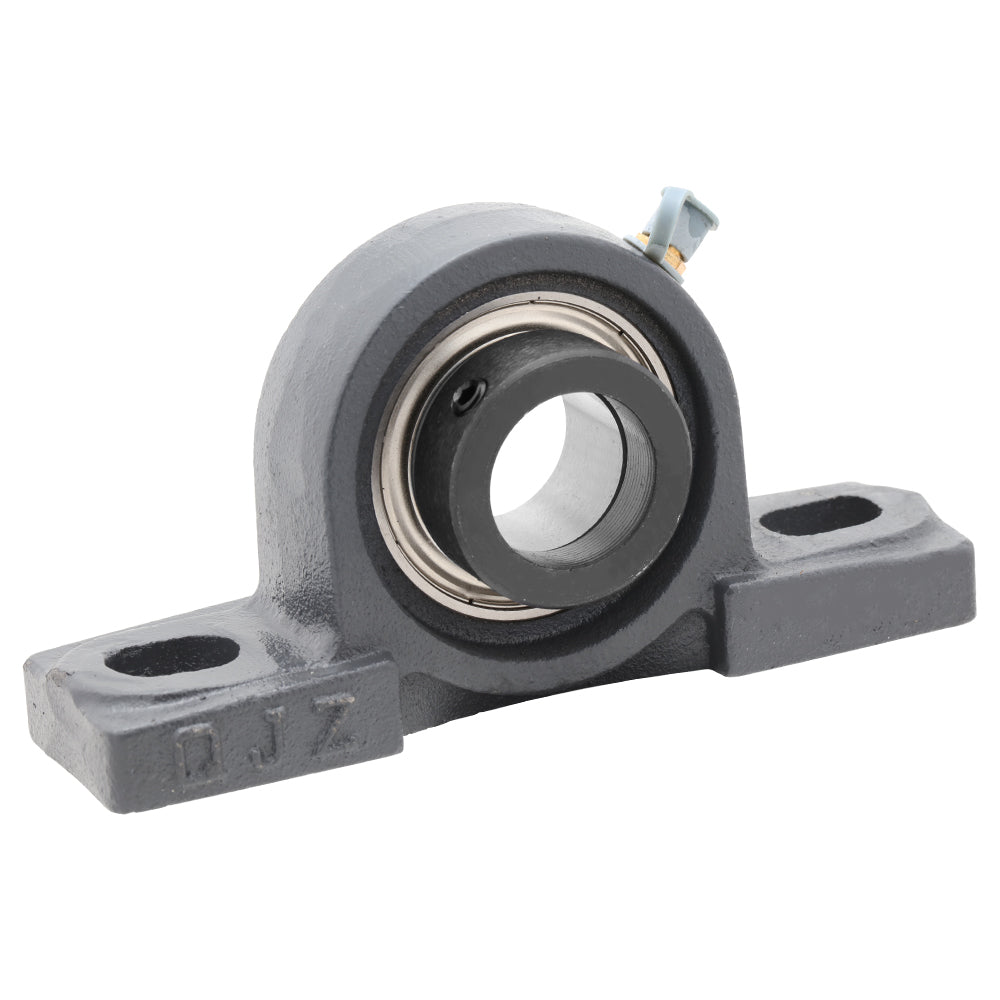

SAP205-14G, Pillow Block Mounted Unit Ball Bearing, 0.875 in Bore (ID), Insert Bearing: SA05-14G, Housing: P205, with Locking Collar

Out of stock
SKU: SAP205-14G
$13.50
Product details
  • Type Mounted Unit Bearings
  • Part Number SAP205-14G
Description

Pillow Block Mounted Unit Ball Bearing: SAP205-14G

The SA series pillow block mounted ball bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing (SA05-14G) and a cast iron housing (P205) with a locking collar, designed for easy installation and long-lasting performance. Includes a relubricatable insert bearing (G) for extended service life.

Model SAP205-14G
Shaft Bore (ID) 0.875 in | 22.225 mm
Length 5.512 in | 140 mm
Width 1.496 in | 38 mm
Height (Thickness) 2.756 in | 70 mm
Bolt to Bolt Spacing 4.134 in | 105 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
