SAP202G, Pillow Block Mounted Unit Ball Bearing, 0.591 in Bore (ID), Insert Bearing: SA202G, Housing: P202S, with Locking Collar

Out of stock
SKU: SAP202G
$13.50
Product details
  • Type Mounted Unit Bearings
  • Part Number SAP202G
Description

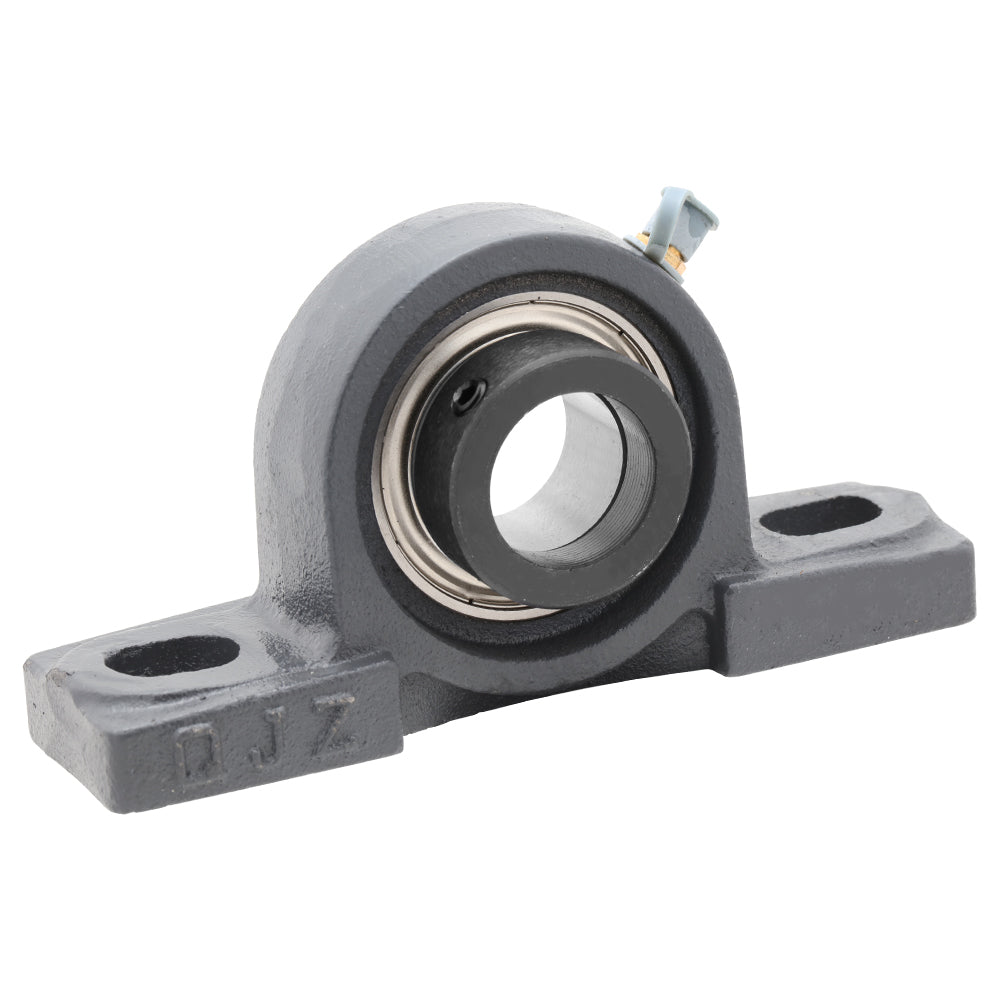

Pillow Block Mounted Unit Ball Bearing: SAP202G

The SA series pillow block mounted ball bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing (SA202G) and a cast iron housing (P202S) with a locking collar, designed for easy installation and long-lasting performance. Includes a relubricatable insert bearing (G) for extended service life.

Model SAP202G

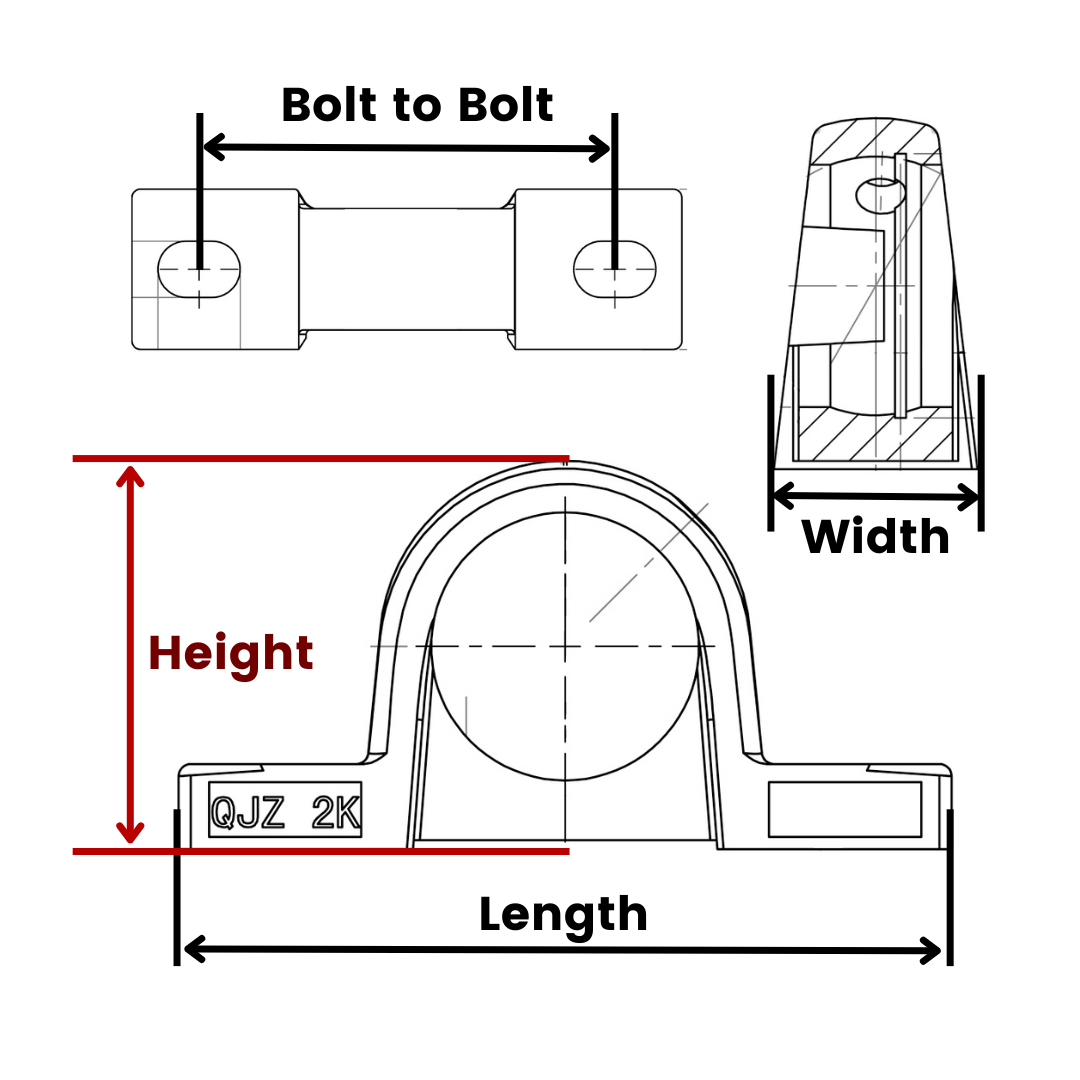

Shaft Bore (ID) 0.591 in | 15 mm
Length 4.921 in | 125 mm
Width 1.26 in | 32 mm
Height (Thickness) 2.244 in | 57 mm
Bolt to Bolt Spacing 3.78 in | 96 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
