SALF207-22G, 2-Bolt Flange Mounted Unit Bearing, 1 3/8 in Bore (ID), Insert Bearing: SALF207-22G, Housing: LF207, with Locking Collar

In stock
SKU: SA207-22G
Material and bore size can be selected below. Dimensions (Bolt to Bolt x Length × Width × Height) remain the same for all options.
$17.99
Product details
  • Part Number SALF207-22G
  • Housing LF207
  • Insert Bearing SALF207-22G
  • Bore (ID) 1.375 in | 34.925 mm
  • Bolt to Bolt 3.937 in | 100 mm
  • Length 4.803 in | 122 mm
  • Width 3.504 in | 89 mm
  • Height 1.709 in | 43.4 mm
Description

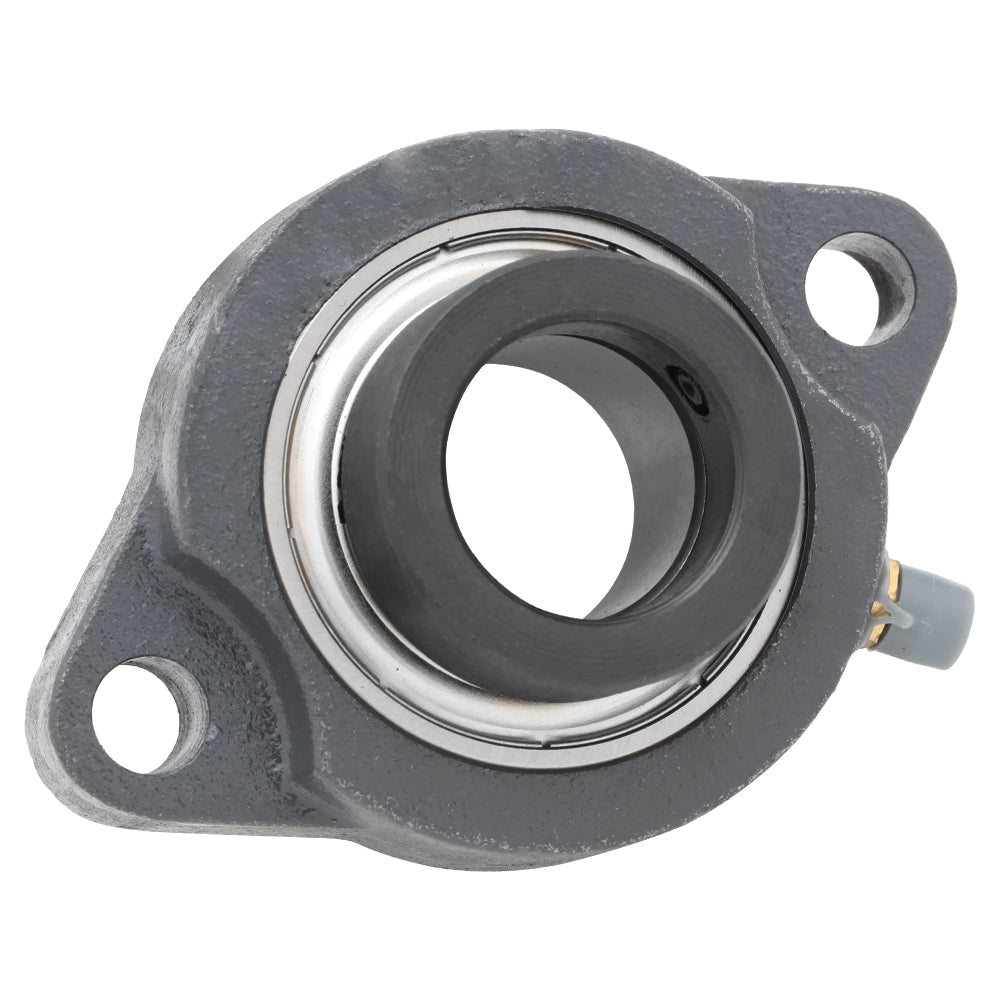

2-Bolt Flange Mounted Unit Ball Bearing

The SA series 2-Bolt Flange mounted ball bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing (SA207-22G) and a cast iron housing (LF207) with a locking collar, designed for easy installation and long-lasting performance. Includes a relubricatable insert bearing (G) for extended service life.

Model SALF207-22G
Shaft Bore (ID) 1.375 in | 34.925 mm
Length 4.803 in | 122 mm
Width 3.504 in | 89 mm
Height (Thickness) 1.709 in | 43.4 mm
Bolt to Bolt Spacing 3.937 in | 100 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
