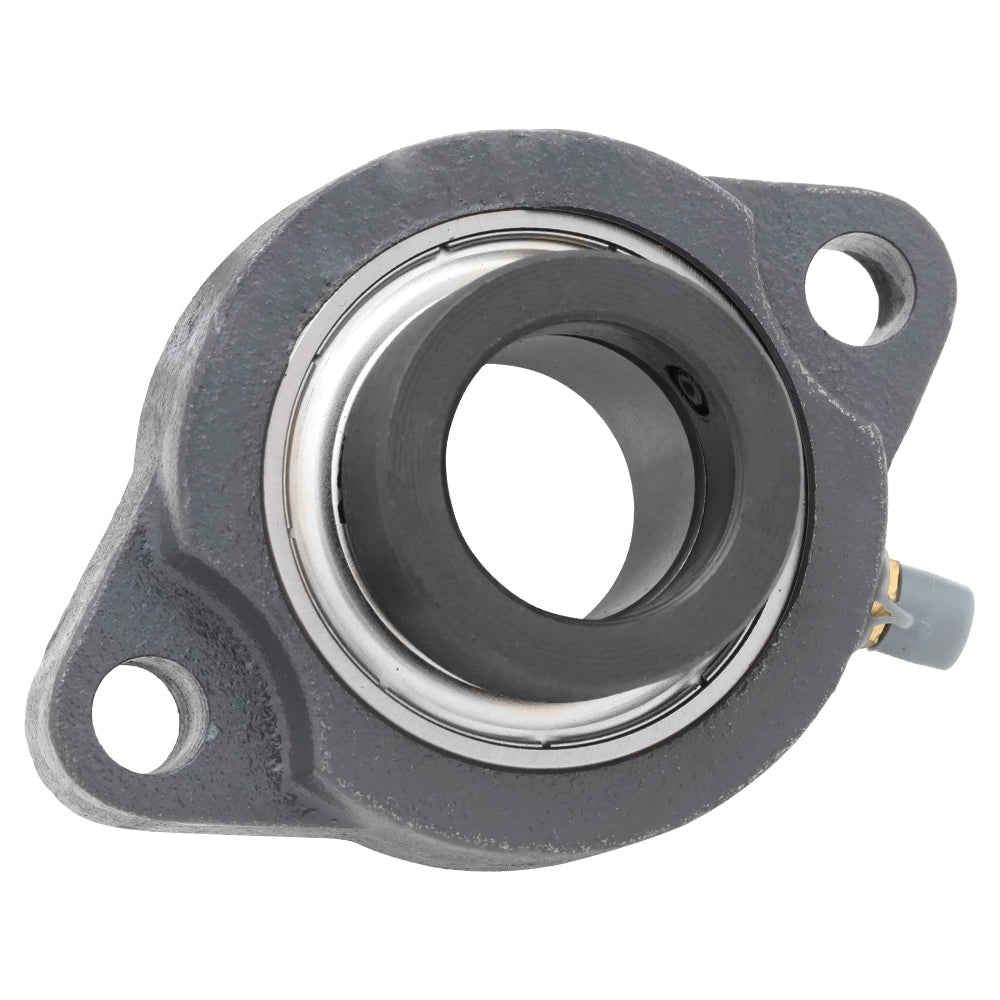

SALF206-18G, 2-Bolt Flange Mounted Unit Bearing, 1 1/8 in Bore (ID), Insert Bearing: SALF206-18G, Housing: LF206, with Locking Collar

In stock
SKU: SA206-18G
Material and bore size can be selected below. Dimensions (Bolt to Bolt x Length × Width × Height) remain the same for all options.
$11.75
Product details
  • Part Number SALF206-18G
  • Housing LF206
  • Insert Bearing SALF206-18G
  • Bore (ID) 1.125 in | 28.575 mm
  • Bolt to Bolt 3.563 in | 90.5 mm
  • Length 4.449 in | 113 mm
  • Width 2.992 in | 76 mm
  • Height 1.563 in | 39.7 mm
Description

2-Bolt Flange Mounted Unit Ball Bearing: SALF206-18G

The SA series 2-Bolt Flange mounted ball bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing (SA206-18G) and a cast iron housing (LF206) with a locking collar, designed for easy installation and long-lasting performance. Includes a relubricatable insert bearing (G) for extended service life.

Model SALF206-18G
Shaft Bore (ID) 1.125 in | 28.575 mm
Length 4.449 in | 113 mm
Width 2.992 in | 76 mm
Height (Thickness) 1.563 in | 39.7 mm
Bolt to Bolt Spacing 3.563 in | 90.5 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
