QJZ

SALF205-14G, 2-Bolt Flange Mounted Unit Bearing, 7/8 in Bore (ID), Insert Bearing: SALF205-14G, Housing: LF205, with Locking Collar

In stock
SKU: SA205-14G
Material and bore size can be selected below. Dimensions (Bolt to Bolt x Length × Width × Height) remain the same for all options.
$10.99
Product details
  • Part Number SALF205-14G
  • Housing LF205
  • Insert Bearing SALF205-14G
  • Bore (ID) 0.875 in | 22.225 mm
  • Bolt to Bolt 2.992 in | 76 mm
  • Length 3.74 in | 95 mm
  • Width 2.52 in | 64 mm
  • Height 1.374 in | 34.9 mm
Description

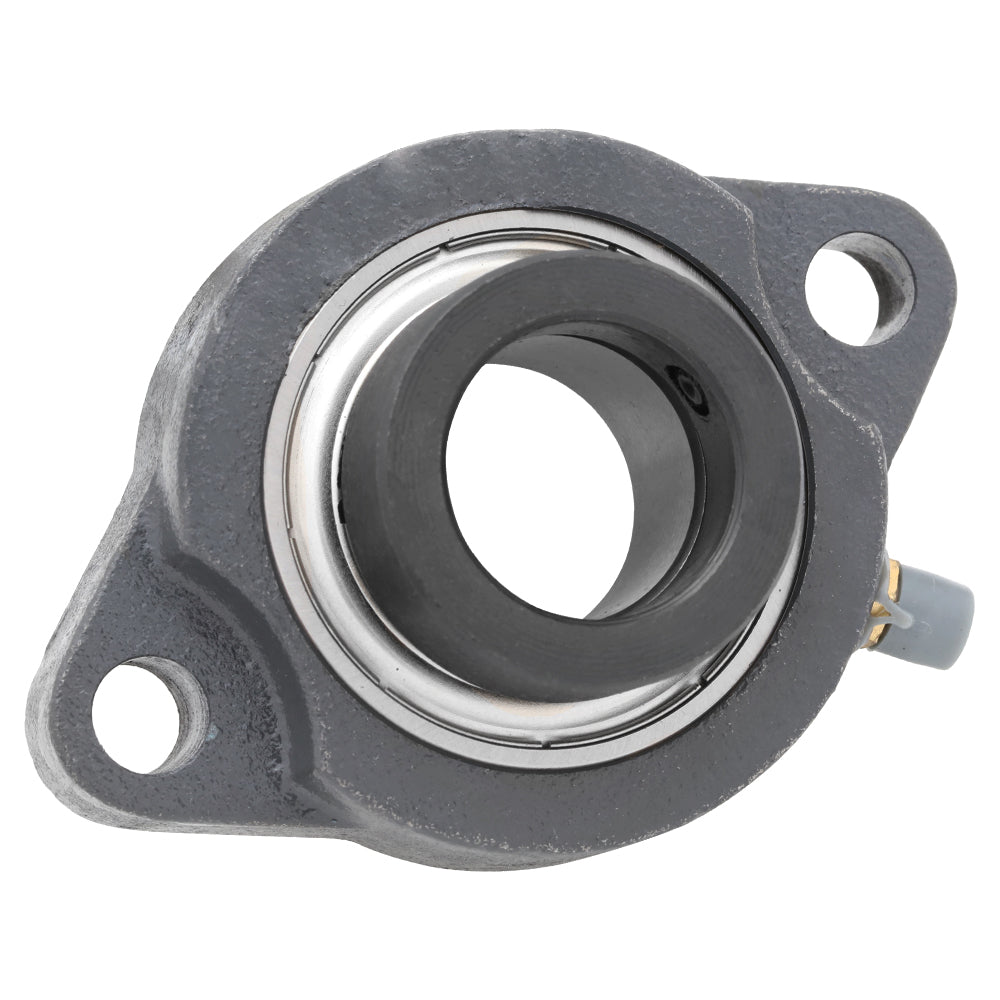

2-Bolt Flange Mounted Unit Ball Bearing: SALF205-14G

The SA series 2-Bolt Flange mounted ball bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing (SA205-14G) and a cast iron housing (LF205) with a locking collar, designed for easy installation and long-lasting performance. Includes a relubricatable insert bearing (G) for extended service life.

Model SALF205-14G
Shaft Bore (ID) 0.875 in | 22.225 mm
Length 3.74 in | 95 mm
Width 2.52 in | 64 mm
Height (Thickness) 1.374 in | 34.9 mm
Bolt to Bolt Spacing 2.992 in | 76 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
