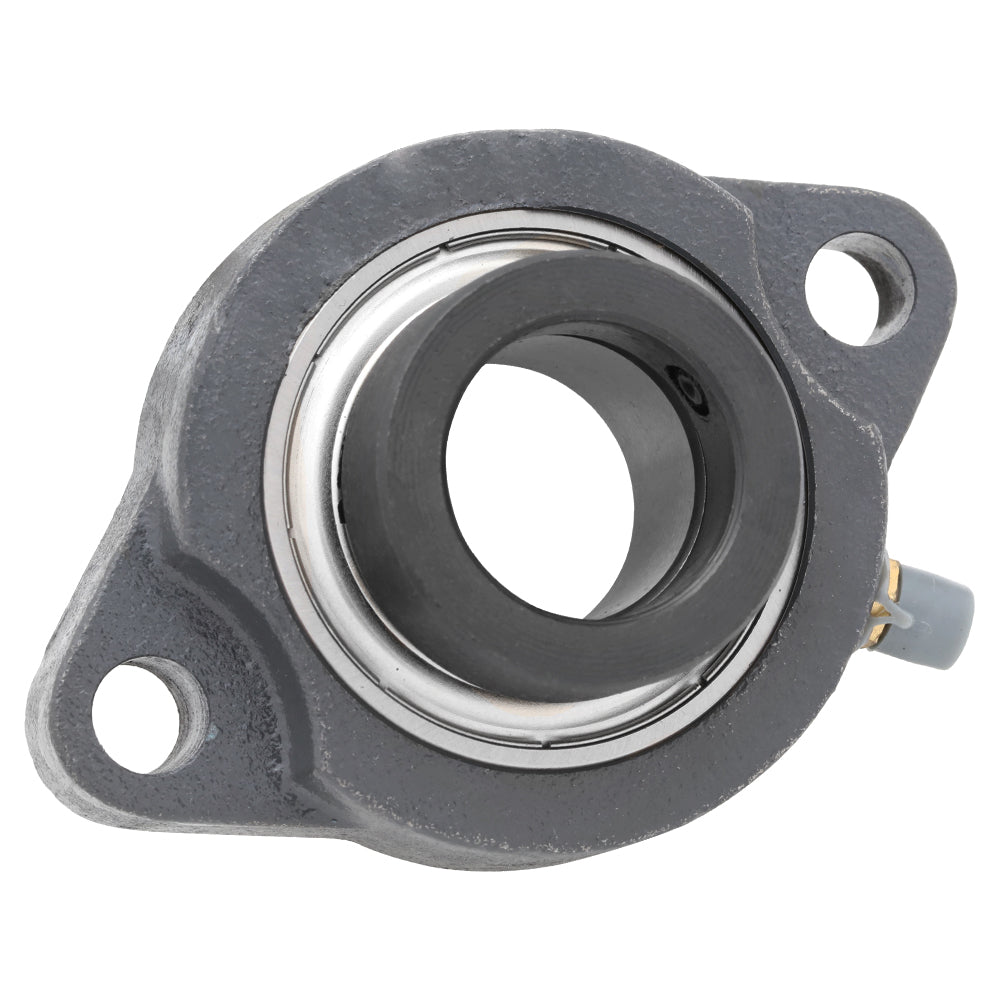

SALF204-12G, 2-Bolt Flange Mounted Unit Bearing, 3/4 in Bore (ID), Insert Bearing: SALF204-12G, Housing: LF204, with Locking Collar

In stock
SKU: SA204-12G
Material and bore size can be selected below. Dimensions (Bolt to Bolt x Length × Width × Height) remain the same for all options.
$10.75
Product details
  • Part Number SALF204-12G
  • Housing LF204
  • Insert Bearing SALF204-12G
  • Bore (ID) 0.75 in | 19.05 mm
  • Bolt to Bolt 2.815 in | 71.5 mm
  • Length 3.543 in | 90 mm
  • Width 2.402 in | 61 mm
  • Height 1.374 in | 34.9 mm
Description

2-Bolt Flange Mounted Unit Ball Bearing: SALF204-12G

The SA series 2-Bolt Flange mounted ball bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing (SA204-12G) and a cast iron housing (LF204) with a locking collar, designed for easy installation and long-lasting performance. Includes a relubricatable insert bearing (G) for extended service life.

Model SALF204-12G
Shaft Bore (ID) 0.75 in | 19.05 mm
Length 3.543 in | 90 mm
Width 2.402 in | 61 mm
Height (Thickness) 1.374 in | 34.9 mm
Bolt to Bolt Spacing 2.815 in | 71.5 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
