SALF203G, 2-Bolt Flange Mounted Unit Bearing, 0.669 in Bore (ID), Insert Bearing: SALF203G, Housing: LF203, with Locking Collar

Out of stock
SKU: SA203G
Material and bore size can be selected below. Dimensions (Bolt to Bolt x Length × Width × Height) remain the same for all options.
$6.99
Product details
  • Part Number SALF203G
  • Housing LF203
  • Insert Bearing SALF203G

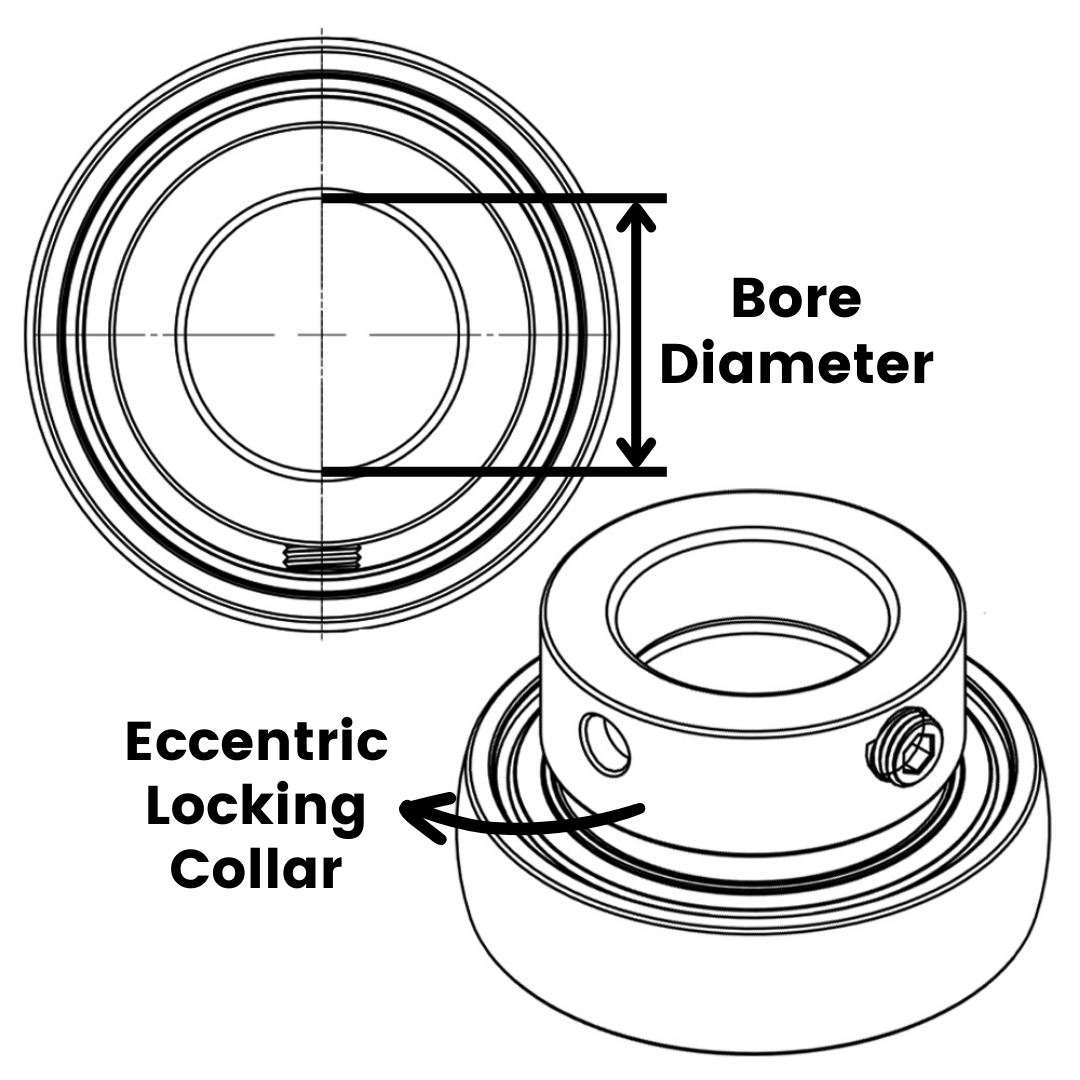

  • Bore (ID) 0.669 in | 17 mm

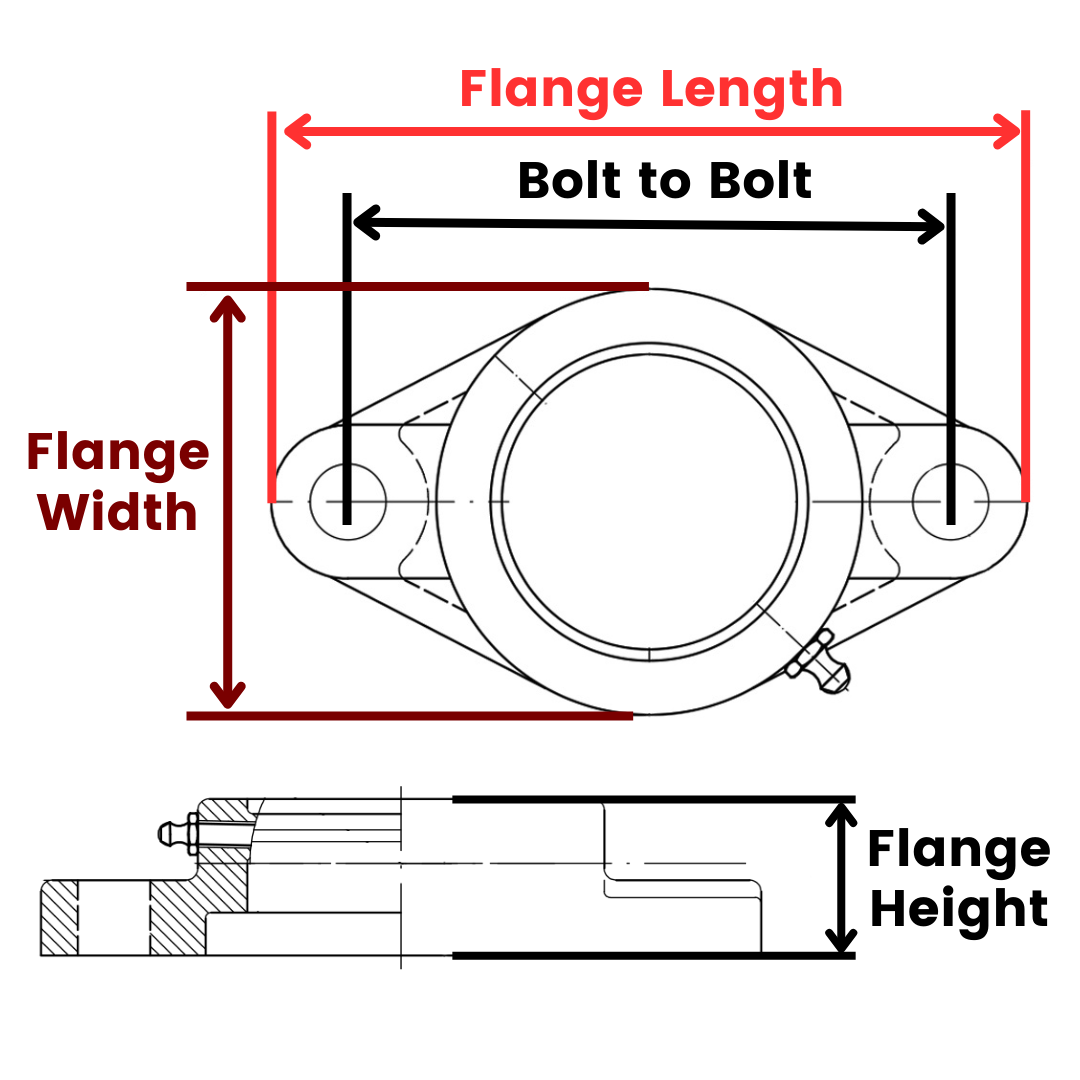

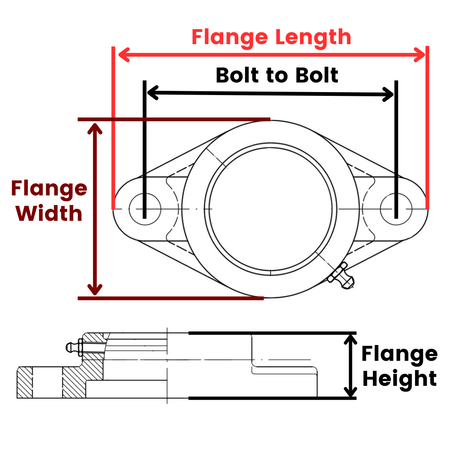

  • Bolt to Bolt 2.5 in | 63.5 mm
  • Length 3.189 in | 81 mm
  • Width 2.205 in | 56 mm
  • Height 1.264 in | 32.1 mm
Description

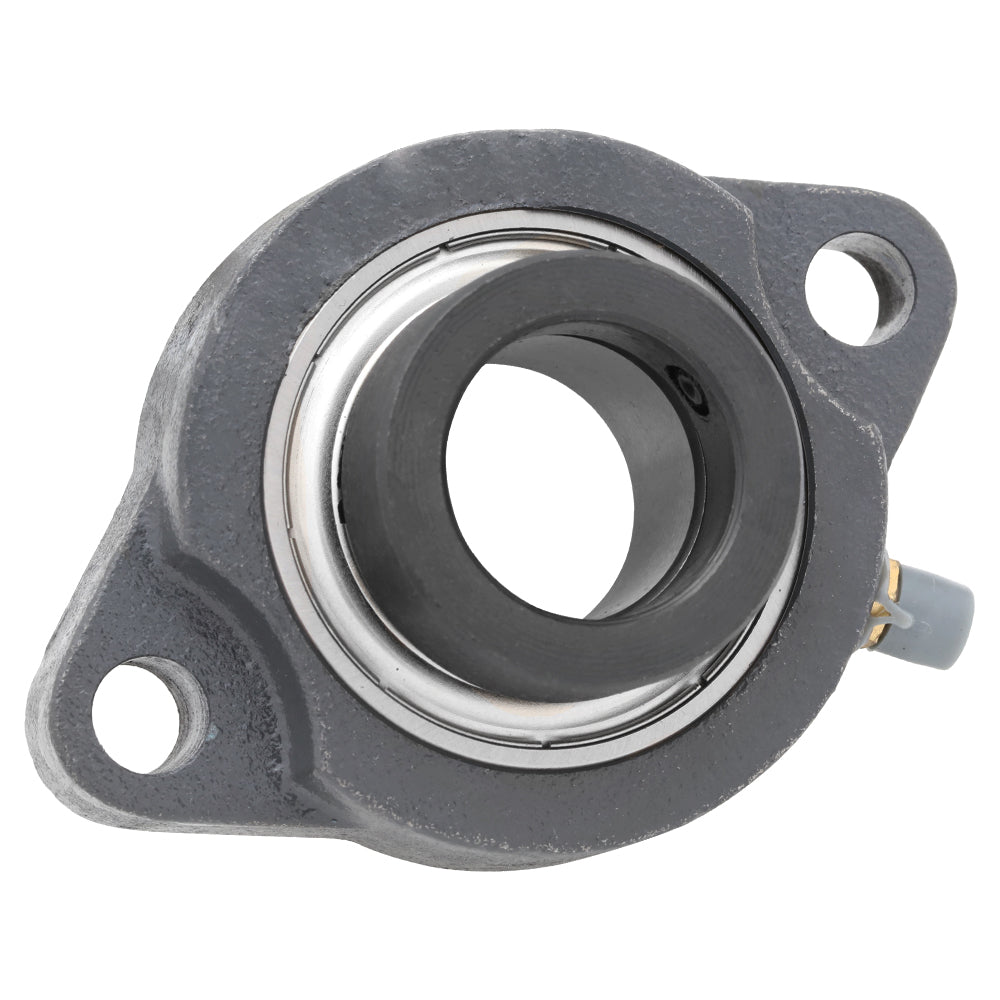

2-Bolt Flange Mounted Unit Ball Bearing: SALF203G

The SA series 2-Bolt Flange mounted ball bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing (SA203G) and a cast iron housing (LF203) with a locking collar, designed for easy installation and long-lasting performance. Includes a relubricatable insert bearing (G) for extended service life.

Model SALF203G
Shaft Bore (ID) 0.669 in | 17 mm
Length 3.189 in | 81 mm
Width 2.205 in | 56 mm
Height (Thickness) 1.264 in | 32.1 mm
Bolt to Bolt Spacing 2.5 in | 63.5 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
