SAFL210, 2-Bolt Flange Mounted Ball Bearing, 1.969 in Bore (ID), Insert Bearing: SA210, Housing: FL210, with Locking Collar

Out of stock
SKU: SAFL210
Material and bore size can be selected below. Dimensions (Bolt to Bolt x Length × Width × Height) remain the same for all options.
$45.50
Product details
  • Part Number SAFL210
  • Housing FL210
  • Insert Bearing SA210
  • Bore (ID) 1.969 in | 50 mm
  • Bolt to Bolt 6.181 in | 157 mm
  • Length 7.756 in | 197 mm
  • Width 4.528 in | 115 mm
  • Height 2.193 in | 55.7 mm
Description

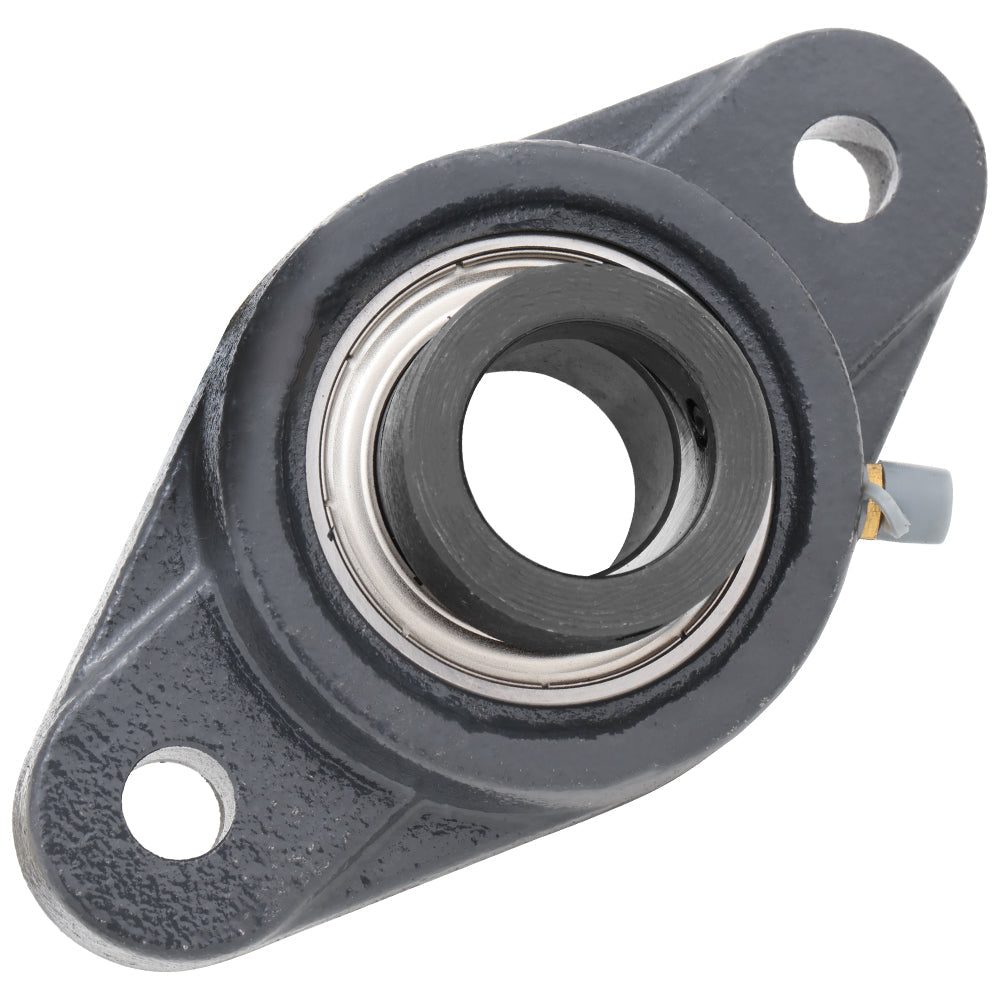

2-bolt flanged Mounted Unit Ball Bearing: SAFL210

The SA series 2-bolt flanged mounted ball bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing (SA210) and a cast iron housing (FL210) with a locking collar, designed for easy installation and long-lasting performance.

Model SAFL210
Shaft Bore (ID) 1.969 in | 50 mm
Length 7.756 in | 197 mm
Width 4.528 in | 115 mm
Height (Thickness) 2.193 in | 55.7 mm
Bolt to Bolt Spacing 6.181 in | 157 mm
Bolt Used M16

Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
