SAFL209-27, 2-Bolt Flange Mounted Ball Bearing, 1 11/16 in Bore (ID), Insert Bearing: SA209-27, Housing: FL209, with Locking Collar

Out of stock
SKU: SAFL209-27
Material and bore size can be selected below. Dimensions (Bolt to Bolt x Length × Width × Height) remain the same for all options.
$35.50
Product details
  • Part Number SAFL209-27
  • Housing FL209
  • Insert Bearing SA209-27
  • Bore (ID) 1.688 in | 42.863 mm
  • Bolt to Bolt 5.827 in | 148 mm
  • Length 7.402 in | 188 mm
  • Width 4.252 in | 108 mm
  • Height 2.213 in | 56.2 mm
Description

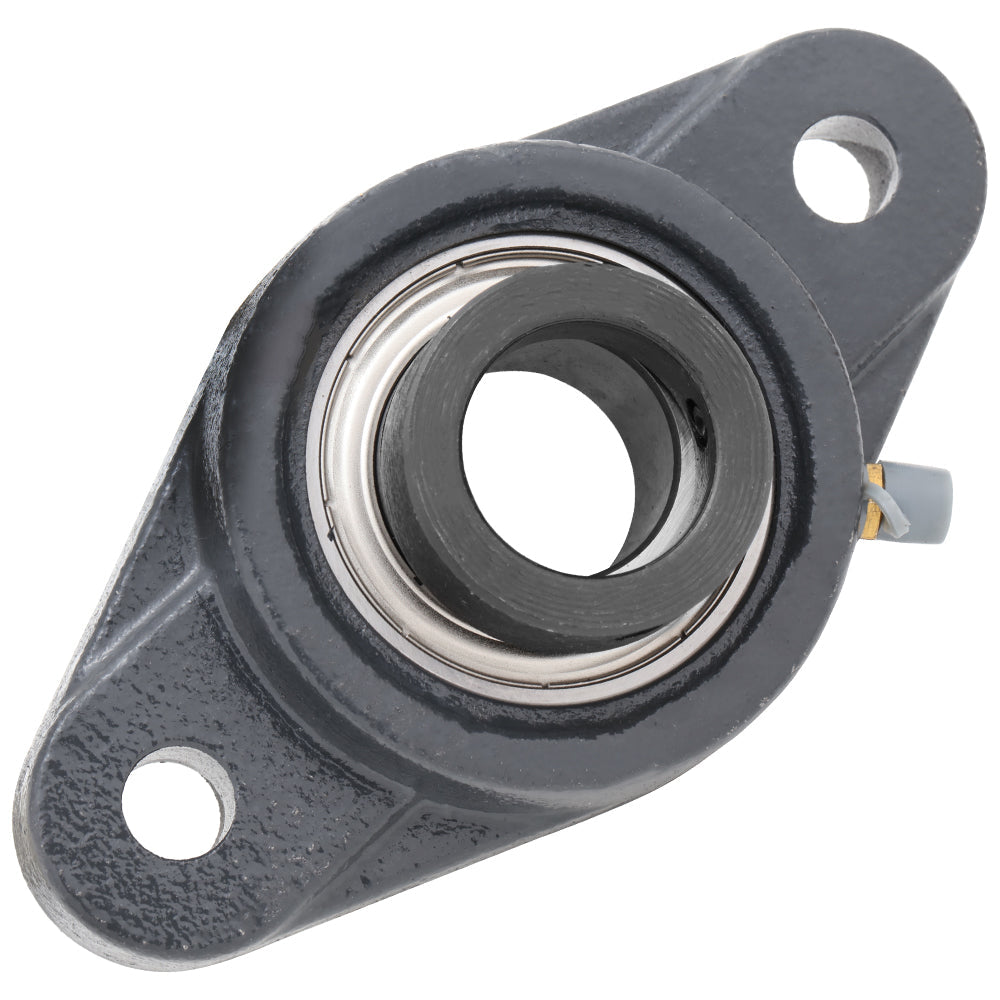

2-bolt flanged Mounted Unit Ball Bearing: SAFL209-27

The SA series 2-bolt flanged mounted ball bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing (SA209-27) and a cast iron housing (FL209) with a locking collar, designed for easy installation and long-lasting performance.

Model SAFL209-27
Shaft Bore (ID) 1.6875 in | 42.863 mm
Length 7.402 in | 188 mm
Width 4.252 in | 108 mm
Height (Thickness) 2.213 in | 56.2 mm
Bolt to Bolt Spacing 5.827 in | 148 mm
Bolt Used M16

Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
