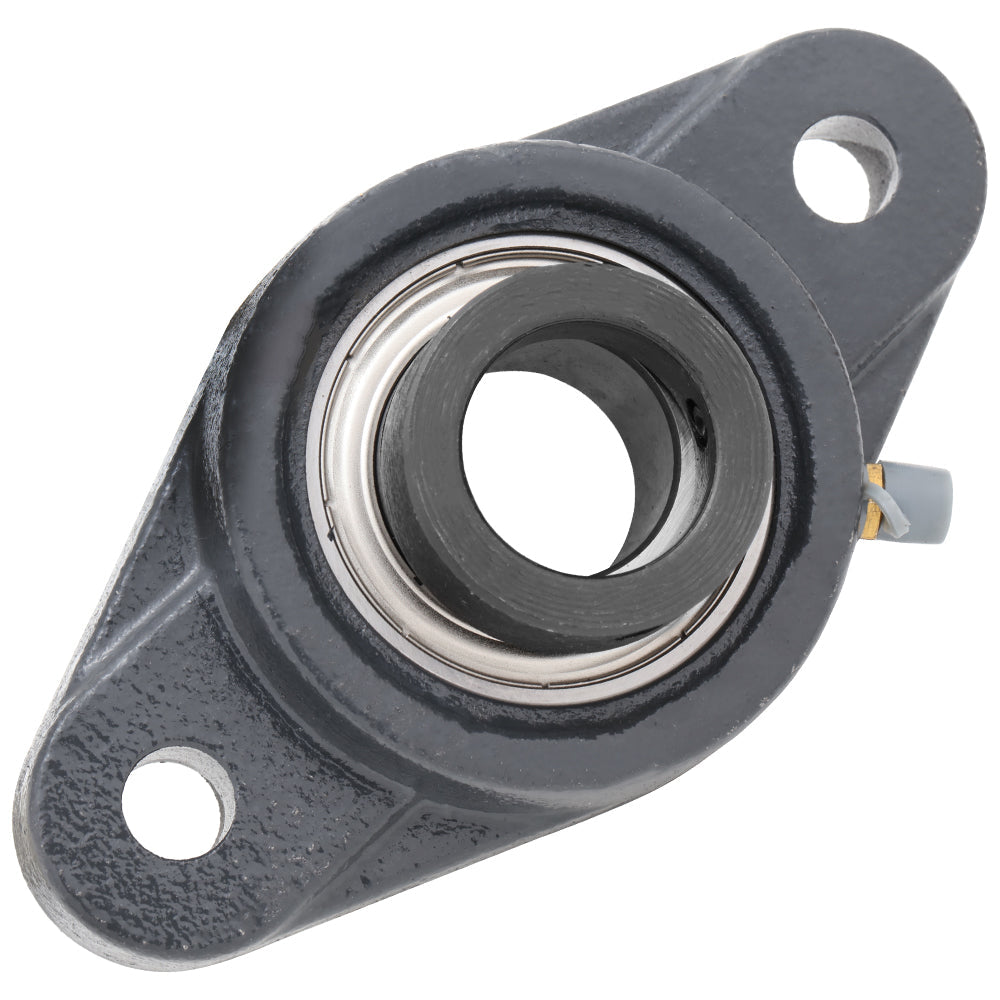

SAFL208-24, 2-Bolt Flange Mounted Ball Bearing, 1 1/2 in Bore (ID), Insert Bearing: SA208-24, Housing: FL208, with Locking Collar

Out of stock
SKU: SAFL208-24
Material and bore size can be selected below. Dimensions (Bolt to Bolt x Length × Width × Height) remain the same for all options.
$29.99
Product details
  • Part Number SAFL208-24
  • Housing FL208
  • Insert Bearing SA208-24
  • Bore (ID) 1.5 in | 38.1 mm
  • Bolt to Bolt 5.669 in | 144 mm
  • Length 6.89 in | 175 mm
  • Width 3.937 in | 100 mm
  • Height 2.193 in | 55.7 mm
Description

2-bolt flanged Mounted Unit Ball Bearing: SAFL208-24

The SA series 2-bolt flanged mounted ball bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing (SA208-24) and a cast iron housing (FL208) with a locking collar, designed for easy installation and long-lasting performance.

Model SAFL208-24
Shaft Bore (ID) 1.5 in | 38.1 mm
Length 6.89 in | 175 mm
Width 3.937 in | 100 mm
Height (Thickness) 2.193 in | 55.7 mm
Bolt to Bolt Spacing 5.669 in | 144 mm
Bolt Used M12

Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
