SAFL207-23, 2-Bolt Flange Mounted Ball Bearing, 1 7/16 in Bore (ID), Insert Bearing: SA207-23, Housing: FL207, with Locking Collar

Out of stock
SKU: SAFL207-23
Material and bore size can be selected below. Dimensions (Bolt to Bolt x Length × Width × Height) remain the same for all options.
$26.50
Product details
  • Part Number SAFL207-23
  • Housing FL207
  • Insert Bearing SA207-23
  • Bore (ID) 1.438 in | 36.513 mm
  • Bolt to Bolt 5.118 in | 130 mm
  • Length 6.339 in | 161 mm
  • Width 3.543 in | 90 mm
  • Height 1.945 in | 49.4 mm
Description

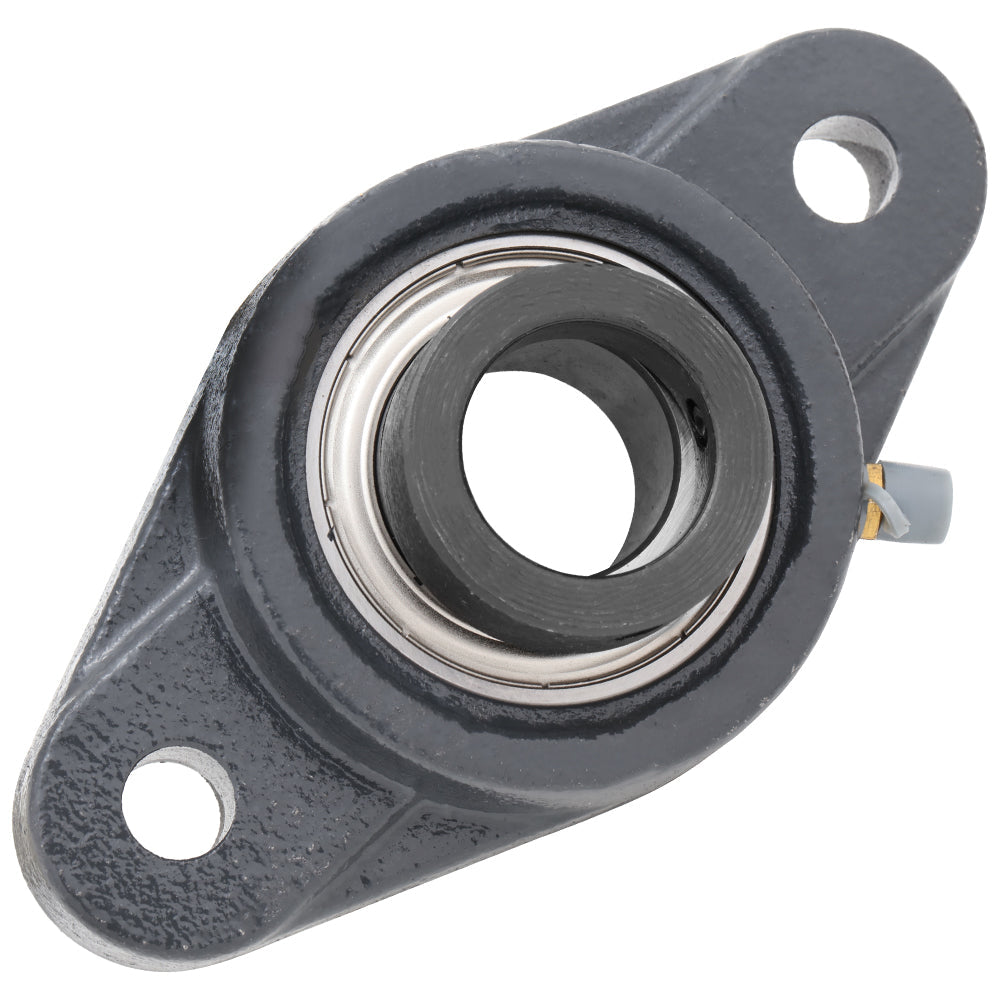

2-bolt flanged Mounted Unit Ball Bearing: SAFL207-23

The SA series 2-bolt flanged mounted ball bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing (SA207-23) and a cast iron housing (FL207) with a locking collar, designed for easy installation and long-lasting performance.

Model SAFL207-23
Shaft Bore (ID) 1.4375 in | 36.513 mm
Length 6.339 in | 161 mm
Width 3.543 in | 90 mm
Height (Thickness) 1.945 in | 49.4 mm
Bolt to Bolt Spacing 5.118 in | 130 mm
Bolt Used M12

Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
