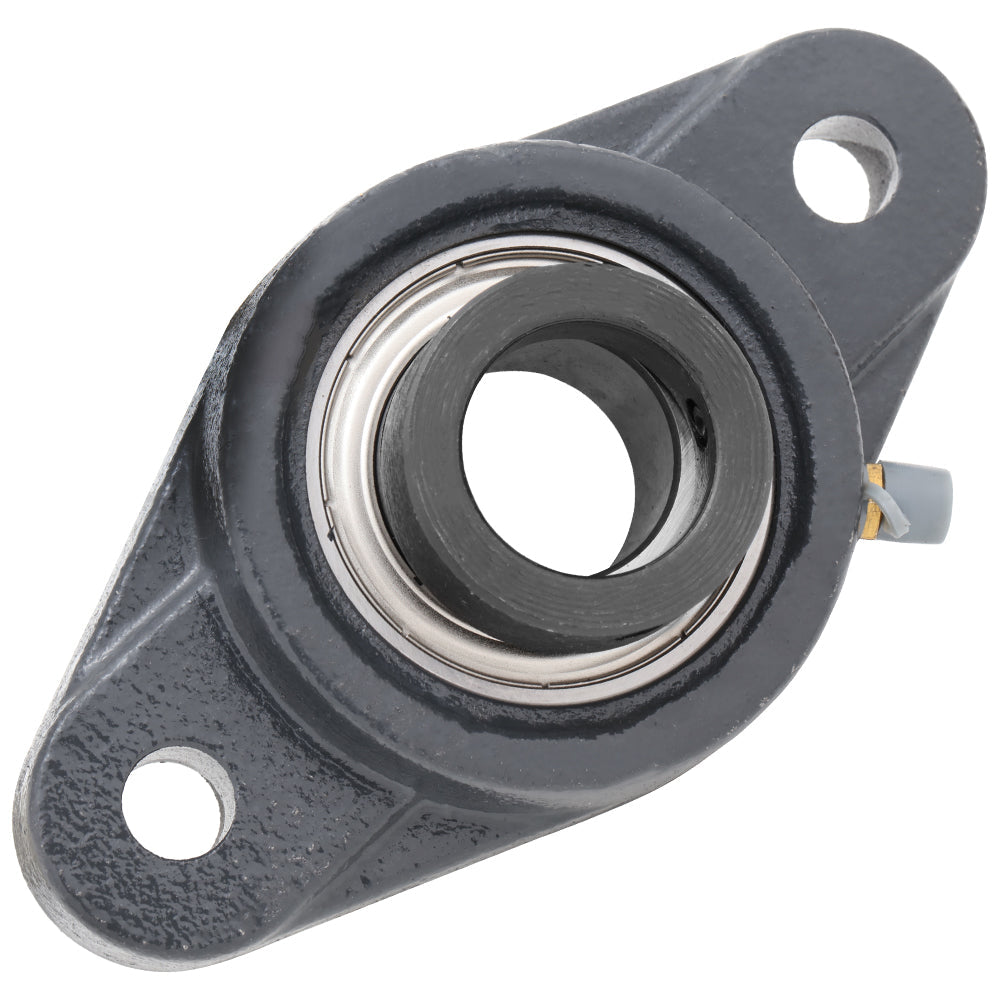

SAFL206-20, 2-Bolt Flange Mounted Ball Bearing, 1 1/4 in Bore (ID), Insert Bearing: SA206-20, Housing: FL206, with Locking Collar

Out of stock
SKU: SAFL206-20
Material and bore size can be selected below. Dimensions (Bolt to Bolt x Length × Width × Height) remain the same for all options.
$17.50
Product details
  • Part Number SAFL206-20
  • Housing FL206
  • Insert Bearing SA206-20
  • Bore (ID) 1.25 in | 31.75 mm
  • Bolt to Bolt 4.606 in | 117 mm
  • Length 5.827 in | 148 mm
  • Width 3.15 in | 80 mm
  • Height 1.799 in | 45.7 mm
Description

2-bolt flanged Mounted Unit Ball Bearing: SAFL206-20

The SA series 2-bolt flanged mounted ball bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing (SA206-20) and a cast iron housing (FL206) with a locking collar, designed for easy installation and long-lasting performance.

Model SAFL206-20
Shaft Bore (ID) 1.25 in | 31.75 mm
Length 5.827 in | 148 mm
Width 3.15 in | 80 mm
Height (Thickness) 1.799 in | 45.7 mm
Bolt to Bolt Spacing 4.606 in | 117 mm
Bolt Used M10


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
