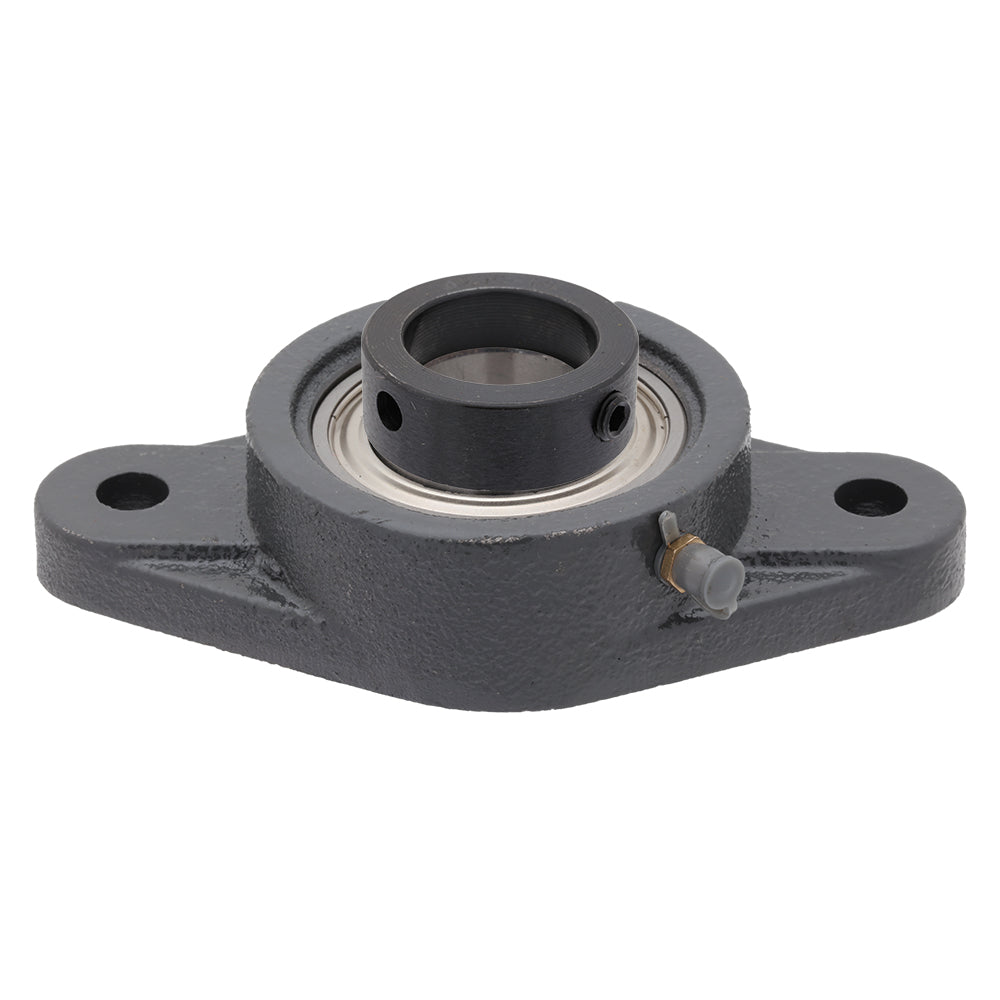

SAFL206-19, 2-Bolt Flange Mounted Ball Bearing, 1 3/16 in Bore (ID), Insert Bearing: SA206-19, Housing: FL206, with Locking Collar

Out of stock
SKU: SAFL206-19
Material and bore size can be selected below. Dimensions (Bolt to Bolt x Length × Width × Height) remain the same for all options.
$19.99
Product details
  • Part Number SAFL206-19
  • Housing FL206
  • Insert Bearing SA206-19
  • Bore (ID) 1.188 in | 30.163 mm
  • Bolt to Bolt 4.606 in | 117 mm
  • Length 5.827 in | 148 mm
  • Width 3.15 in | 80 mm
  • Height 1.799 in | 45.7 mm
Description

2-bolt flanged Mounted Unit Ball Bearing: SAFL206-19

The SA series 2-bolt flanged mounted ball bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing (SA206-19) and a cast iron housing (FL206) with a locking collar, designed for easy installation and long-lasting performance.

Model SAFL206-19
Shaft Bore (ID) 1.1875 in | 30.163 mm
Length 5.827 in | 148 mm
Width 3.15 in | 80 mm
Height (Thickness) 1.799 in | 45.7 mm
Bolt to Bolt Spacing 4.606 in | 117 mm
Bolt Used M10

Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
