SAFL205-14, 2-Bolt Flange Mounted Ball Bearing, 7/8 in Bore (ID), Insert Bearing: SA205-14, Housing: FL205, with Locking Collar

Out of stock
SKU: SAFL205-14
Material and bore size can be selected below. Dimensions (Bolt to Bolt x Length × Width × Height) remain the same for all options.
$14.95
Product details
  • Part Number SAFL205-14
  • Housing FL205
  • Insert Bearing SA205-14
  • Bore (ID) 0.875 in | 22.225 mm
  • Bolt to Bolt 3.898 in | 99 mm
  • Length 5.118 in | 130 mm
  • Width 2.677 in | 68 mm
  • Height 1.551 in | 39.4 mm
Description

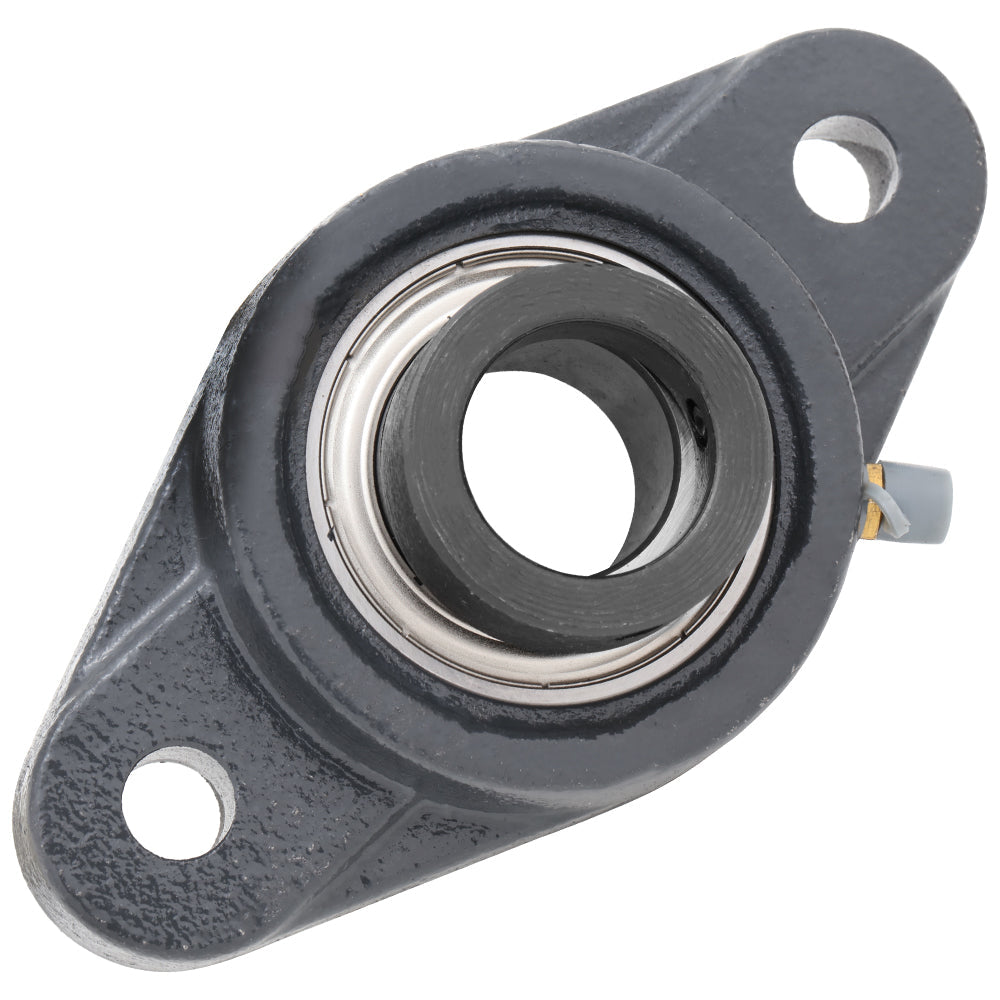

2-bolt flanged Mounted Unit Ball Bearing: SAFL205-14

The SA series 2-bolt flanged mounted ball bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing (SA205-14) and a cast iron housing (FL205) with a locking collar, designed for easy installation and long-lasting performance.

Model SAFL205-14
Shaft Bore (ID) 0.875 in | 22.225 mm
Length 5.118 in | 130 mm
Width 2.677 in | 68 mm
Height (Thickness) 1.551 in | 39.4 mm
Bolt to Bolt Spacing 3.898 in | 99 mm
Bolt Used M10

Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
