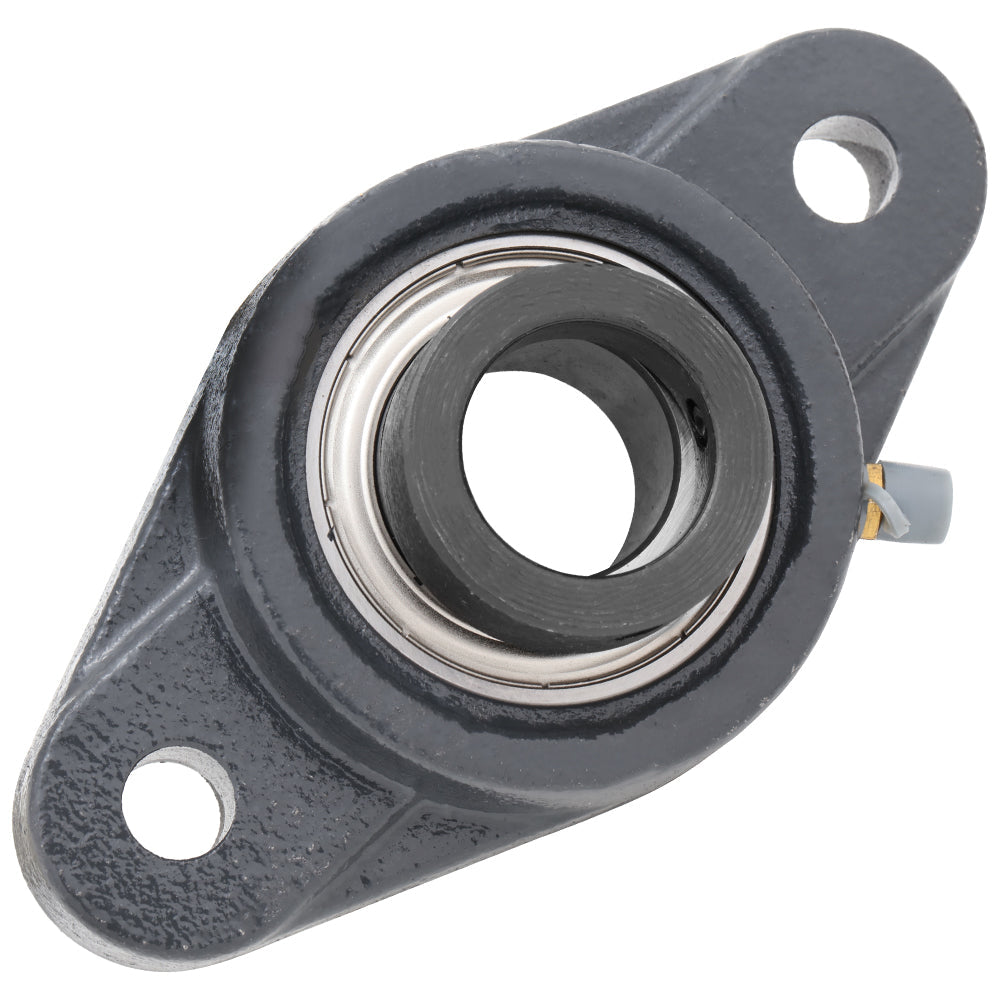

SAFL205, 2-Bolt Flange Mounted Ball Bearing, 0.984 in Bore (ID), Insert Bearing: SA205, Housing: FL205, with Locking Collar

Out of stock
SKU: SAFL205
All of our mounted unit bearings are provided fully assembled. Should you require to receive insert bearing and housing separately, please contact us for assistance.
$12.75

Product details

    • Part Number SAFL205
    • Bore (ID) 0.984 in | 25 mm
    • Length 5.118 in | 130 mm
    • Width 2.677 in | 68 mm
    • Height 1.551 in | 39.4 mm
Description

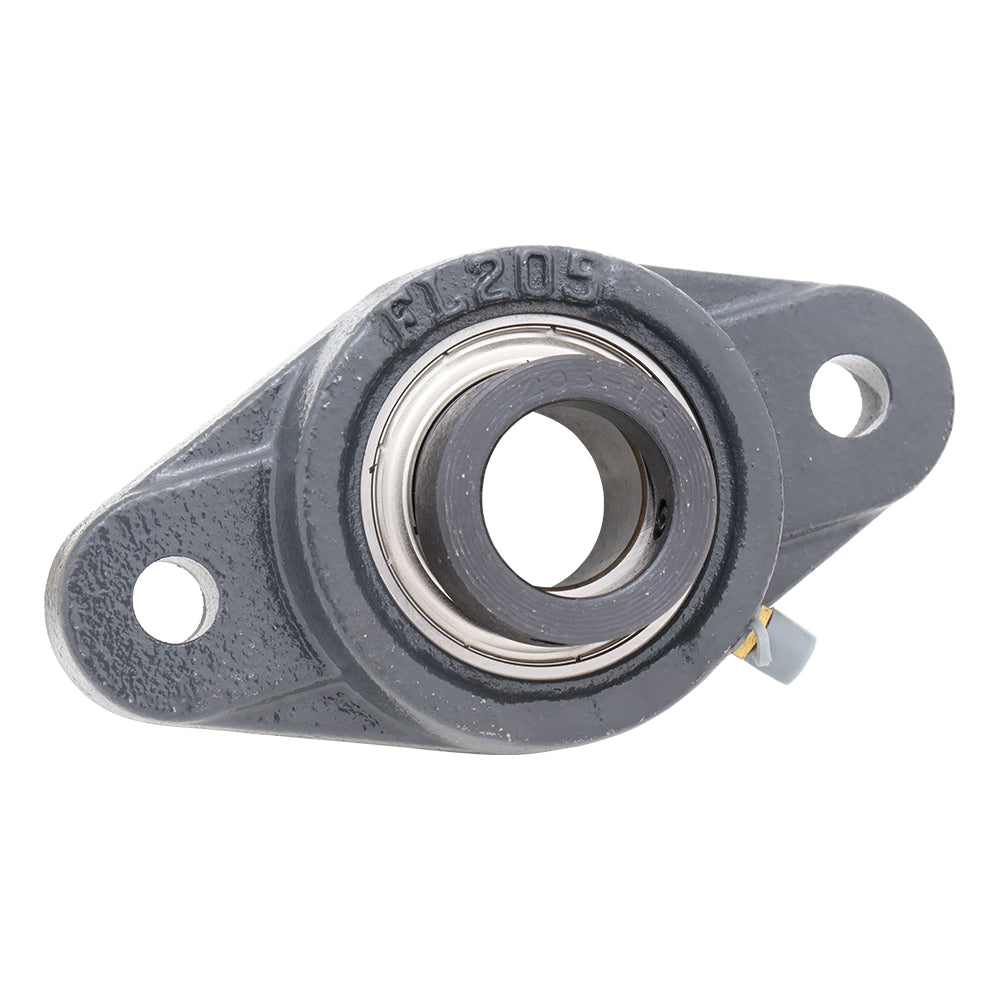

2-Bolt ange Mounted Unit Ball Bearing: SAFL205

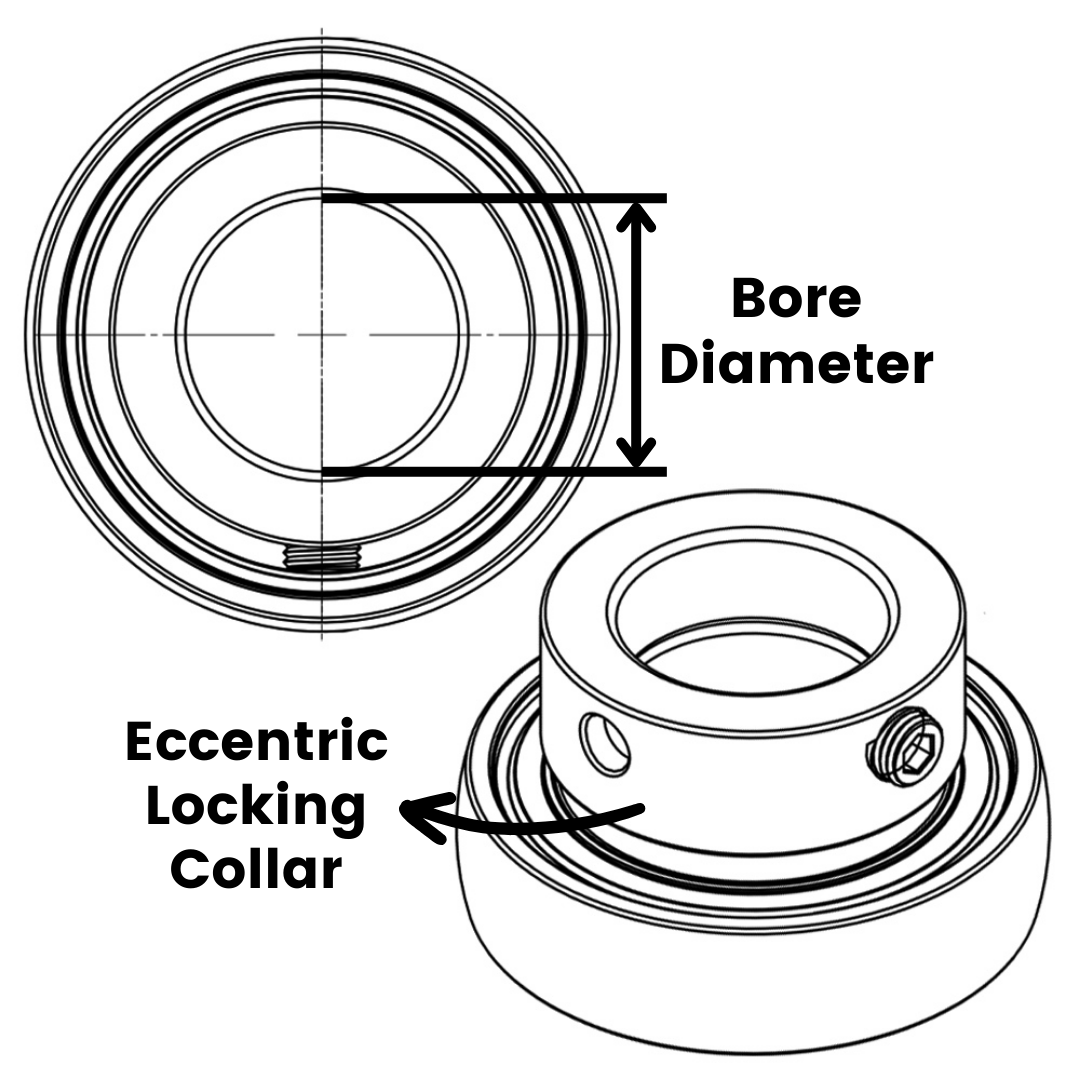

The SA series 2-bolt ange mounted ball bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing (SA205) and a cast iron housing (FL205) with a locking collar, designed for easy installation and long-lasting performance.

Model SAFL205
Shaft Bore (ID) 0.984 in | 25 mm
Length 5.118 in | 130 mm
Width 2.677 in | 68 mm
Height (Thickness) 1.551 in | 39.4 mm
Bolt to Bolt Spacing 3.898 in | 99 mm
Bolt Used M10


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
