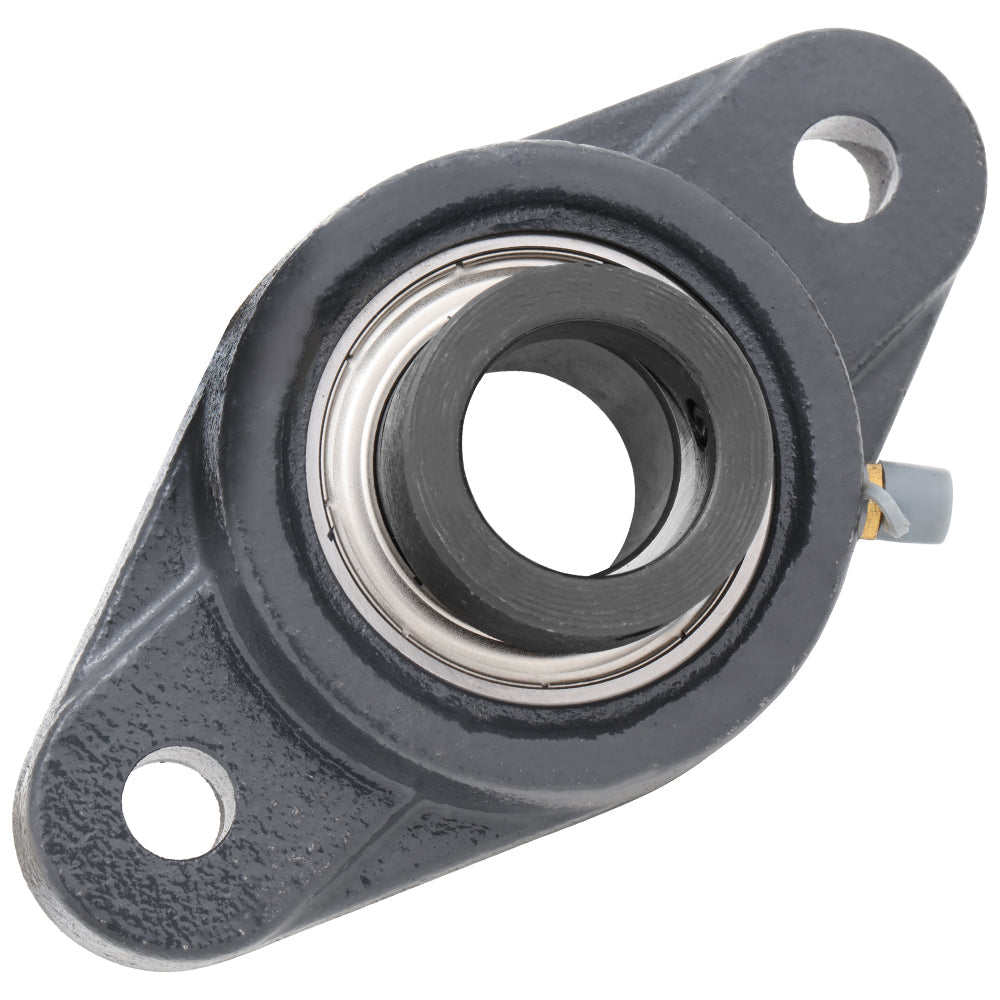

SAFL204, 2-Bolt Flange Mounted Ball Bearing, 0.787 in Bore (ID), Insert Bearing: SA204, Housing: FL204, with Locking Collar

Out of stock
SKU: SAFL204
Material and bore size can be selected below. Dimensions (Bolt to Bolt x Length × Width × Height) remain the same for all options.
$14.50
Product details
  • Part Number SAFL204
  • Housing FL204
  • Insert Bearing SA204
  • Bore (ID) 0.787 in | 20 mm
  • Bolt to Bolt 3.543 in | 90 mm
  • Length 4.449 in | 113 mm
  • Width 2.362 in | 60 mm
  • Height 1.531 in | 38.9 mm
Description

2-bolt flanged Mounted Unit Ball Bearing: SAFL204-12

The SA series 2-bolt flanged mounted ball bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing (SA204-12) and a cast iron housing (FL204) with a locking collar, designed for easy installation and long-lasting performance.

Model SAFL204-12
Shaft Bore (ID) 0.75 in | 19.05 mm
Length 4.449 in | 113 mm
Width 2.362 in | 60 mm
Height (Thickness) 1.531 in | 38.9 mm
Bolt to Bolt Spacing 3.543 in | 90 mm
Bolt Used M10


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
