SAFL203-11, 2-Bolt Flange Mounted Ball Bearing, 11/16 in Bore (ID), Insert Bearing: SA203-11, Housing: FL203, with Locking Collar

Out of stock
SKU: SAFL203-11
Material and bore size can be selected below. Dimensions (Bolt to Bolt x Length × Width × Height) remain the same for all options.
$15.25
Product details
  • Part Number SAFL203-11
  • Housing FL203
  • Insert Bearing SA203-11
  • Bore (ID) 0.688 in | 17.463 mm
  • Bolt to Bolt 3.012 in | 76.5 mm
  • Length 3.898 in | 99 mm
  • Width 2.244 in | 57 mm
  • Height 1.48 in | 37.6 mm
Description

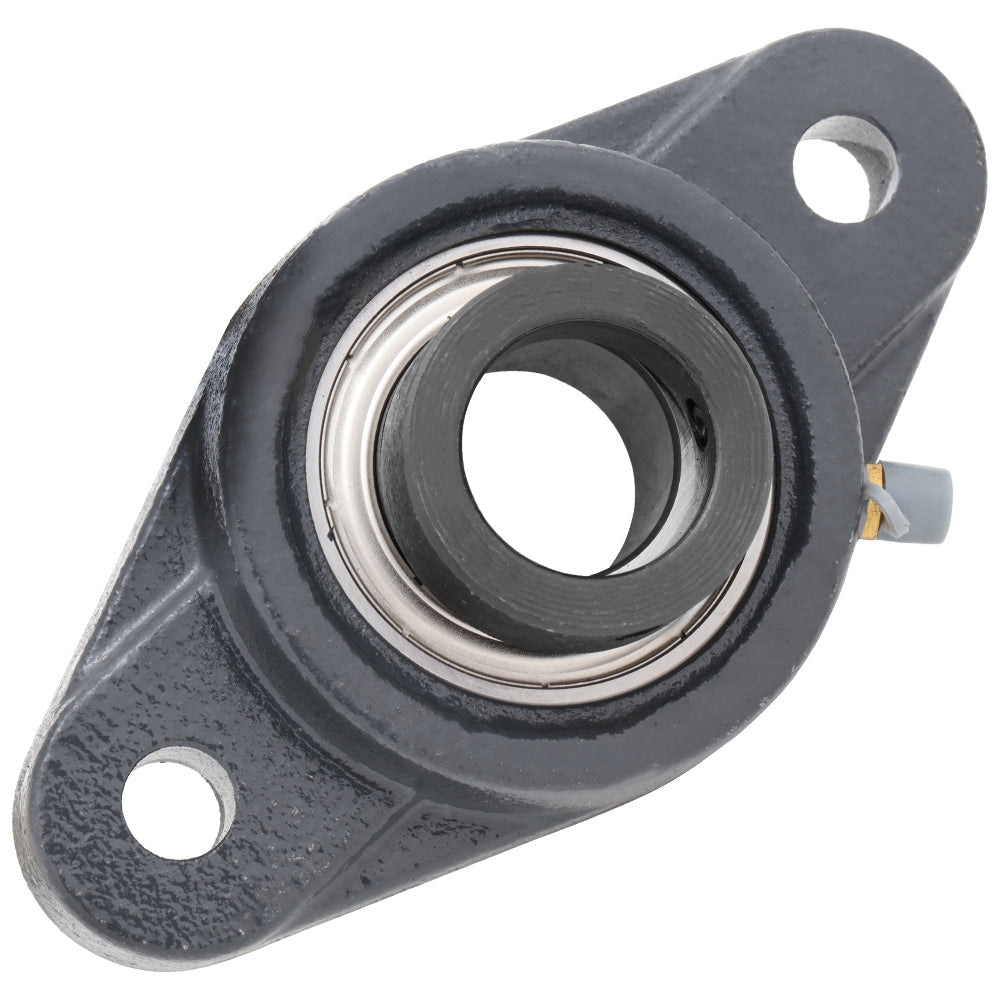

2-bolt flanged Mounted Unit Ball Bearing: SAFL203-11

The SA series 2-bolt flanged mounted ball bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing (SA203-11) and a cast iron housing (FL203) with a locking collar, designed for easy installation and long-lasting performance.

Model SAFL203-11
Shaft Bore (ID) 0.6875 in | 17.463 mm
Length 3.898 in | 99 mm
Width 2.244 in | 57 mm
Height (Thickness) 1.48 in | 37.6 mm
Bolt to Bolt Spacing 3.012 in | 76.5 mm
Bolt Used M10


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
