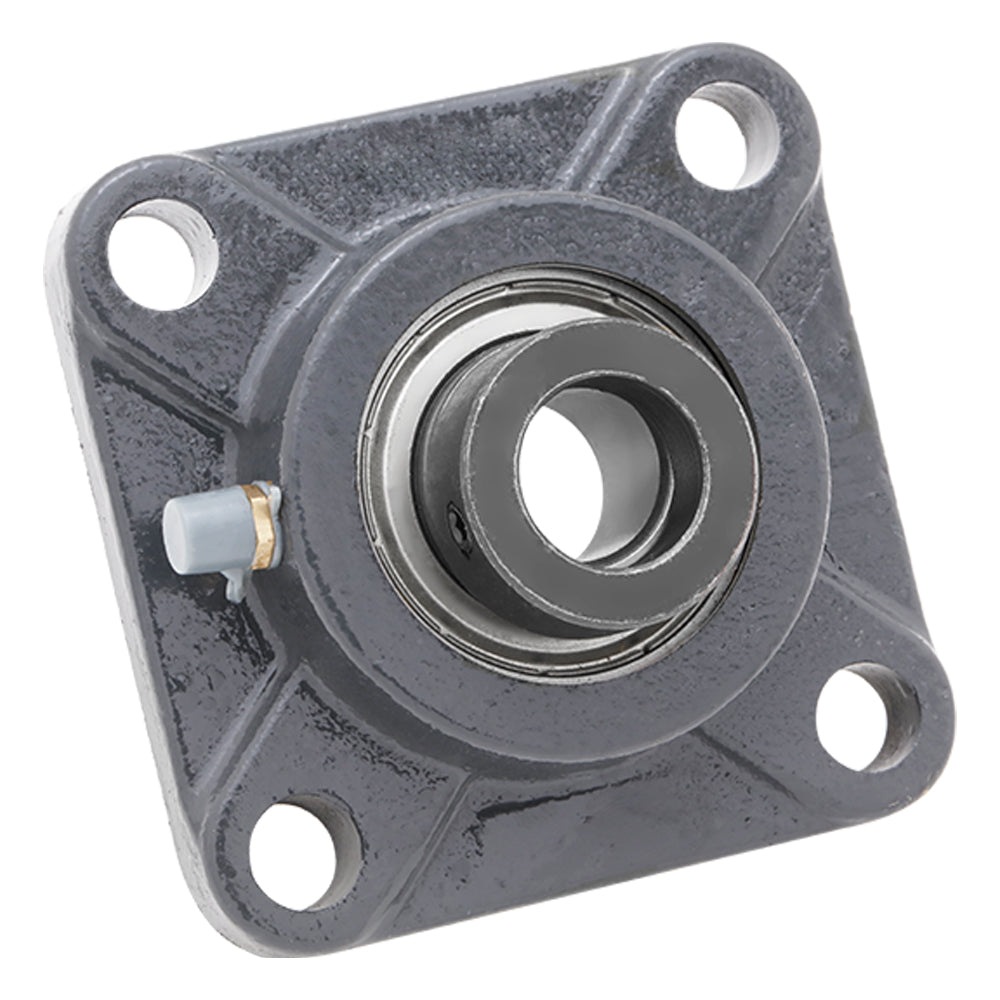

SAF211-34, 4-Bolt Flange Mounted Ball Bearing, 2 1/8 in Bore (ID), Insert Bearing: SA211-34, Housing: F211, with Locking Collar

Out of stock
SKU: SAF211-34
All of our mounted unit bearings are supplied fully assembled. Please contact us if you require a specific dimension that is not listed.
$49.99

Product details

  • Type Mounted Unit Bearings
    • Part Number SAF211-34
    • Insert Bearing SA211-34
    • Housing F211
    • Bore (ID) 2.13 in
    • Flange Length 6.378 in | 162 mm
    • Flange Height (Thickness) 2.417 in | 61.4 mm
    • Bolt-to-Bolt Spacing 5.118 in | 130 mm
Description

4-Bolt Flange Mounted Unit Ball Bearing: SAF211-34

The SAF series 4-bolt flange mounted ball bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing (SA211-34) and a cast iron housing (F211) with a locking collar, designed for easy installation and long-lasting performance.

Model SAF211-34
Shaft Bore (ID) 2.125 | 53.975 mm
Overall Flange Width 6.378 in | 162 mm
Flange Height (Thickness) 2.417 in | 61.4 mm
Bolt to Bolt Spacing 5.118 in | 130 mm
Bolt Size M16

Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
