SAF210-30, 4-Bolt Flange Mounted Ball Bearing, 1 7/8 in Bore (ID), Insert Bearing: SA210-30, Housing: F210, with Locking Collar

Only 2 left
SKU: SAF210-30
All of our mounted unit bearings are supplied fully assembled. Please contact us if you require a specific dimension that is not listed.
$45.50

Product details

  • Type Mounted Unit Bearings
    • Part Number SAF210-30
    • Insert Bearing SA210-30
    • Housing F210
    • Bore (ID) 1.88 in
    • Flange Length 5.63 in | 143 mm
    • Flange Height (Thickness) 2.154 in | 54.7 mm
    • Bolt-to-Bolt Spacing 4.37 in | 111 mm
Description

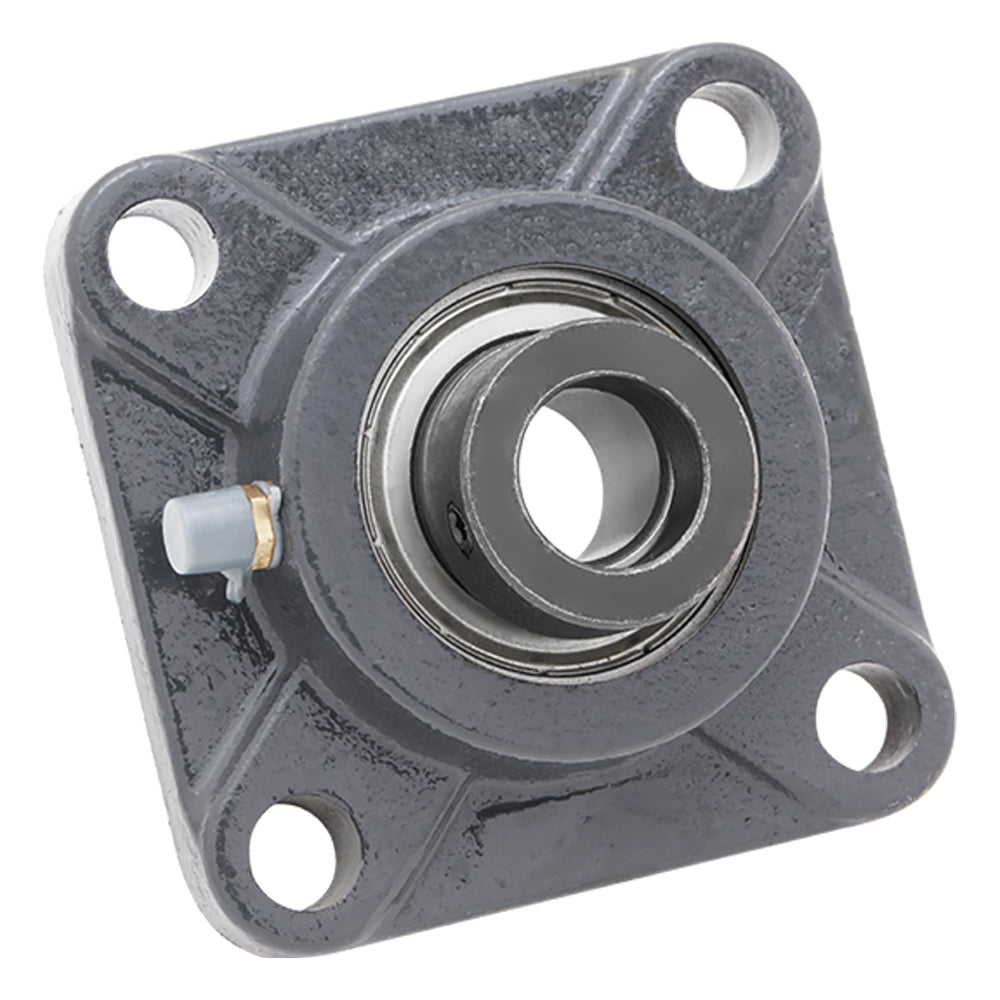

4-Bolt Flange Mounted Unit Ball Bearing: SAF210-30

The SAF series 4-bolt flange mounted ball bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing (SA210-30) and a cast iron housing (F210) with a locking collar, designed for easy installation and long-lasting performance.

Model SAF210-30
Shaft Bore (ID) 1.875 | 47.625 mm
Overall Flange Width 5.63 in | 143 mm
Flange Height (Thickness) 2.154 in | 54.7 mm
Bolt to Bolt Spacing 4.37 in | 111 mm
Bolt Size M16

Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
