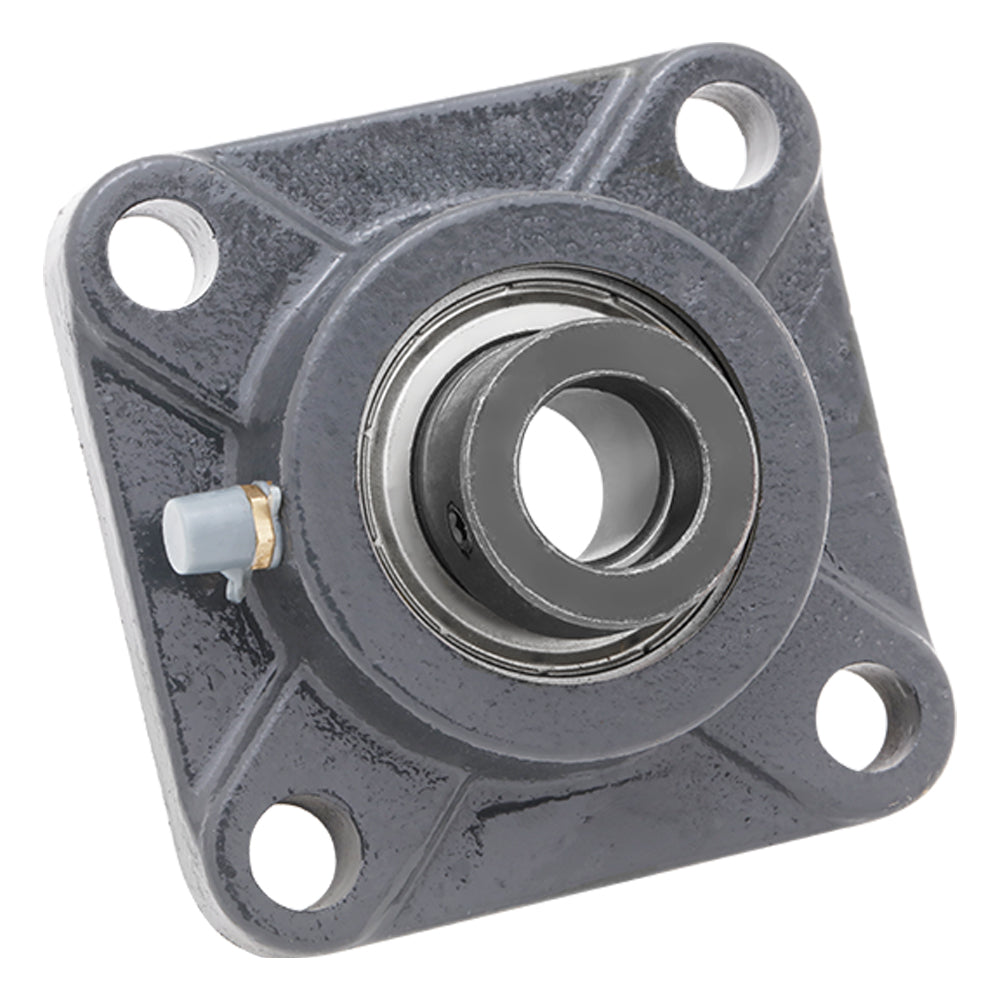

SAF209-28, 4-Bolt Flange Mounted Ball Bearing, 1 3/4 in Bore (ID), Insert Bearing: SA209-28, Housing: F209, with Locking Collar

In stock
SKU: SAF209-28
All of our mounted unit bearings are supplied fully assembled. Please contact us if you require a specific dimension that is not listed.
$37.50

Product details

  • Type Mounted Unit Bearings
    • Part Number SAF209-28
    • Insert Bearing SA209-28
    • Housing F209
    • Bore (ID) 1.75 in
    • Flange Length 5.394 in | 137 mm
    • Flange Height (Thickness) 2.154 in | 54.7 mm
    • Bolt-to-Bolt Spacing 4.134 in | 105 mm
Description

4-Bolt Flange Mounted Unit Ball Bearing: SAF209-28

The SAF series 4-bolt flange mounted ball bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing (SA209-28) and a cast iron housing (F209) with a locking collar, designed for easy installation and long-lasting performance.

Model SAF209-28
Shaft Bore (ID) 1.75 | 44.45 mm
Overall Flange Width 5.394 in | 137 mm
Flange Height (Thickness) 2.154 in | 54.7 mm
Bolt to Bolt Spacing 4.134 in | 105 mm
Bolt Size M14

Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
