HCFL216, 2-Bolt Flange Mounted Unit Bearing, 3.15 in Bore (ID), Insert Bearing: HC216, Housing: FL216

Out of stock
SKU: HCFL216
Material and bore size can be selected below. Dimensions (Bolt to Bolt x Length × Width × Height) remain the same for all options.
$99.99
Product details
  • Part Number HCFL216
  • Housing FL216
  • Insert Bearing HC216
  • Bore (ID) 3.15 in | 80 mm
  • Bolt to Bolt 9.173 in | 233 mm
  • Length 11.417 in | 290 mm
  • Width 7.087 in | 180 mm
  • Height 3.602 in | 91.5 mm
Description

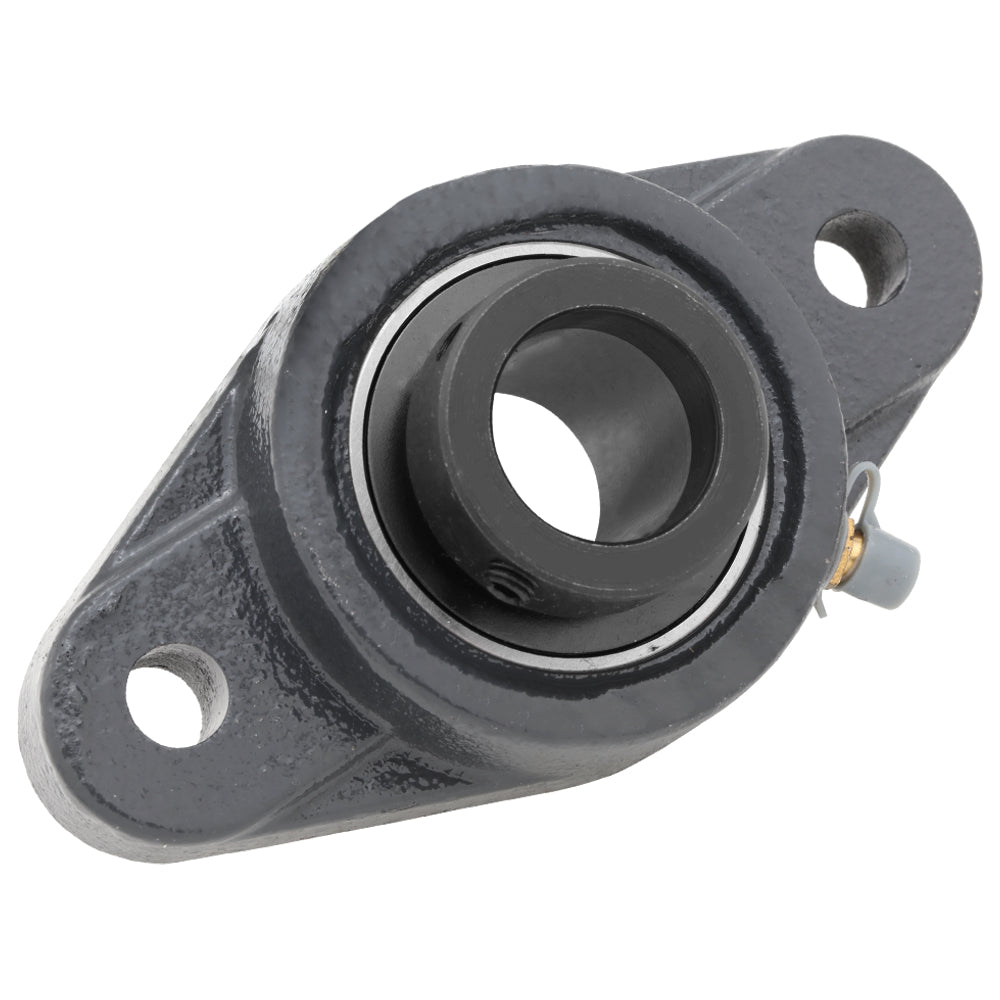

2-Bolt Flange Mounted Unit Bearing

The HC Series 2-Bolt Flange Mounted Ball Bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing and housing with eccentric locking collar for secure shaft attachment, easy installation, and long service life.

Part Number HCFL216
Bore ID 3.15 in | 80 mm
Length 11.417 in | 290 mm
Width 7.087 in | 180 mm
Height (ThickNess) 3.602 in | 91.5 mm
Bolt to Bolt 9.173 in | 233 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
