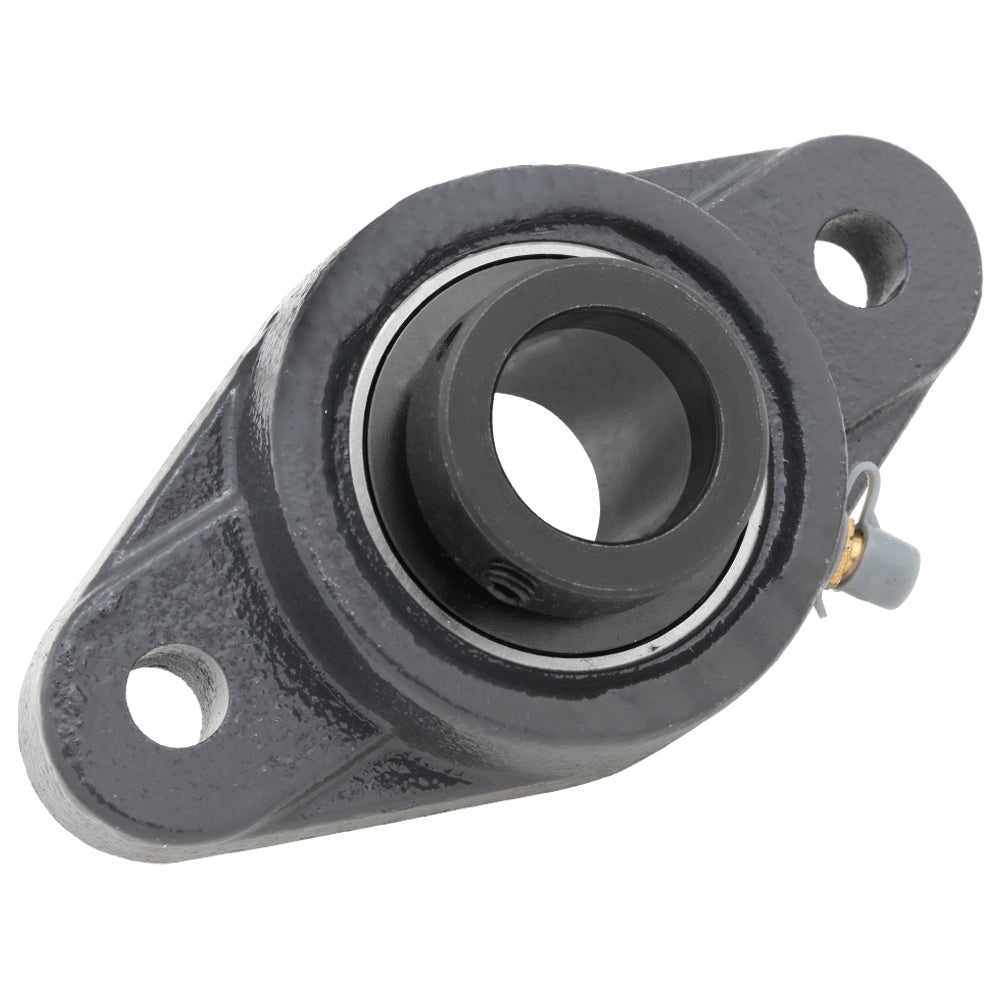

HCFL215, 2-Bolt Flange Mounted Unit Bearing, 2.953 in Bore (ID), Insert Bearing: HC215, Housing: FL215

Out of stock
SKU: HCFL215
Material and bore size can be selected below. Dimensions (Bolt to Bolt x Length × Width × Height) remain the same for all options.
$91.25
Product details
  • Part Number HCFL215
  • Housing FL215
  • Insert Bearing HC215
  • Bore (ID) 2.953 in | 75 mm
  • Bolt to Bolt 8.858 in | 225 mm
  • Length 10.827 in | 275 mm
  • Width 6.457 in | 164 mm
  • Height 3.496 in | 88.8 mm
Description

2-Bolt Flange Mounted Unit Bearing

The HC Series 2-Bolt Flange Mounted Ball Bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing and housing with eccentric locking collar for secure shaft attachment, easy installation, and long service life.

Part Number HCFL215
Bore ID 2.953 in | 75 mm
Length 10.827 in | 275 mm
Width 6.457 in | 164 mm
Height (ThickNess) 3.496 in | 88.8 mm
Bolt to Bolt 8.858 in | 225 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
