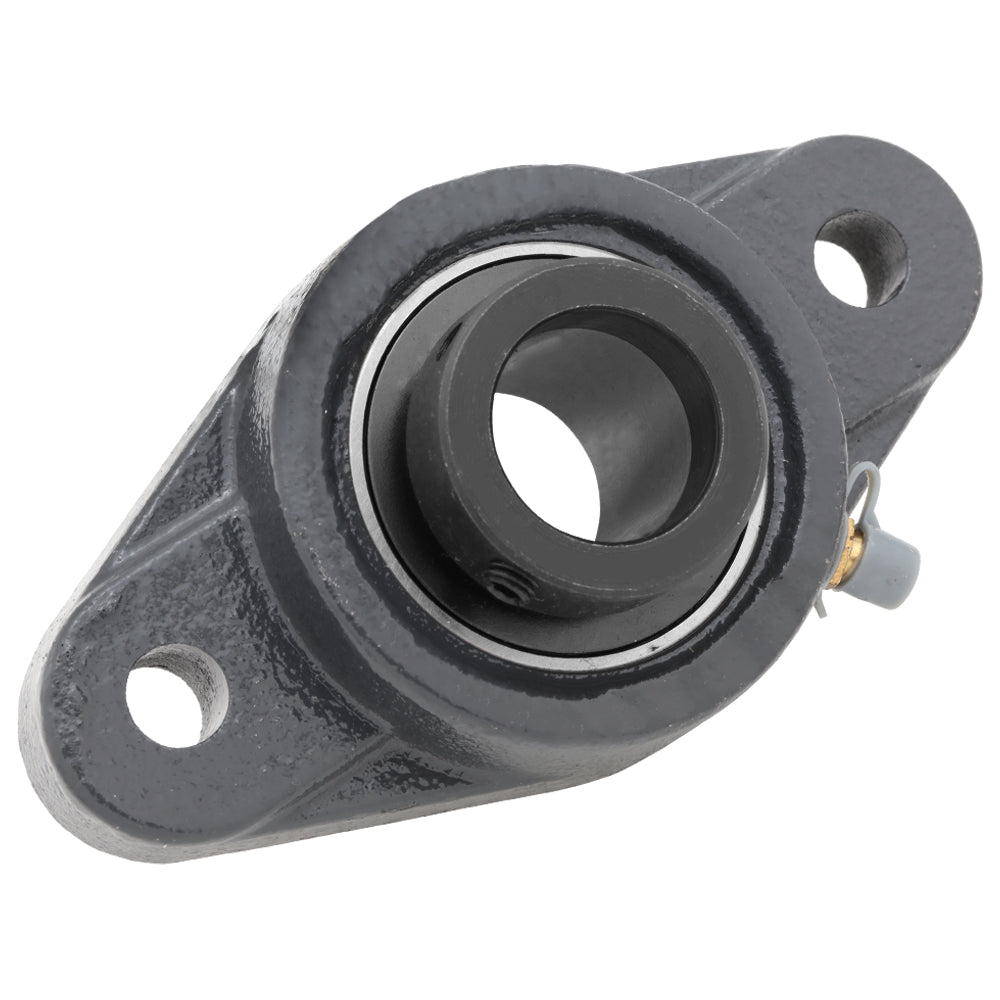

HCFL214-44, 2-Bolt Flange Mounted Unit Bearing, 2.75 in Bore (ID), Insert Bearing: HC214-44, Housing: FL214

Out of stock
SKU: HCFL214-44
Material and bore size can be selected below. Dimensions (Bolt to Bolt x Length × Width × Height) remain the same for all options.
$73.75
Product details
  • Part Number HCFL214-44
  • Housing FL214
  • Insert Bearing HC214-44
  • Bore (ID) 2.75 in | 69.85 mm
  • Bolt to Bolt 8.504 in | 216 mm
  • Length 10.433 in | 265 mm
  • Width 6.299 in | 160 mm
  • Height 3.252 in | 82.6 mm
Description

2-Bolt Flange Mounted Unit Bearing

The HC Series 2-Bolt Flange Mounted Ball Bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing and housing with eccentric locking collar for secure shaft attachment, easy installation, and long service life.

Part Number HCFL214-44
Bore ID 2.75 in | 69.85 mm
Length 10.433 in | 265 mm
Width 6.299 in | 160 mm
Height (ThickNess) 3.252 in | 82.6 mm
Bolt to Bolt 8.504 in | 216 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
