QJZ

HCFL213, 2-Bolt Flange Mounted Unit Bearing, 2.559 in Bore (ID), Insert Bearing: HC213, Housing: FL213

Out of stock
SKU: HCFL213
Material and bore size can be selected below. Dimensions (Bolt to Bolt x Length × Width × Height) remain the same for all options.
$59.75
Product details
  • Part Number HCFL213
  • Housing FL213
  • Insert Bearing HC213
  • Bore (ID) 2.559 in | 65 mm
  • Bolt to Bolt 8.268 in | 210 mm
  • Length 10.157 in | 258 mm
  • Width 6.102 in | 155 mm
  • Height 3.213 in | 81.6 mm
Description

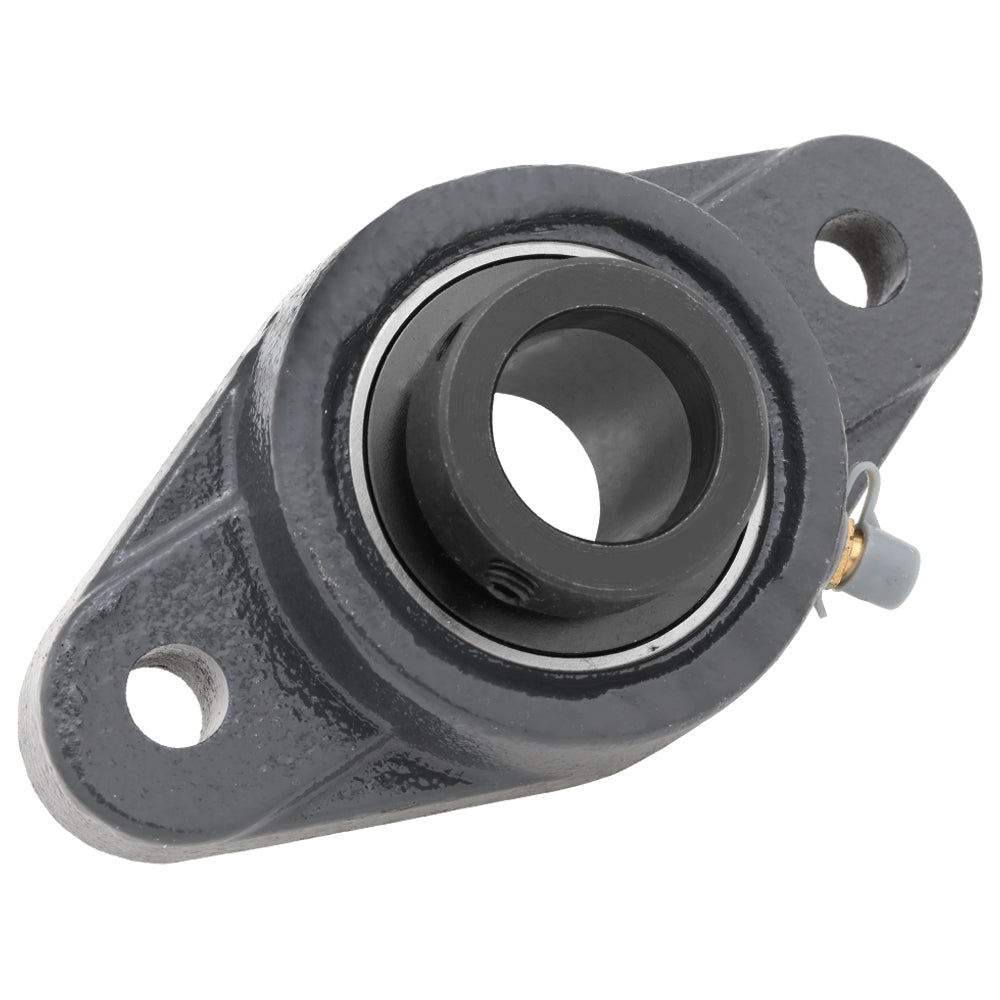

2-Bolt Flange Mounted Unit Bearing

The HC Series 2-Bolt Flange Mounted Ball Bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing and housing with eccentric locking collar for secure shaft attachment, easy installation, and long service life.

Part Number HCFL213
Bore ID 2.559 in | 65 mm
Length 10.157 in | 258 mm
Width 6.102 in | 155 mm
Height (ThickNess) 3.213 in | 81.6 mm
Bolt to Bolt 8.268 in | 210 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
