QJZ

HCFL211-35, 2-Bolt Flange Mounted Unit Bearing, 2.188 in Bore (ID), Insert Bearing: HC211-35, Housing: FL211

In stock
SKU: HCFL211-35
Material and bore size can be selected below. Dimensions (Bolt to Bolt x Length × Width × Height) remain the same for all options.
$38.25
Product details
  • Part Number HCFL211-35
  • Housing FL211
  • Insert Bearing HC211-35
  • Bore (ID) 2.188 in | 55.563 mm
  • Bolt to Bolt 7.244 in | 184 mm
  • Length 8.819 in | 224 mm
  • Width 5.118 in | 130 mm
  • Height 2.701 in | 68.6 mm
Description

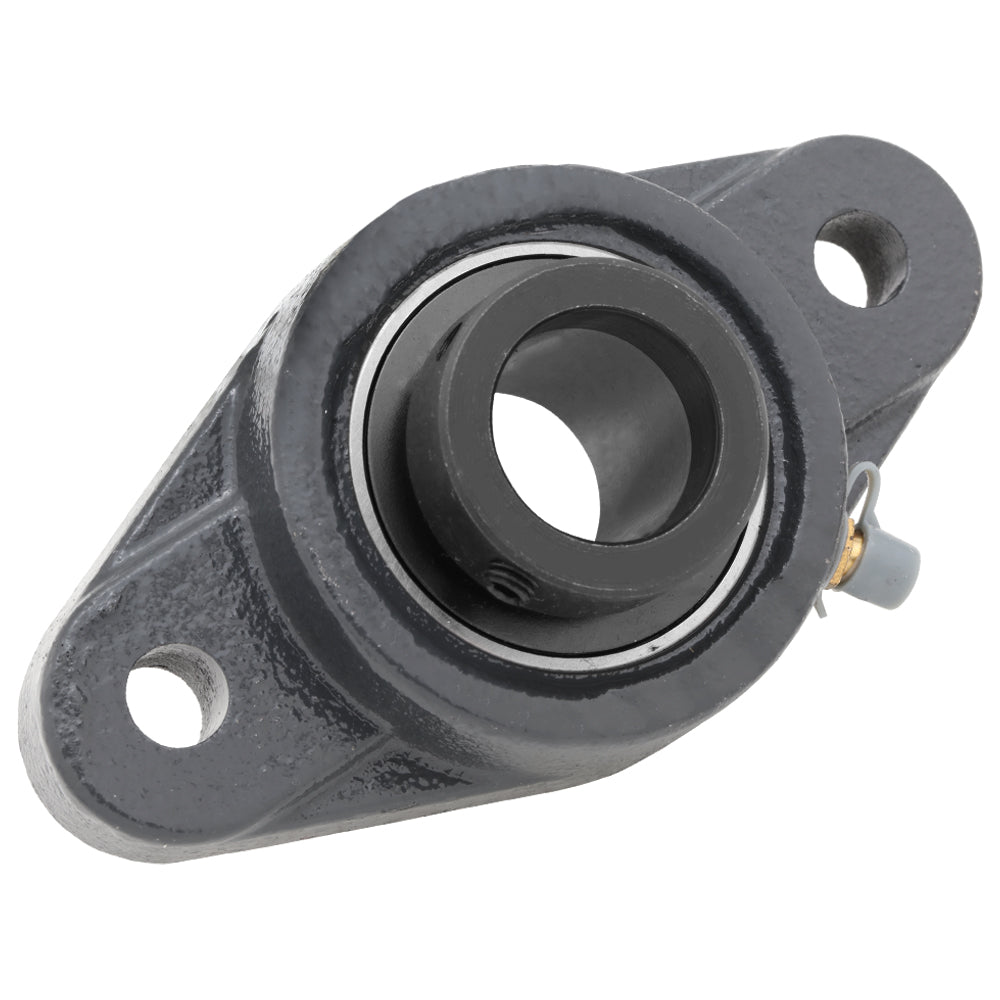

2-Bolt Flange Mounted Unit Bearing

The HC Series 2-Bolt Flange Mounted Ball Bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing and housing with eccentric locking collar for secure shaft attachment, easy installation, and long service life.

Part Number HCFL211-35
Bore ID 2.188 in | 55.563 mm
Length 8.819 in | 224 mm
Width 5.118 in | 130 mm
Height (ThickNess) 2.701 in | 68.6 mm
Bolt to Bolt 7.244 in | 184 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
