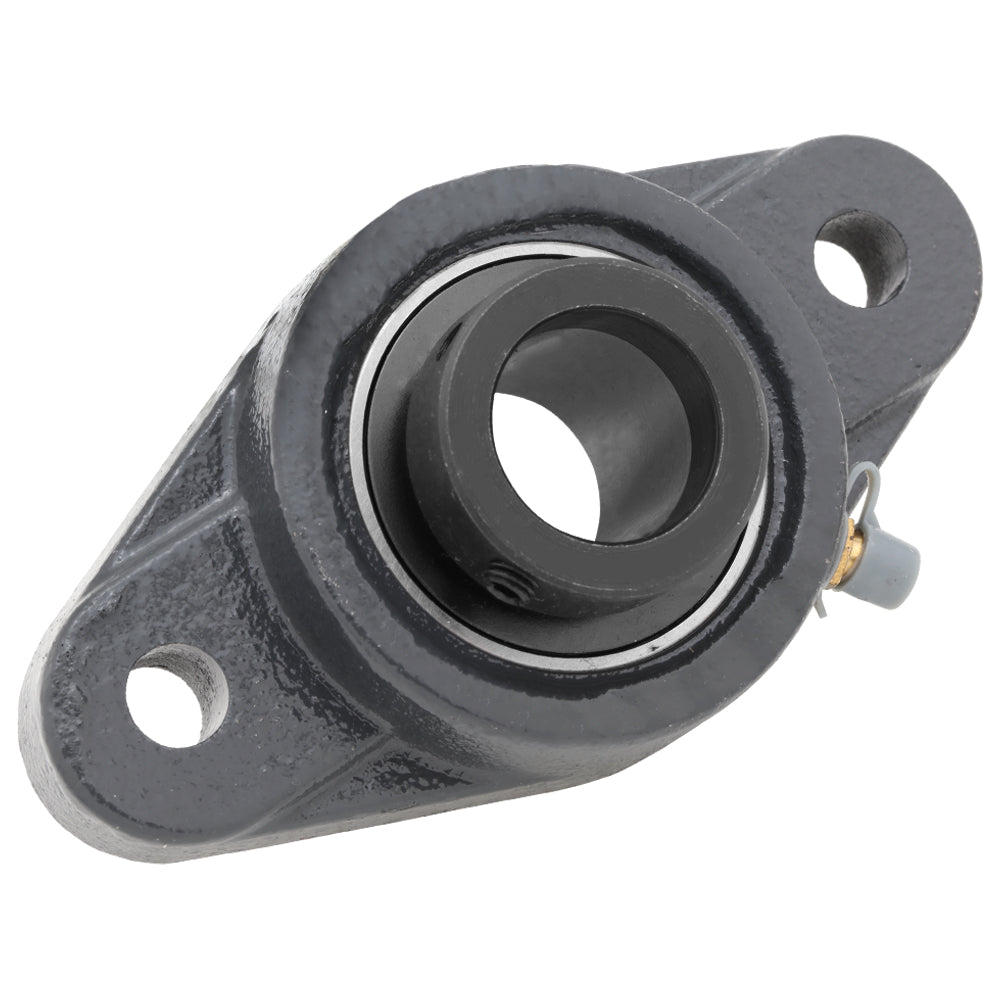

HCFL210-30, 2-Bolt Flange Mounted Unit Bearing, 1.875 in Bore (ID), Insert Bearing: HC210-30, Housing: FL210

In stock
SKU: HCFL210-30
Material and bore size can be selected below. Dimensions (Bolt to Bolt x Length × Width × Height) remain the same for all options.
$32.50
Product details
  • Part Number HCFL210-30
  • Housing FL210
  • Insert Bearing HC210-30
  • Bore (ID) 1.875 in | 47.625 mm
  • Bolt to Bolt 6.181 in | 157 mm
  • Length 7.756 in | 197 mm
  • Width 4.528 in | 115 mm
  • Height 2.366 in | 60.1 mm
Description

2-Bolt Flange Mounted Unit Bearing

The HC Series 2-Bolt Flange Mounted Ball Bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing and housing with eccentric locking collar for secure shaft attachment, easy installation, and long service life.

Part Number HCFL210-30
Bore ID 1.875 in | 47.625 mm
Length 7.756 in | 197 mm
Width 4.528 in | 115 mm
Height (ThickNess) 2.366 in | 60.1 mm
Bolt to Bolt 6.181 in | 157 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
