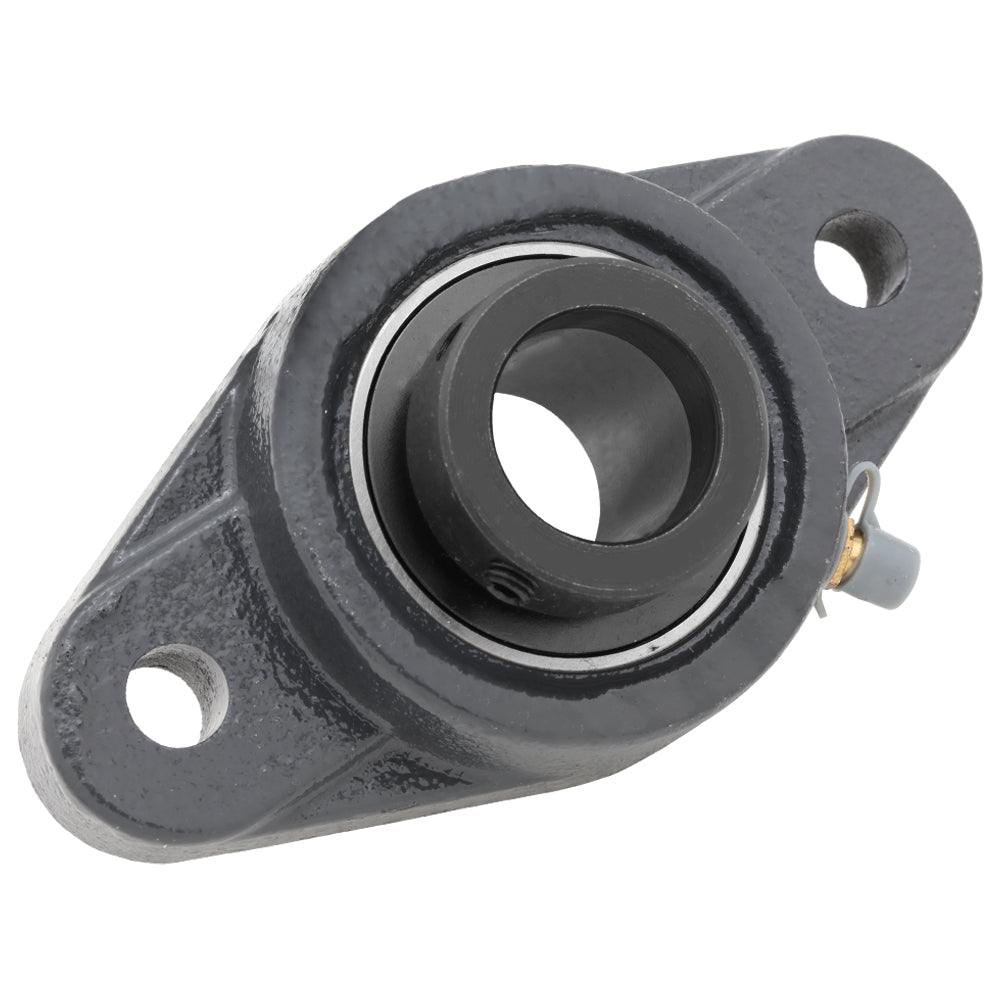

HCFL209-26, 2-Bolt Flange Mounted Unit Bearing, 1.625 in Bore (ID), Insert Bearing: HC209-26, Housing: FL209

In stock
SKU: HCFL209-26
Material and bore size can be selected below. Dimensions (Bolt to Bolt x Length × Width × Height) remain the same for all options.
$22.25
Product details
  • Part Number HCFL209-26
  • Housing FL209
  • Insert Bearing HC209-26
  • Bore (ID) 1.625 in | 41.275 mm
  • Bolt to Bolt 5.827 in | 148 mm
  • Length 7.402 in | 188 mm
  • Width 4.252 in | 108 mm
  • Height 2.24 in | 56.9 mm
Description

2-Bolt Flange Mounted Unit Bearing

The HC Series 2-Bolt Flange Mounted Ball Bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing and housing with eccentric locking collar for secure shaft attachment, easy installation, and long service life.

Part Number HCFL209-26
Bore ID 1.625 in | 41.275 mm
Length 7.402 in | 188 mm
Width 4.252 in | 108 mm
Height (ThickNess) 2.24 in | 56.9 mm
Bolt to Bolt 5.827 in | 148 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
