HCFL208, 2-Bolt Flange Mounted Unit Bearing, 1.575 in Bore (ID), Insert Bearing: HC208, Housing: FL208

Out of stock
SKU: HCFL208
Material and bore size can be selected below. Dimensions (Bolt to Bolt x Length × Width × Height) remain the same for all options.
$22.75
Product details
  • Part Number HCFL208
  • Housing FL208
  • Insert Bearing HC208
  • Bore (ID) 1.575 in | 40 mm
  • Bolt to Bolt 5.669 in | 144 mm
  • Length 6.89 in | 175 mm
  • Width 3.937 in | 100 mm
  • Height 2.201 in | 55.9 mm
Description

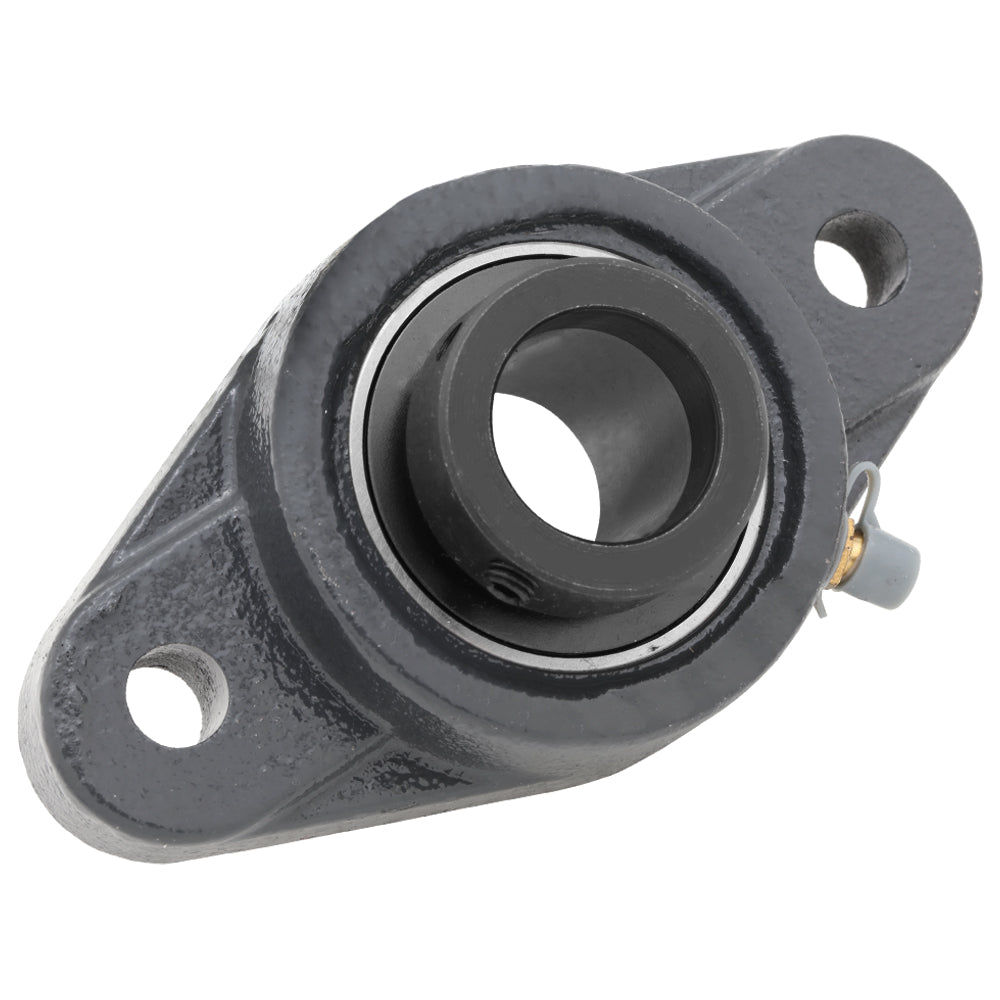

2-Bolt Flange Mounted Unit Bearing

The HC Series 2-Bolt Flange Mounted Ball Bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing and housing with eccentric locking collar for secure shaft attachment, easy installation, and long service life.

Part Number HCFL208
Bore ID 1.575 in | 40 mm
Length 6.89 in | 175 mm
Width 3.937 in | 100 mm
Height (ThickNess) 2.201 in | 55.9 mm
Bolt to Bolt 5.669 in | 144 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
