HCFL207-21, 2-Bolt Flange Mounted Unit Bearing, 1.313 in Bore (ID), Insert Bearing: HC207-21, Housing: FL207

In stock
SKU: HCFL207-21
Material and bore size can be selected below. Dimensions (Bolt to Bolt x Length × Width × Height) remain the same for all options.
$18.50
Product details
  • Part Number HCFL207-21
  • Housing FL207
  • Insert Bearing HC207-21
  • Bore (ID) 1.313 in | 33.338 mm
  • Bolt to Bolt 5.118 in | 130 mm
  • Length 6.339 in | 161 mm
  • Width 3.543 in | 90 mm
  • Height 2.02 in | 51.3 mm
Description

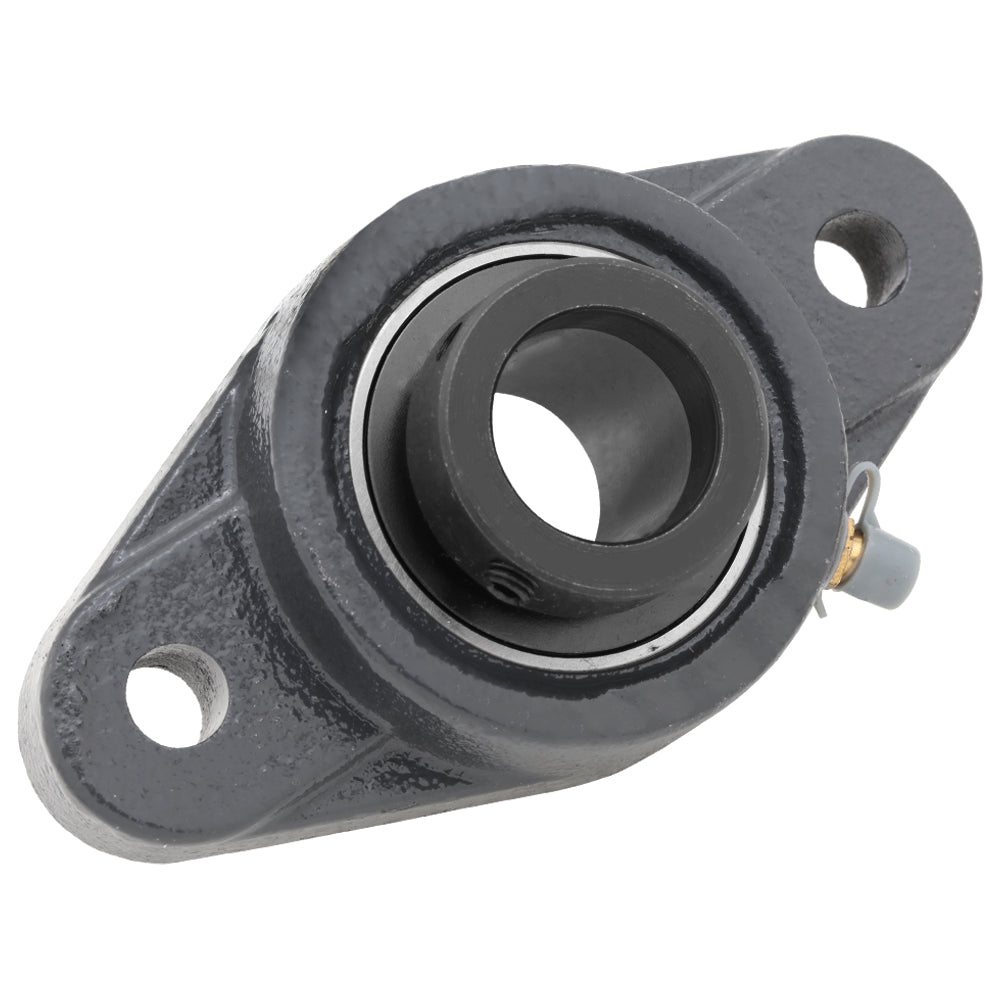

2-Bolt Flange Mounted Unit Bearing

The HC Series 2-Bolt Flange Mounted Ball Bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing and housing with eccentric locking collar for secure shaft attachment, easy installation, and long service life.

Part Number HCFL207-21
Bore ID 1.313 in | 33.338 mm
Length 6.339 in | 161 mm
Width 3.543 in | 90 mm
Height (ThickNess) 2.02 in | 51.3 mm
Bolt to Bolt 5.118 in | 130 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
