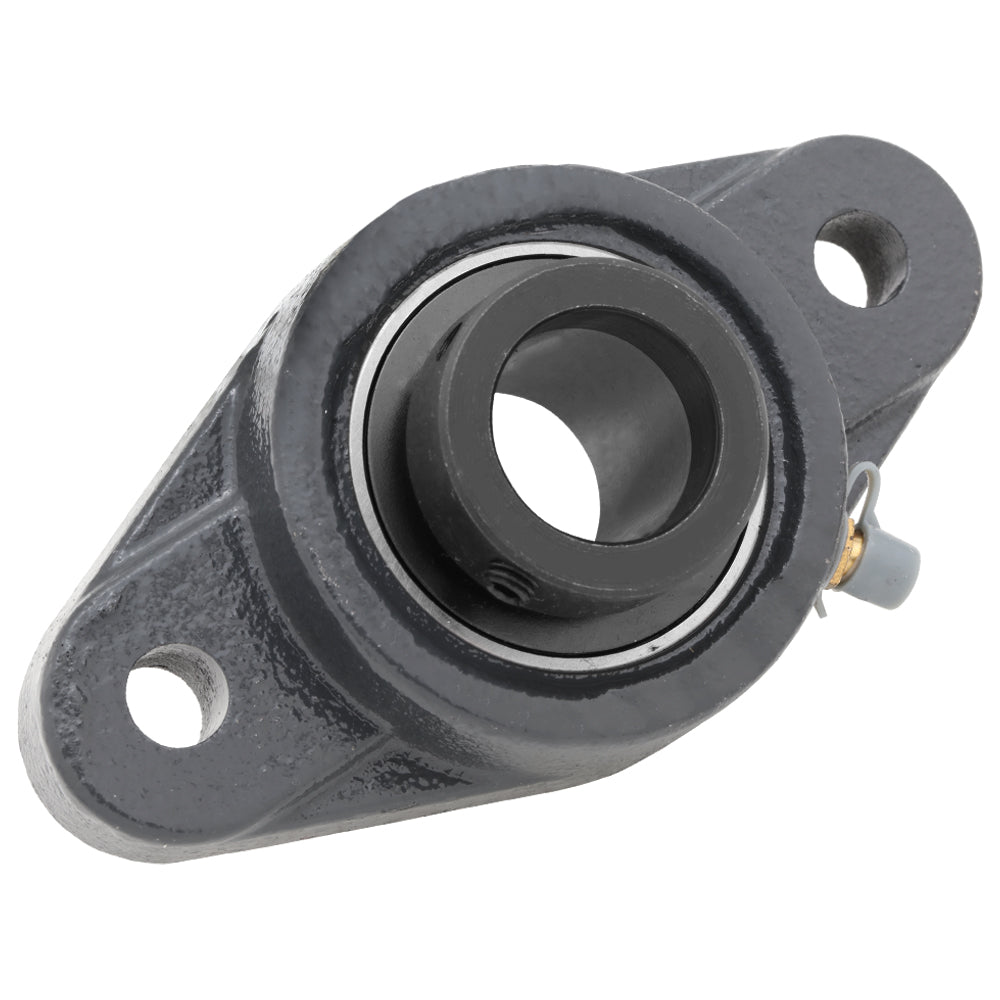

HCFL206-20, 2-Bolt Flange Mounted Unit Bearing, 1.25 in Bore (ID), Insert Bearing: HC206-20, Housing: FL206

In stock
SKU: HCFL206-20
Material and bore size can be selected below. Dimensions (Bolt to Bolt x Length × Width × Height) remain the same for all options.
$15.75
Product details
  • Part Number HCFL206-20
  • Housing FL206
  • Insert Bearing HC206-20
  • Bore (ID) 1.25 in | 31.75 mm
  • Bolt to Bolt 4.606 in | 117 mm
  • Length 5.827 in | 148 mm
  • Width 3.15 in | 80 mm
  • Height 1.894 in | 48.1 mm
Description

2-Bolt Flange Mounted Unit Bearing

The HC Series 2-Bolt Flange Mounted Ball Bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing and housing with eccentric locking collar for secure shaft attachment, easy installation, and long service life.

Part Number HCFL206-20
Bore ID 1.25 in | 31.75 mm
Length 5.827 in | 148 mm
Width 3.15 in | 80 mm
Height (ThickNess) 1.894 in | 48.1 mm
Bolt to Bolt 4.606 in | 117 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
