QJZ

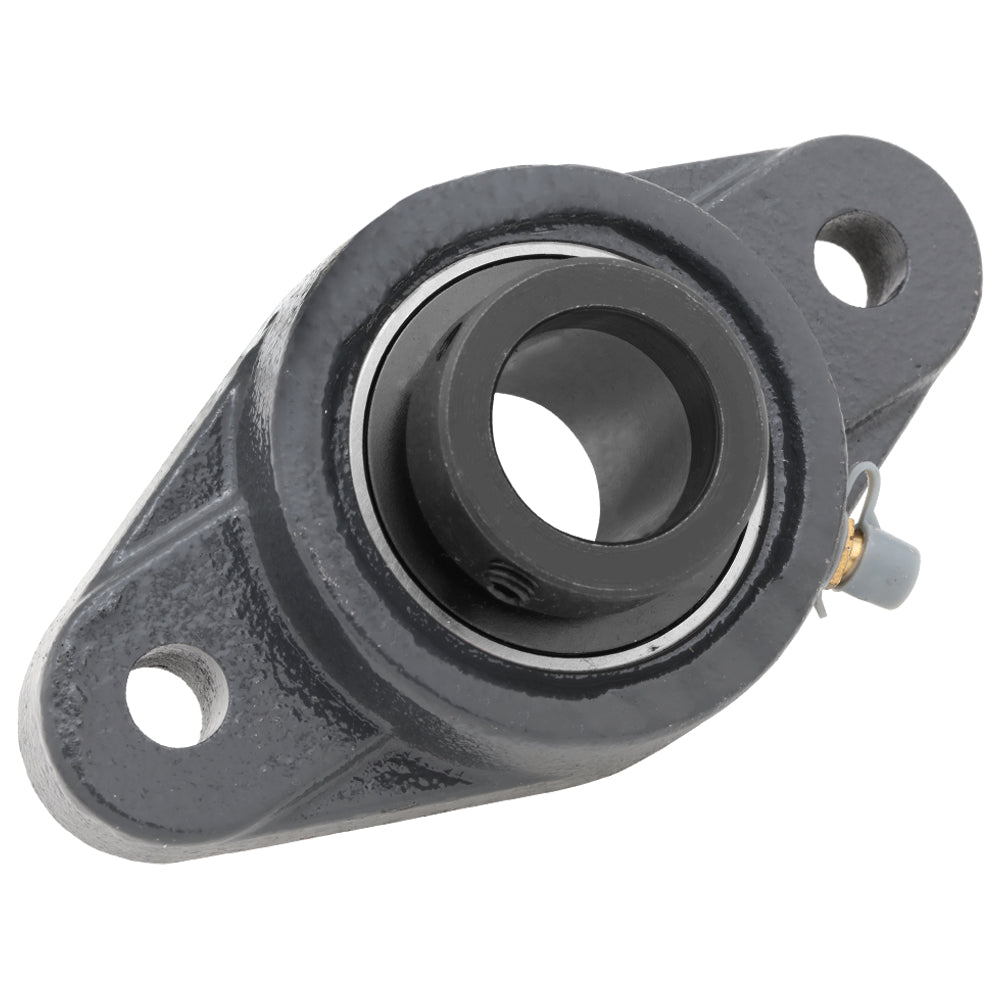

HCFL205-16 NCH, 2-Bolt Flange Mounted Unit Bearing, 1 in Bore (ID), Insert Bearing: HC205-16 NCH, Housing: FL205

In stock
SKU: HCFL205-16 NCH
Material and bore size can be selected below. Dimensions (Bolt to Bolt x Length × Width × Height) remain the same for all options.
$7.75
Product details
  • Part Number HCFL205-16 NCH
  • Housing FL205
  • Insert Bearing HC205-16 NCH
  • Bore (ID) 1 in | 25.4 mm
  • Bolt to Bolt 3.898 in | 99 mm
  • Length 5.118 in | 130 mm
  • Width 2.677 in | 68 mm
  • Height 1.689 in | 42.9 mm
Description

2-Bolt Flange Mounted Unit Bearing

The HC Series 2-Bolt Flange Mounted Ball Bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing and housing with eccentric locking collar for secure shaft attachment, easy installation, and long service life.

Part Number HCFL205-16 NCH
Bore ID 1 in | 25.4 mm
Length 5.118 in | 130 mm
Width 2.677 in | 68 mm
Height (ThickNess) 1.689 in | 42.9 mm
Bolt to Bolt 3.898 in | 99 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
