HCFL204, 2-Bolt Flange Mounted Unit Bearing, 0.787 in Bore (ID), Insert Bearing: HC204, Housing: FL204

Out of stock
SKU: HCFL204
Material and bore size can be selected below. Dimensions (Bolt to Bolt x Length × Width × Height) remain the same for all options.
$11.75
Product details
  • Part Number HCFL204
  • Housing FL204
  • Insert Bearing HC204
  • Bore (ID) 0.787 in | 20 mm
  • Bolt to Bolt 3.543 in | 90 mm
  • Length 4.449 in | 113 mm
  • Width 2.362 in | 60 mm
  • Height 1.634 in | 41.5 mm
Description

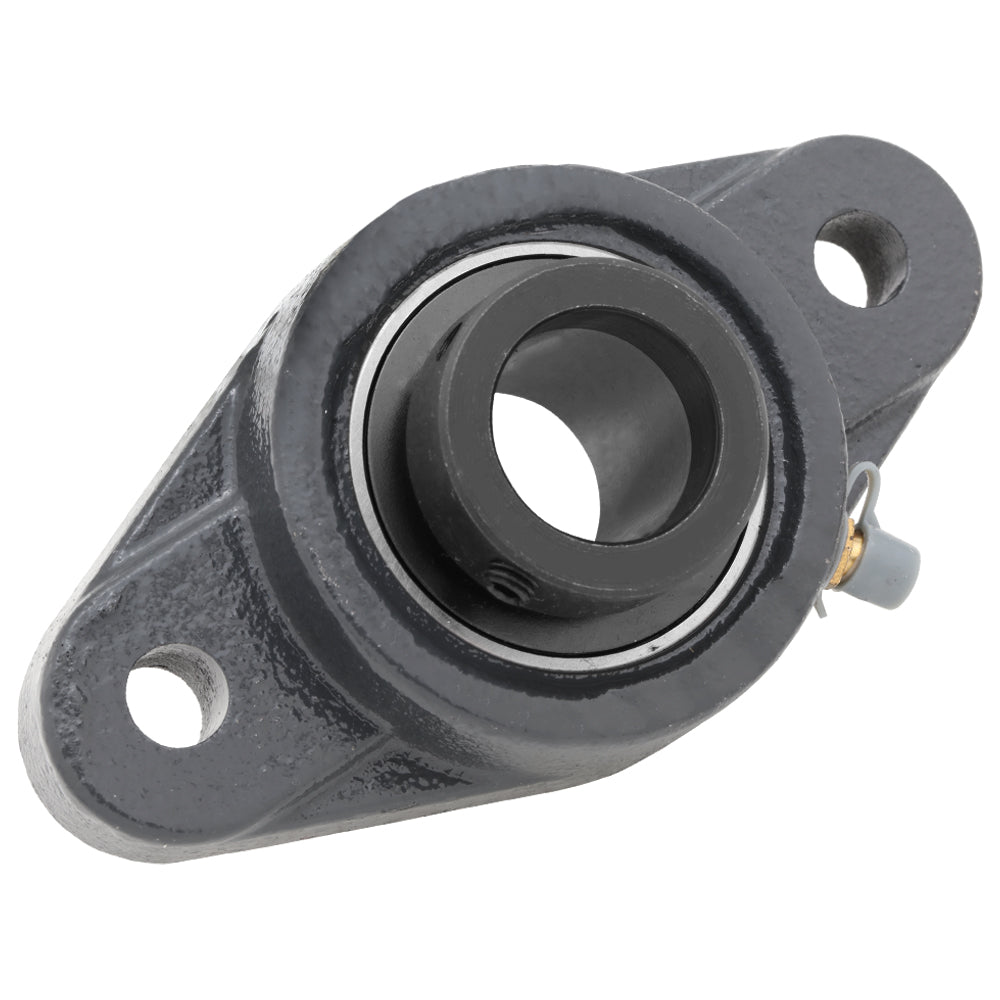

2-Bolt Flange Mounted Unit Bearing

The HC Series 2-Bolt Flange Mounted Ball Bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing and housing with eccentric locking collar for secure shaft attachment, easy installation, and long service life.

Part Number HCFL204
Bore ID 0.787 in | 20 mm
Length 4.449 in | 113 mm
Width 2.362 in | 60 mm
Height (ThickNess) 1.634 in | 41.5 mm
Bolt to Bolt 3.543 in | 90 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
