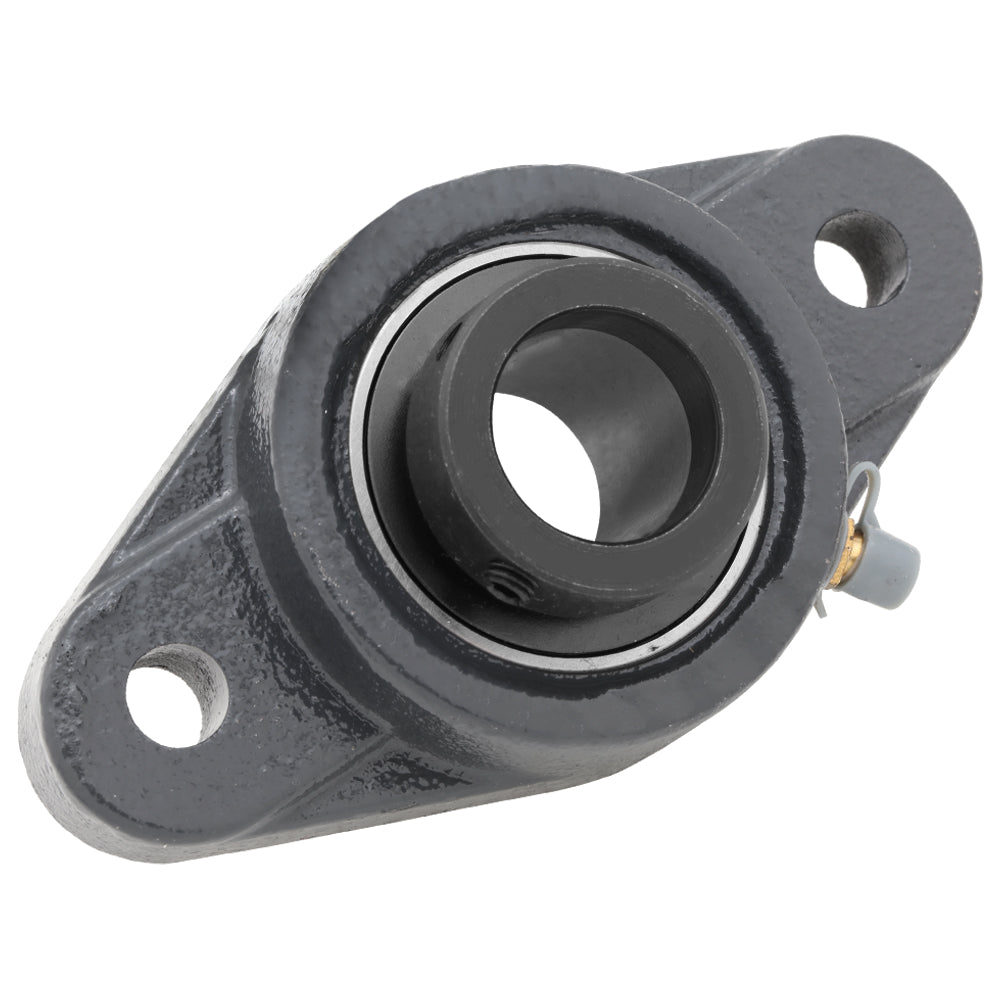

HCFL203-11, 2-Bolt Flange Mounted Unit Bearing, 0.688 in Bore (ID), Insert Bearing: HC203-11, Housing: FL203

Out of stock
SKU: HCFL203-11
Material and bore size can be selected below. Dimensions (Bolt to Bolt x Length × Width × Height) remain the same for all options.
$8.50
Product details
  • Part Number HCFL203-11
  • Housing FL203
  • Insert Bearing HC203-11
  • Bore (ID) 0.688 in | 17.463 mm
  • Bolt to Bolt 3.012 in | 76.5 mm
  • Length 3.898 in | 99 mm
  • Width 2.244 in | 57 mm
  • Height 1.512 in | 38.4 mm
Description

2-Bolt Flange Mounted Unit Bearing

The HC Series 2-Bolt Flange Mounted Ball Bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing and housing with eccentric locking collar for secure shaft attachment, easy installation, and long service life.

Part Number HCFL203-11
Bore ID 0.688 in | 17.463 mm
Length 3.898 in | 99 mm
Width 2.244 in | 57 mm
Height (ThickNess) 1.512 in | 38.4 mm
Bolt to Bolt 3.012 in | 76.5 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
