QJZ

HCAK209-26, Pillow Block Mounted Unit Bearing, 1.625 in Bore (ID), Insert Bearing: HC209-26, Housing: AK209

In stock
$22.75
Product details
  • Type Mounted Unit Bearings
  • Part Number HCAK209-26
  • Housing AK209
  • Insert Bearing HC209-26
  • Bore (ID) 1.625 in | 41.275 mm
  • Height 4.134 in | 105 mm
  • Length 7.441 in | 189 mm
  • Bolt to Bolt 5.748 in | 146 mm
Description

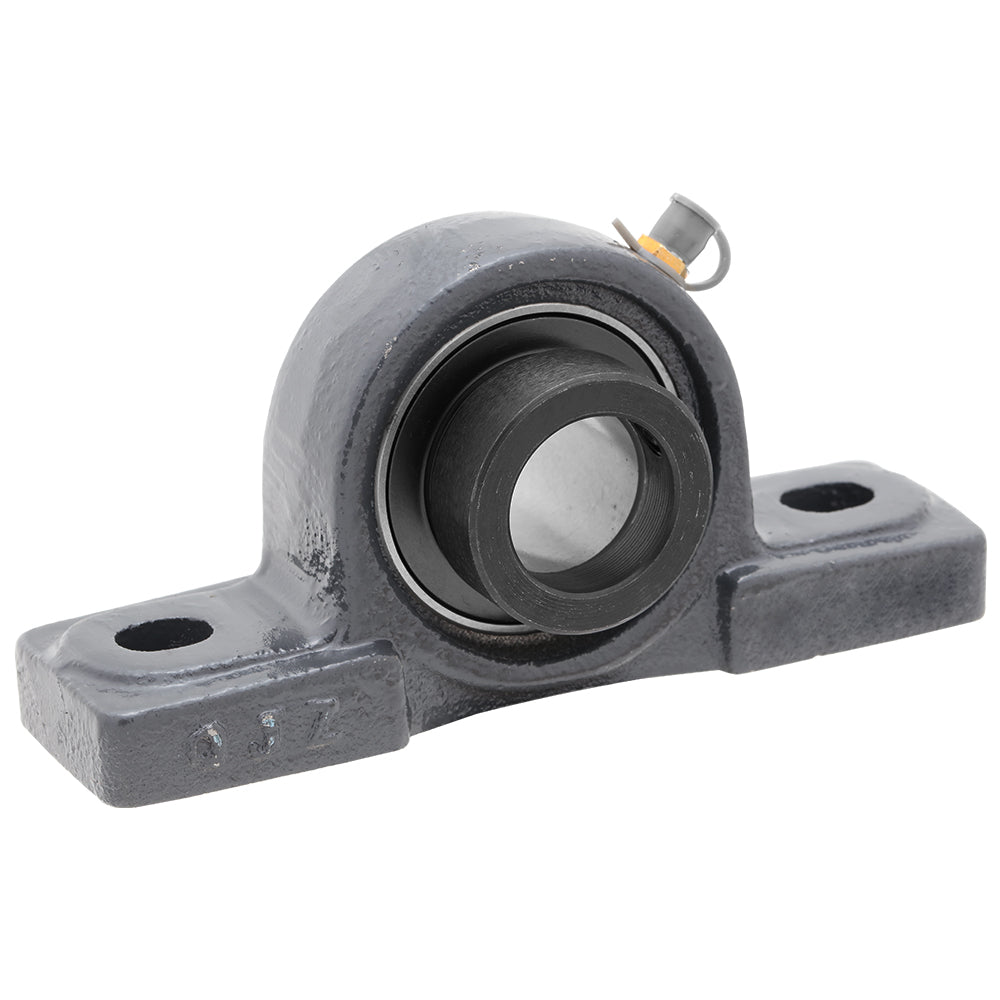

Pillow Block Mounted Unit Bearing

The HC Series Pillow Block Mounted Ball Bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing and housing with eccentric locking collar for secure shaft attachment, easy installation, and long service life.

Part Number HCAK209-26
Bore ID (MM) 1.625 in | 41.275 mm
Length (L) 7.441 in | 189 mm
Height (H0) 4.134 in | 105 mm
Width (A) 2.126 in | 54 mm
Bolt to Bolt (J) 5.748 in | 146 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
