CRSB48 - Cam Follower - 3 in Roller Diameter - Hex Socket
Regular price
$49.99
Couldn't load pickup availability

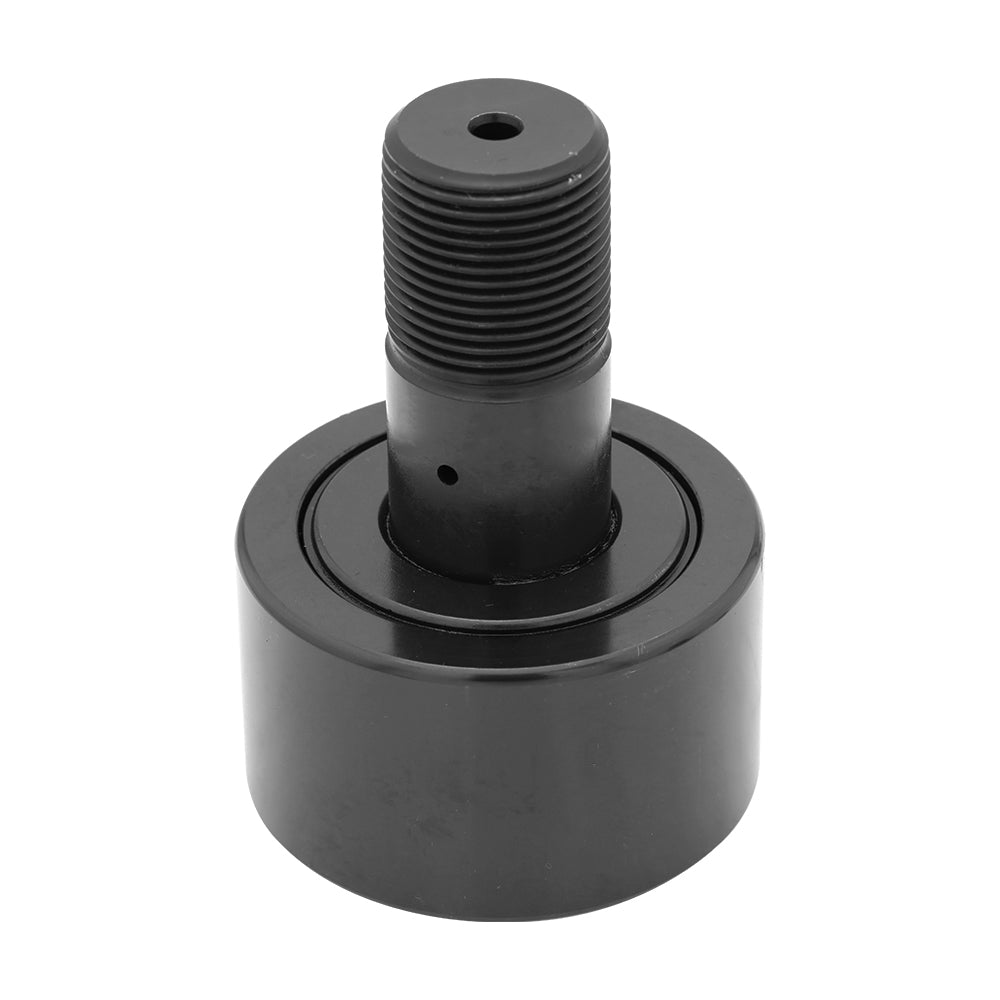

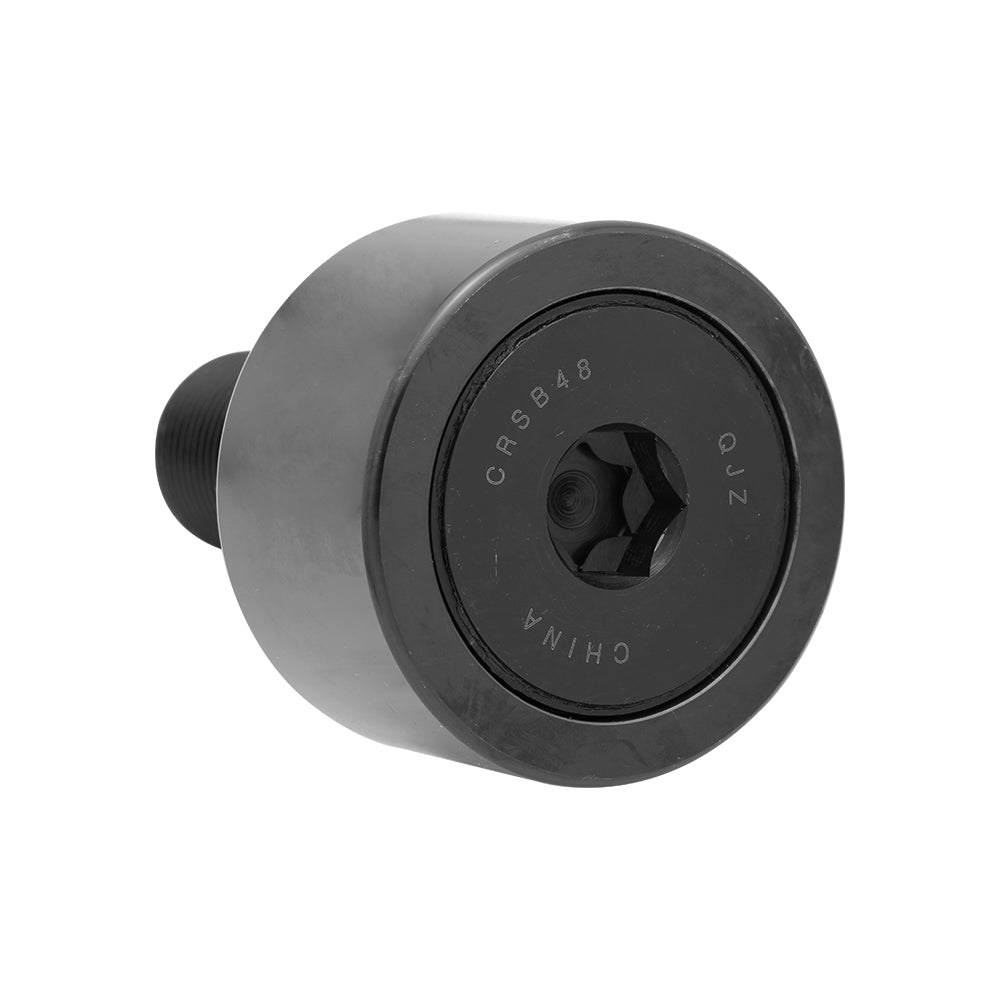

Cam Follower - Stud Type Track Roller Bearing
The cam follower is a stud-type track roller bearing designed for precise motion control in demanding industrial applications. Built with a thick-walled outer ring, it delivers excellent load capacity and resistance to deformation under high radial loads. The integrated stud design simplifies installation while providing a secure and stable mounting solution.
Specifications
| Roller Diameter: | 3 in | 76.2 mm |
| Roller Width: | 1.75 in | 44.45 mm |
| Stud Diameter: | 1.25 in | 31.75 mm |
| Stud Length: | 2.5 in | 63.5 mm |
| Thread Size: | 1 1/4-12 |
| Cross Reference: | CRSB-48, S96LW, RBC3, CF-3-SB |
| Coating: | Black Oxide |
