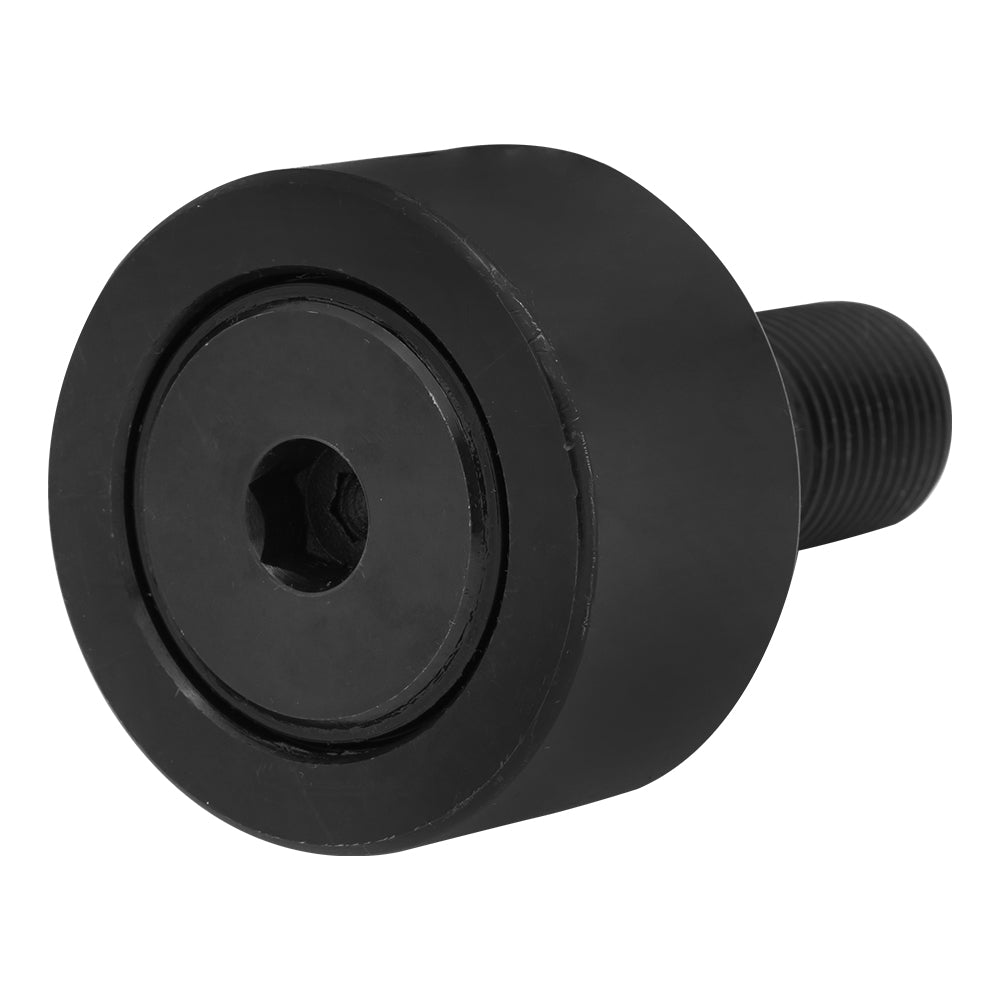

CF 2 SB - Cam Follower - 2 in Roller Diameter - Hex Socket

In stock
SKU: CF-2-SB
$22.50
Product details
  • Type Track Roller
  • Part Number CF-2-SB
  • Roller Diameter 2 in | 50.8 mm
  • Roller Width 1.25 in | 31.75 mm
  • Cross Reference CRSB-32, S64LW, RBC2
Description

Cam Follower - Stud Type Track Roller Bearing

The cam follower is a stud-type track roller bearing designed for precise motion control in demanding industrial applications. Built with a thick-walled outer ring, it delivers excellent load capacity and resistance to deformation under high radial loads. The integrated stud design simplifies installation while providing a secure and stable mounting solution.

Specifications

Roller Diameter 2 in | 50.8 mm
Roller Width 1.25 in | 31.75 mm
Stud Diameter 0.875 in | 22.225 mm
Stud Length 2 in | 50.8 mm
Thread Length 25.4 in | 1 mm
Threads 7/8-14
Cross Reference CRSB-32, S64LW, RBC2
Coating Black Oxide
