CF 2 3/4 SB - Cam Follower - 2.75 in Roller Diameter - Hex Socket

In stock
SKU: CF-2-3/4-SB
$55.25
Product details
  • Type Track Roller
  • Part Number CF-2-3/4-SB
  • Roller Diameter 2.75 in | 69.85 mm
  • Roller Width 1.5 in | 38.1 mm
  • Cross Reference CRSB-44, S88LW, RBC23/4
Description

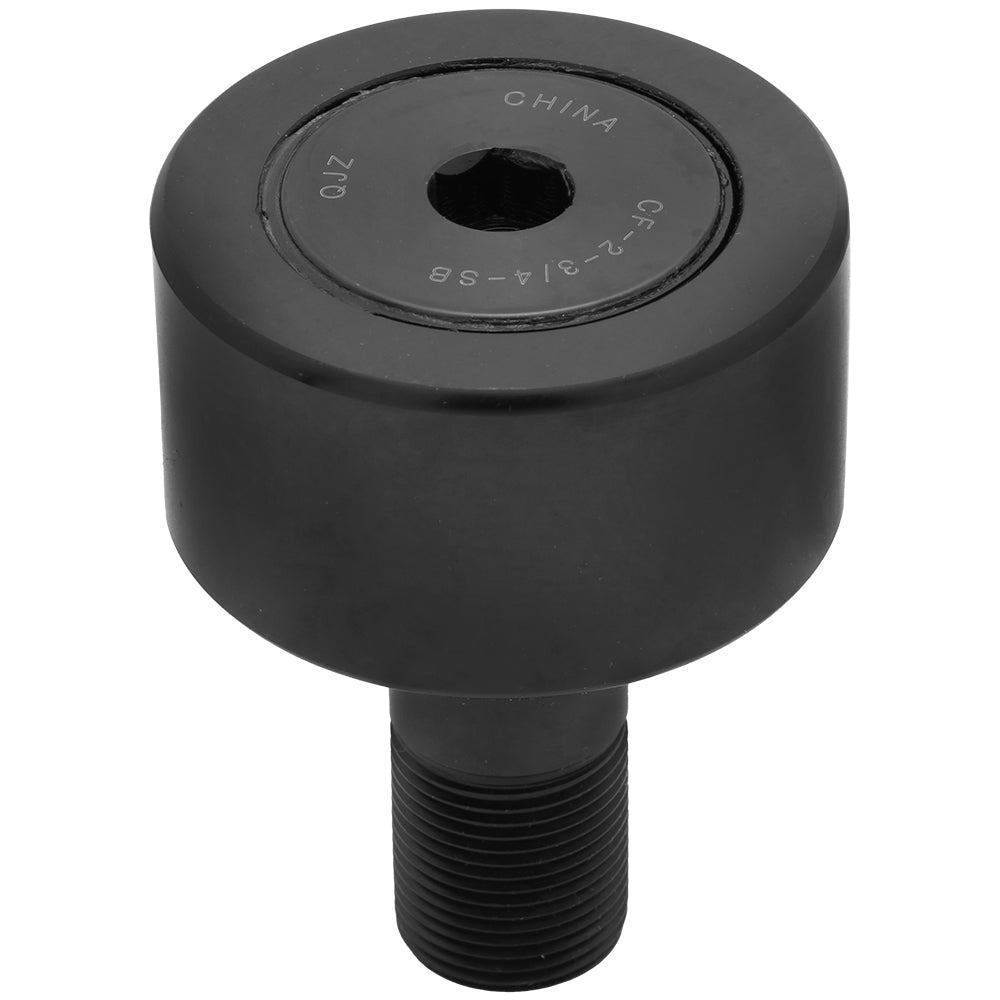

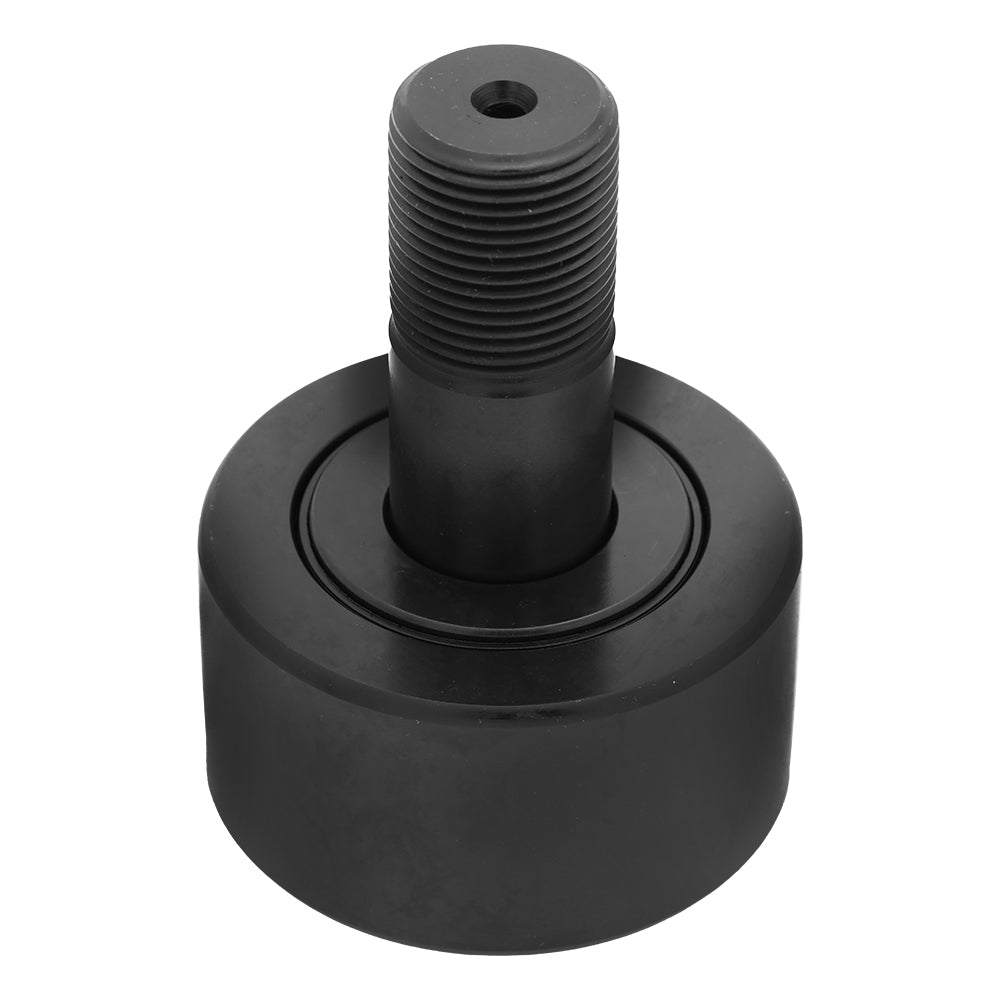

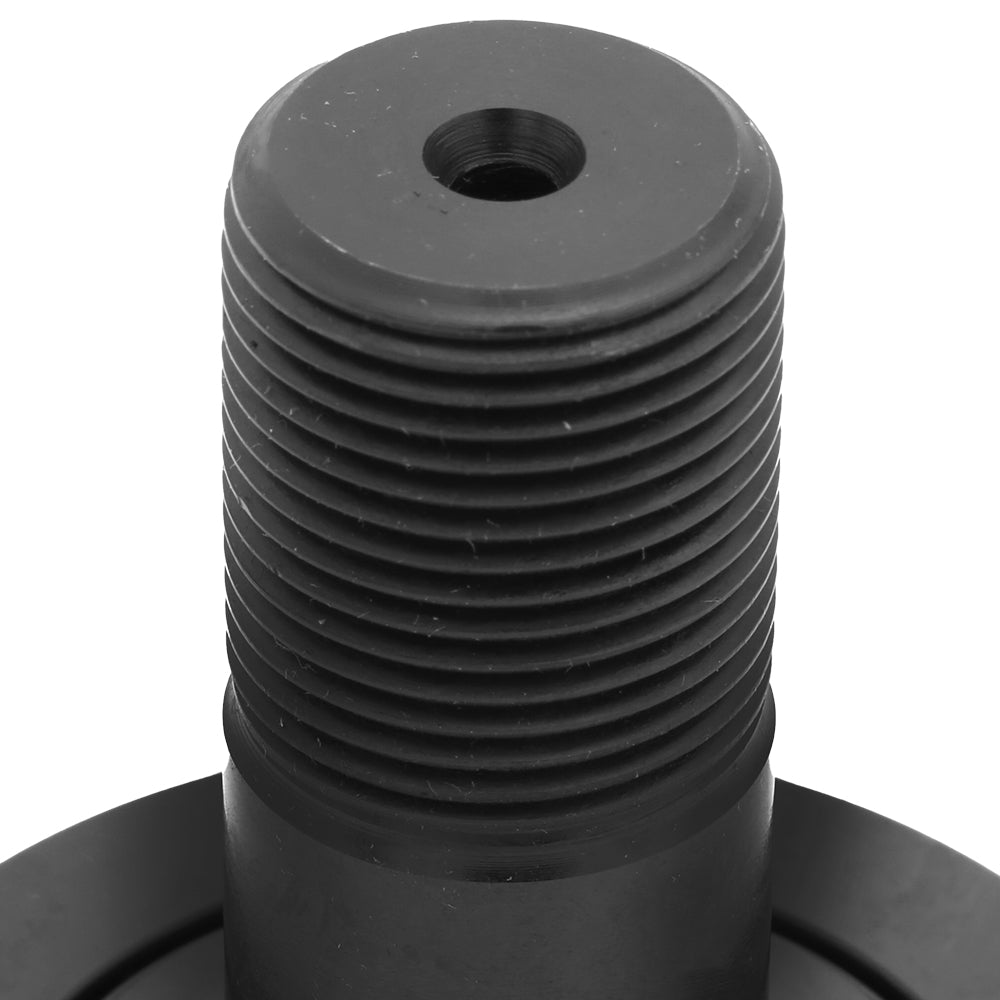

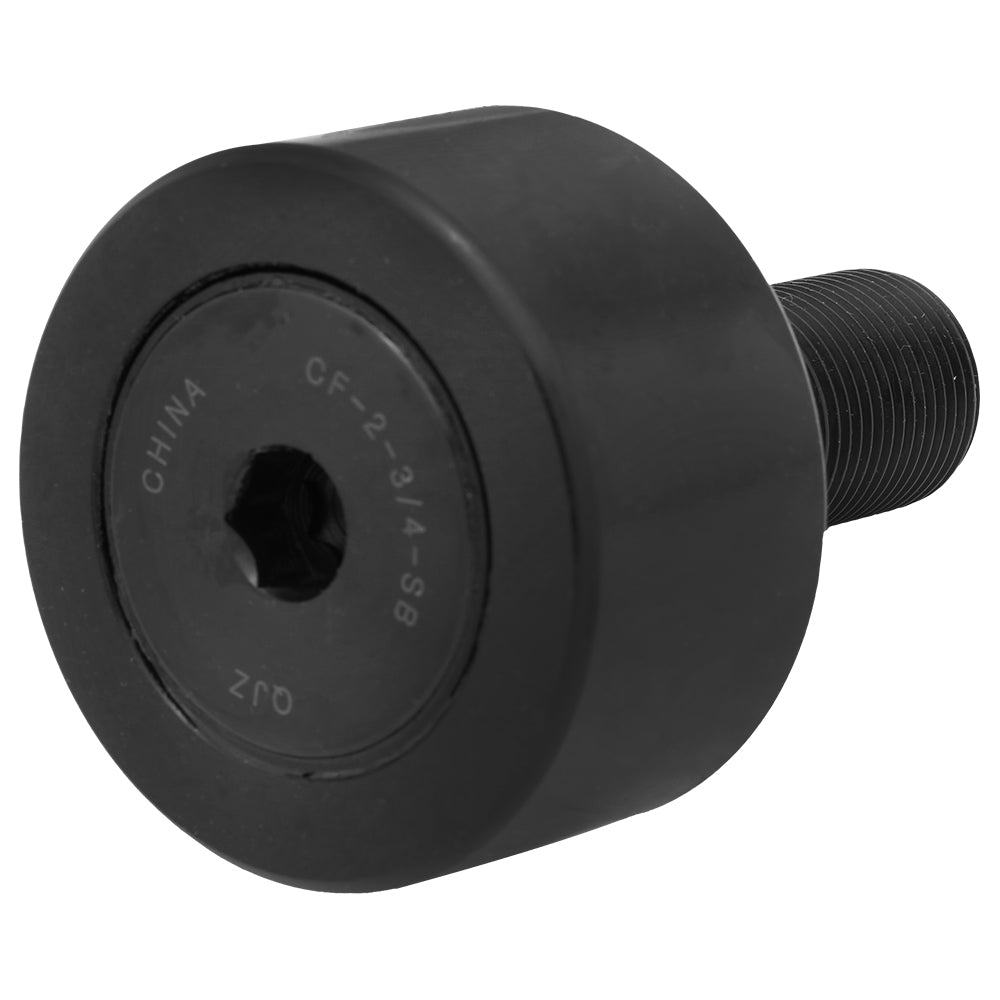

Cam Follower - Stud Type Track Roller Bearing

The cam follower is a stud-type track roller bearing designed for precise motion control in demanding industrial applications. Built with a thick-walled outer ring, it delivers excellent load capacity and resistance to deformation under high radial loads. The integrated stud design simplifies installation while providing a secure and stable mounting solution.

Specifications

Roller Diameter 2.75 in | 69.85 mm
Roller Width 1.5 in | 38.1 mm
Stud Diameter 1 in | 25.4 mm
Stud Length 2.25 in | 57.15 mm
Thread Length 28.575 in | 1.125 mm
Threads 1-14
Cross Reference CRSB-44, S88LW, RBC23/4
Coating Black Oxide
