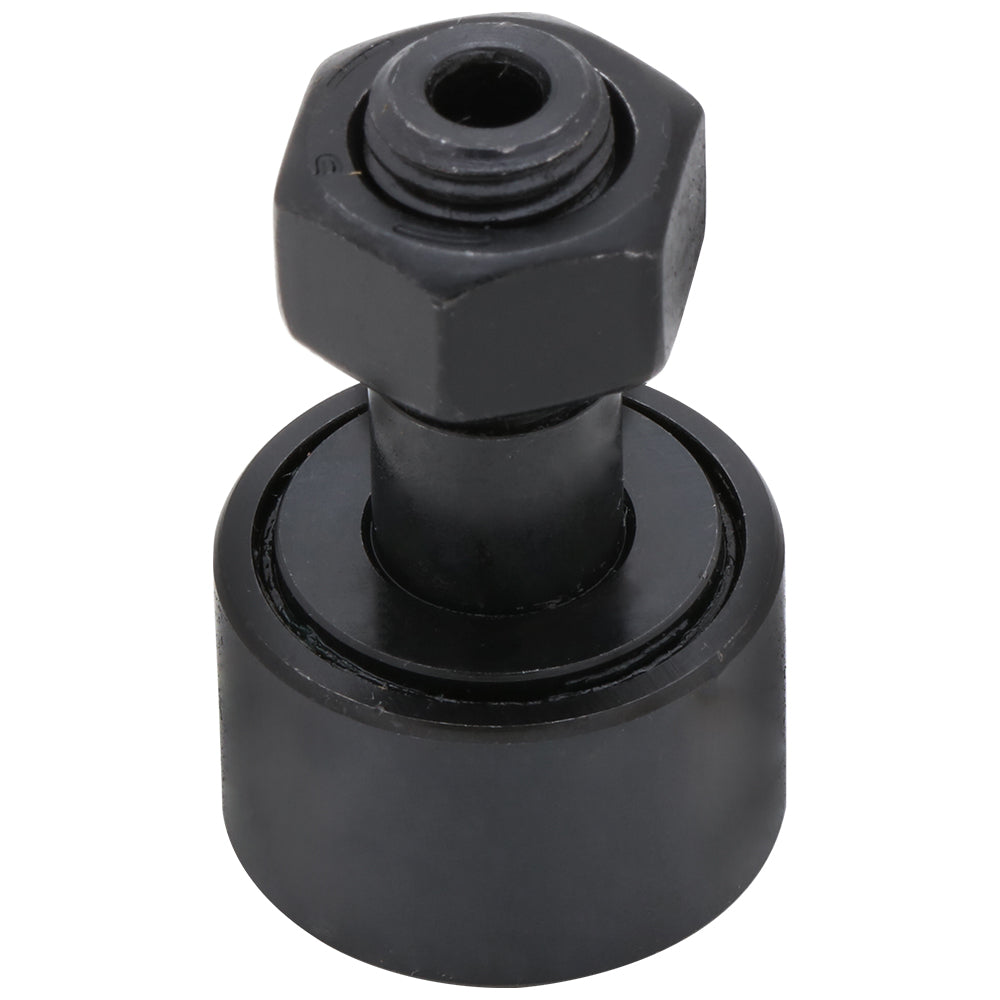

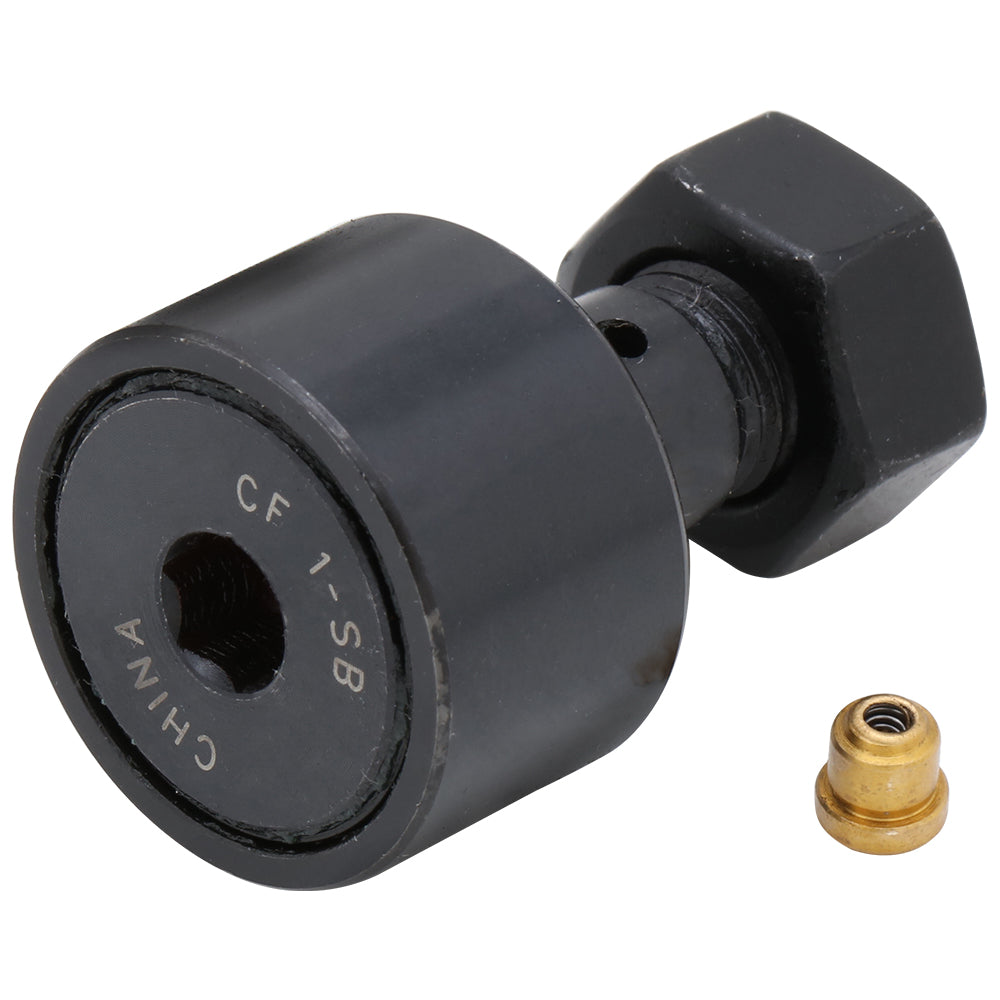

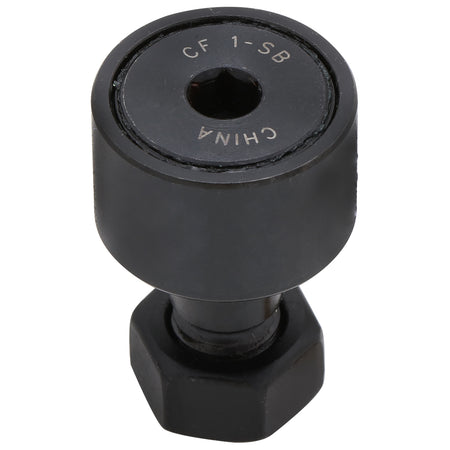

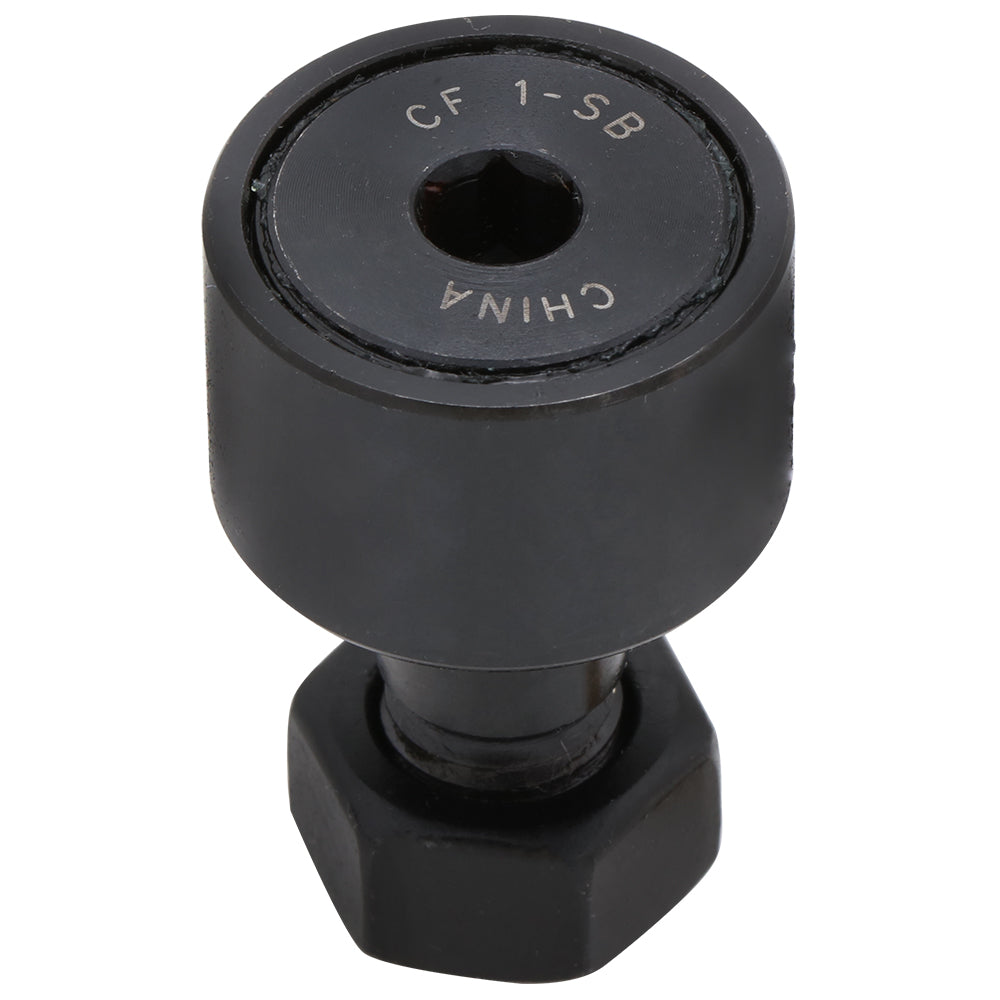

CF 1 SB - Cam Follower - 1 in Roller Diameter - Hex Socket

In stock
SKU: CF-1-SB
$11.25
Product details
  • Type Track Roller
  • Part Number CF-1-SB
  • Roller Diameter 1 in | 25.4 mm
  • Roller Width 0.625 in | 15.875 mm
  • Cross Reference CF16 PP, S-32-LW, S32L, S32, CR-1-XB, CR-16, CF-1S, CRSB-16, CRS-16
Description

Cam Follower - Stud Type Track Roller Bearing

The cam follower is a stud-type track roller bearing designed for precise motion control in demanding industrial applications. Built with a thick-walled outer ring, it delivers excellent load capacity and resistance to deformation under high radial loads. The integrated stud design simplifies installation while providing a secure and stable mounting solution.

Specifications

Roller Diameter 1 in | 25.4 mm
Roller Width 0.625 in | 15.875 mm
Stud Diameter 0.438 in | 11.125 mm
Stud Length 1 in | 25.4 mm
Thread Length 12.7 in | 0.5 mm
Threads 7/16-20
Cross Reference CF16 PP, S-32-LW, S32L, S32, CR-1-XB, CR-16, CF-1S, CRSB-16, CRS-16
Coating Black Oxide
