QJZ

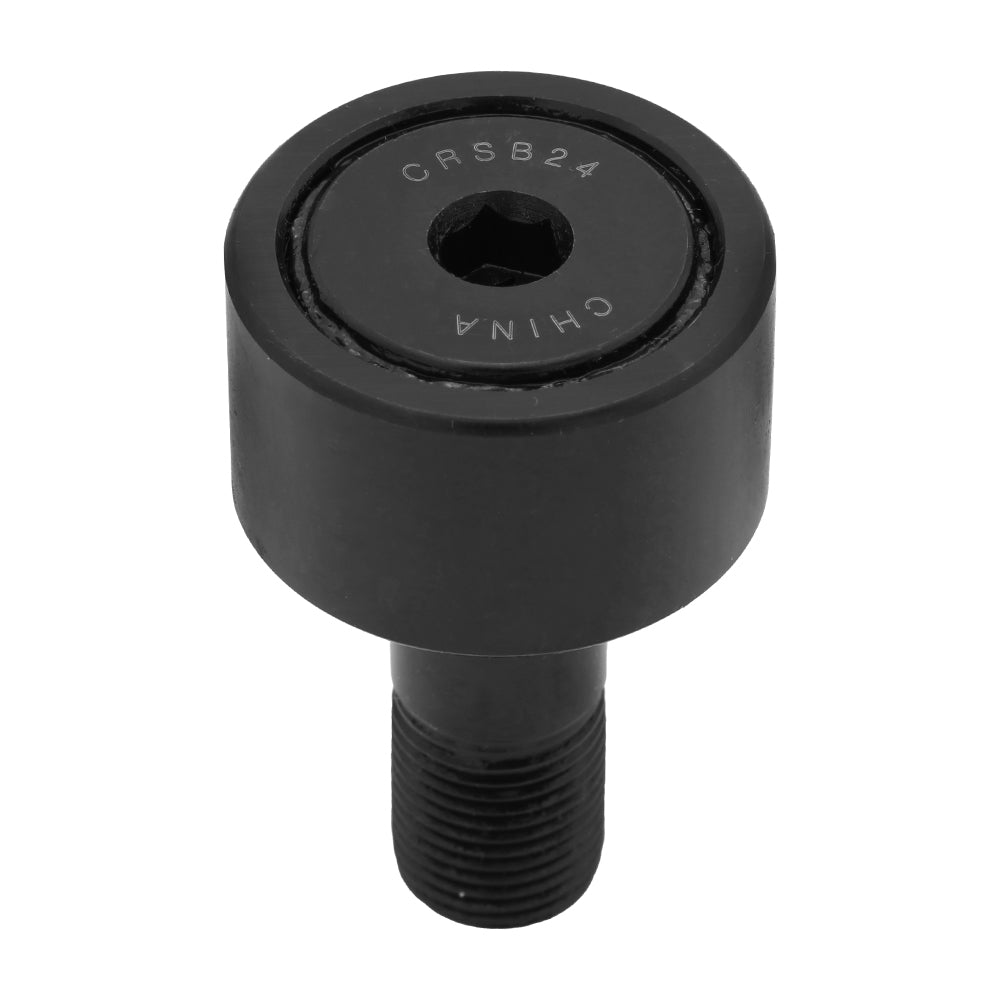

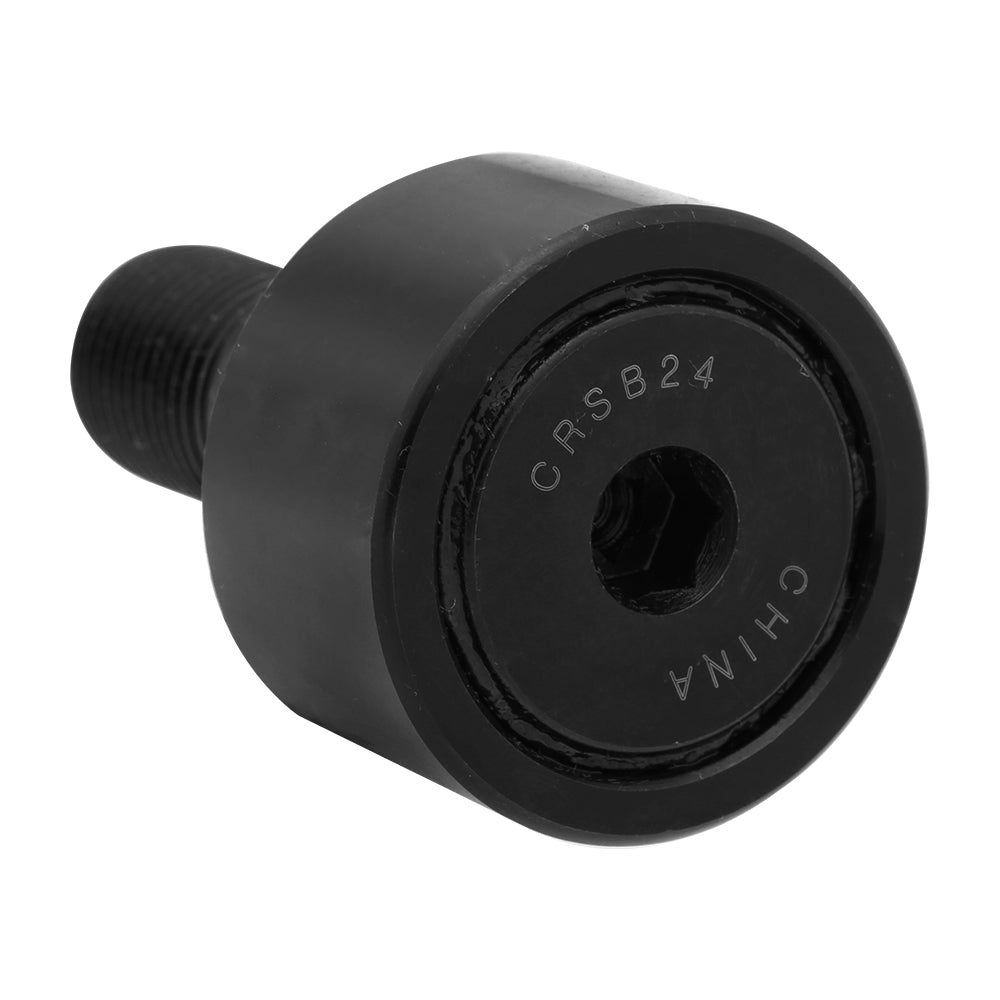

CF 1 1/2 SB - Cam Follower - 1.5 in Roller Diameter - Hex Socket

In stock
SKU: CF-1-1/2-SB
$19.99
Product details
  • Type Track Roller
  • Part Number CF-1-1/2-SB
  • Roller Diameter 1.5 in | 38.1 mm
  • Roller Width 0.875 in | 22.225 mm
  • Cross Reference CF24 PP, S48L, S-48-LW, CF-1 1/2, CR-1 1/2 -XB, CF-1 1/2S, CR-24, CRS-24, CRSB-24, S48, RBC11/2
Description

Cam Follower - Stud Type Track Roller Bearing

The cam follower is a stud-type track roller bearing designed for precise motion control in demanding industrial applications. Built with a thick-walled outer ring, it delivers excellent load capacity and resistance to deformation under high radial loads. The integrated stud design simplifies installation while providing a secure and stable mounting solution.

Specifications

Roller Diameter 1.5 in | 38.1 mm
Roller Width 0.875 in | 22.225 mm
Stud Diameter 0.625 in | 15.875 mm
Stud Length 1.5 in | 38.1 mm
Thread Length 19.05 in | 0.75 mm
Threads 5/8-18
Cross Reference CF24 PP, S48L, S-48-LW, CF-1 1/2, CR-1 1/2 -XB, CF-1 1/2S, CR-24, CRS-24, CRSB-24, S48, RBC11/2
Coating Black Oxide
