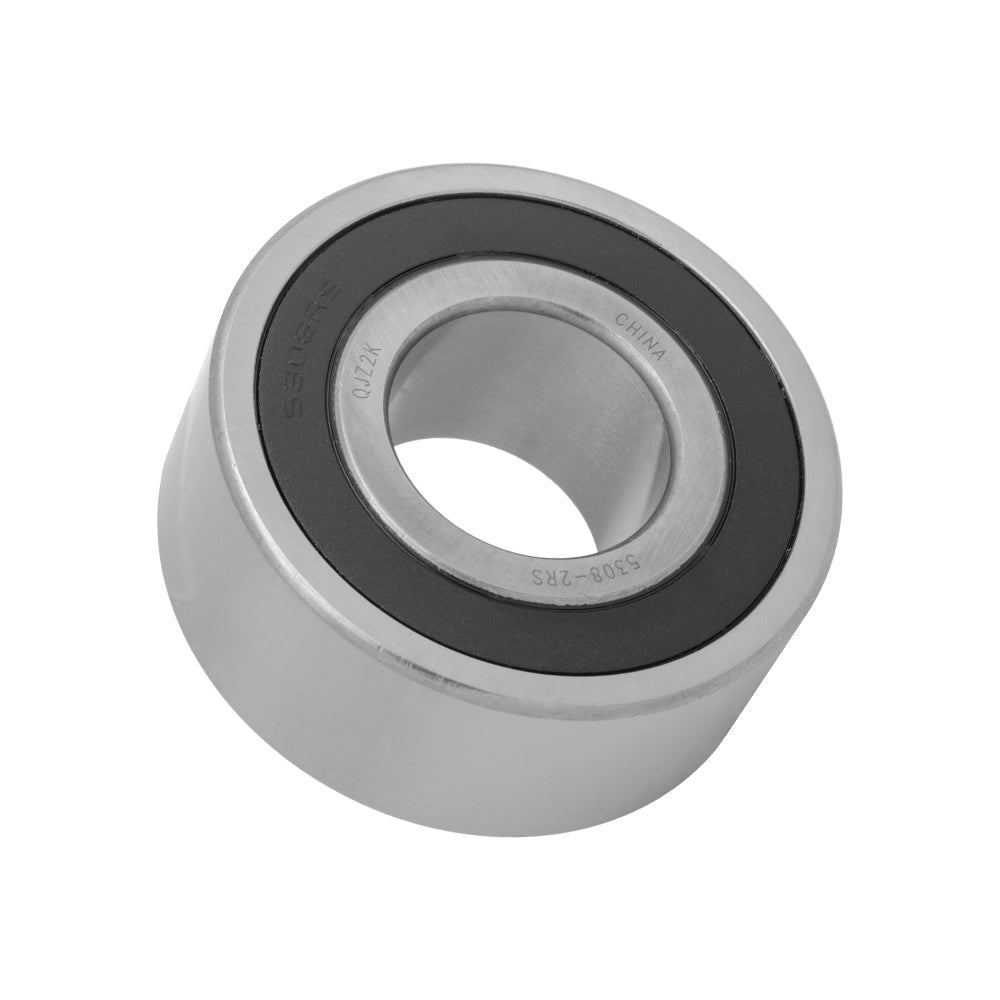

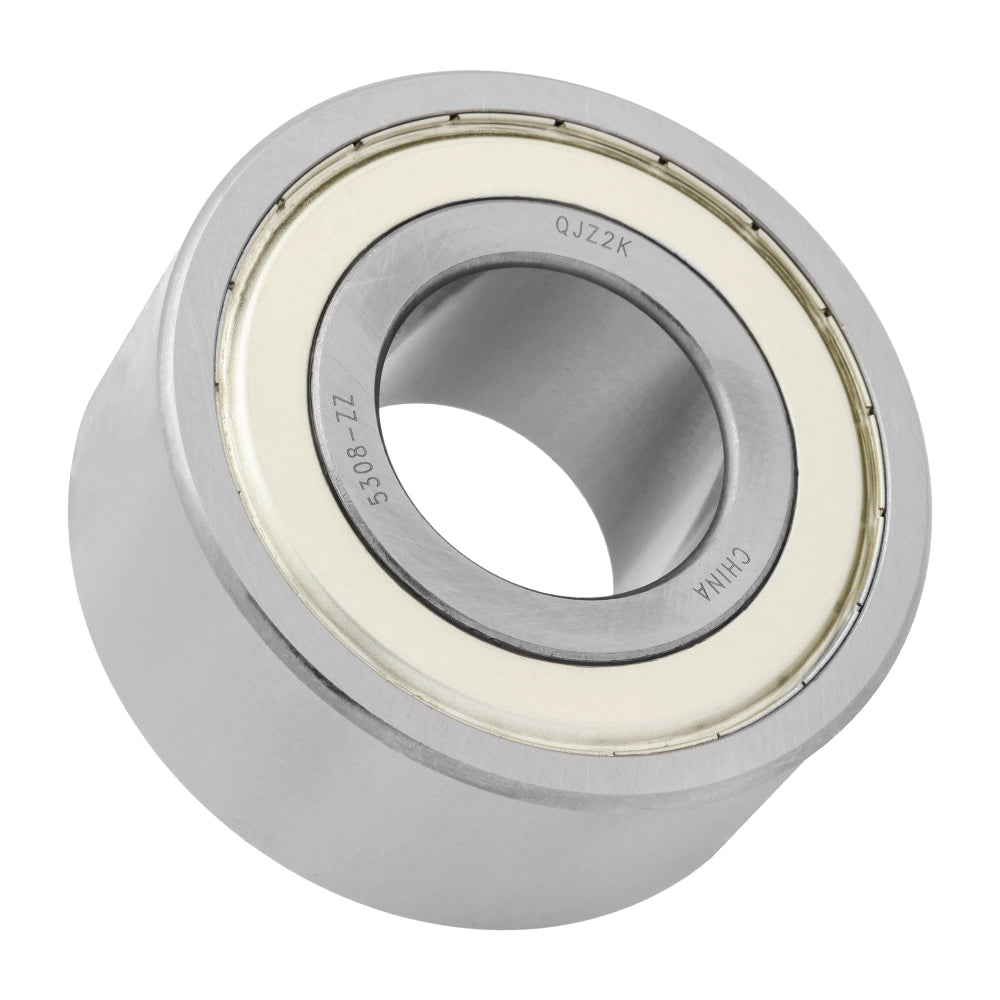

5308 - Angular Contact Ball Bearing, 1.575" Bore (ID)

In stock
Please verify the ball bearing width. Open (no seal) bearings may have a different width than sealed versions.
We offer bundled pricing for all ball bearings. Discounts for packs of 2, 5, 10, 50, and 100 units are automatically applied at checkout.
Seal Type
$16.50
Product details
  • Type Ball Bearings
  • Part Number 5308
  • Bore (Inner Diameter) 1.575 in | 40 mm
  • Outer Diameter 3.543 in | 90 mm
  • Width 1.437 in | 36.512 mm
  • Width 1.437 in | 36.512 mm
Description

Premium Angular Contact Ball Bearing Design

The 5000 series angular contact ball bearings are double-row bearings designed to support combined radial and axial loads. Their precision construction provides reliable performance, high load capacity, and smooth operation in a wide range of industrial and mechanical applications.

Part Number 5308
Inner Diameter (ID) 1.575 in | 40 mm
Outer Diameter (OD) 3.543 in | 90 mm
Width 1.437 in | 36.512 mm

Cross Reference (Interchangeable Numbers)

3208A.2RS1, 3308.2Z, 3308A-2ZTN9, 3308A-2ZTN9MT33, 3308A2Z, 3308ATN9, 3308B, 3308B-2ZTNG, 3308B-2ZTNH, 3308B.2RSR, 3308B.2Z, 3308B.2ZR.TNH, 3308B.2ZR.TNG, 3308B.2ZR.TVH, 3308B-2ZR, 3308B.TNH, 3308B.TNG, 3308B.TVH, 3308-2Z, 3308ZZ, 5308-2NSE, 5308-2NSL, 5308A, 5308A2RS, 5308A2Z, 5308AZZ, 5308C, 5308CFF, 5308CZZ, 5308-CFF, 5308DD, 5308DDU, 5308E, 5308E2Z, 5308FF, 5308J, 5308KDD, 5308KSSE, 5308LB, 5308LLB, 5308LLU, 5308LU, 5308M, 5308MFF, 5308MG, 5308PP, 5308RS5308A2RS, 5308SS, 5308VV, 5308W, 5308WG, 5308Z, 5308ZZ, B5308-2RSR, 55608, 3056308, 40BE33, 9BBNON, I-132280, 3306, 3306ATN9, 5306A, 5306C3308



Applications

  • Electric motors
  • Pumps and compressors
  • Gearboxes and transmissions
  • Machine tool spindles
  • General industrial machinery
