5307 - Angular Contact Ball Bearing

In stock

Please verify the ball bearing width. Open (no seal) bearings may have a different width than sealed versions.

We offer bundled pricing for all ball bearings. Discounts for packs of 2, 5, 10, 50, and 100 units are automatically applied at checkout.

Seal Type

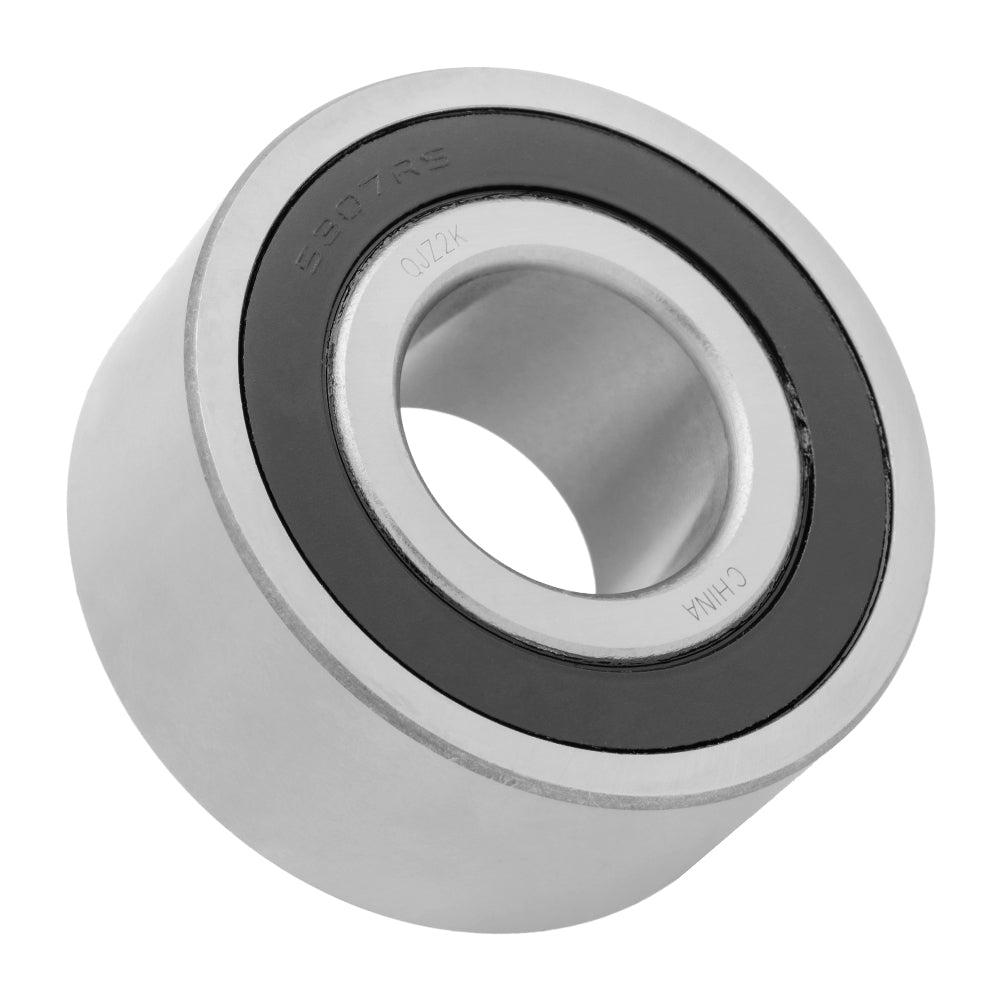

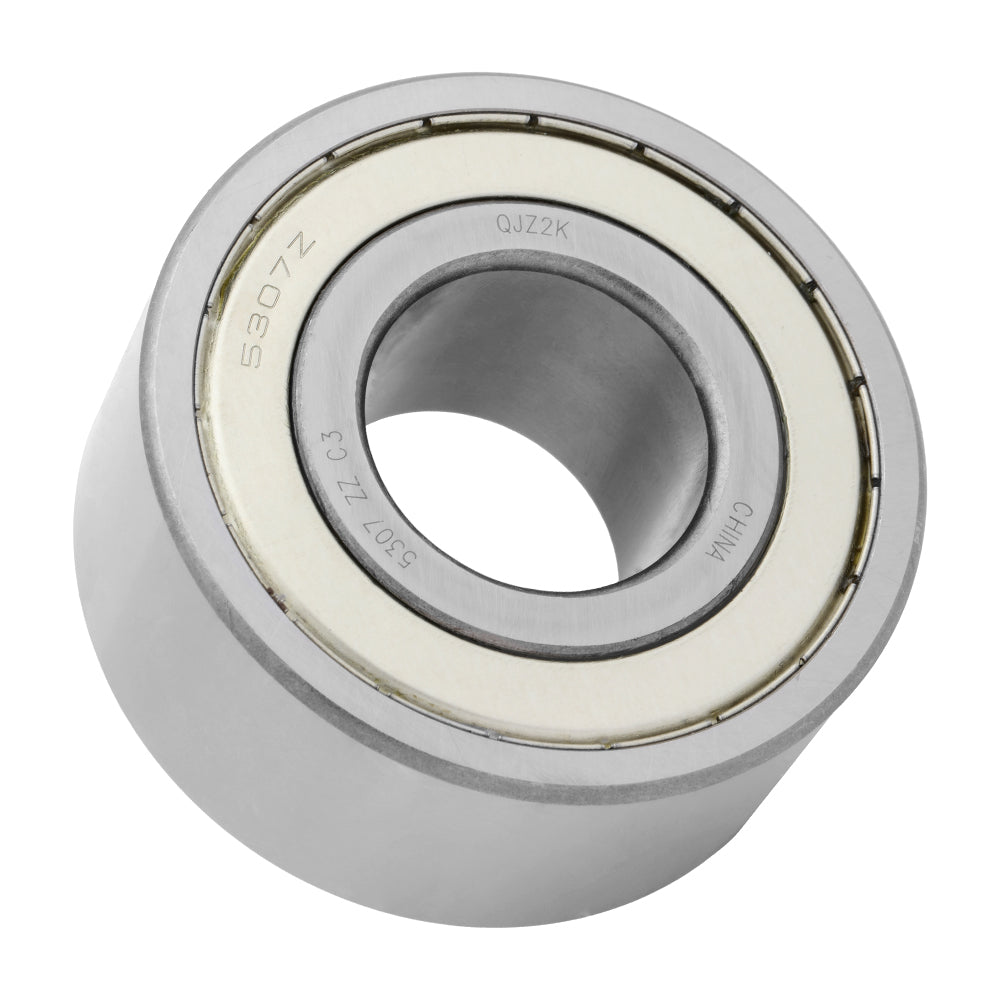

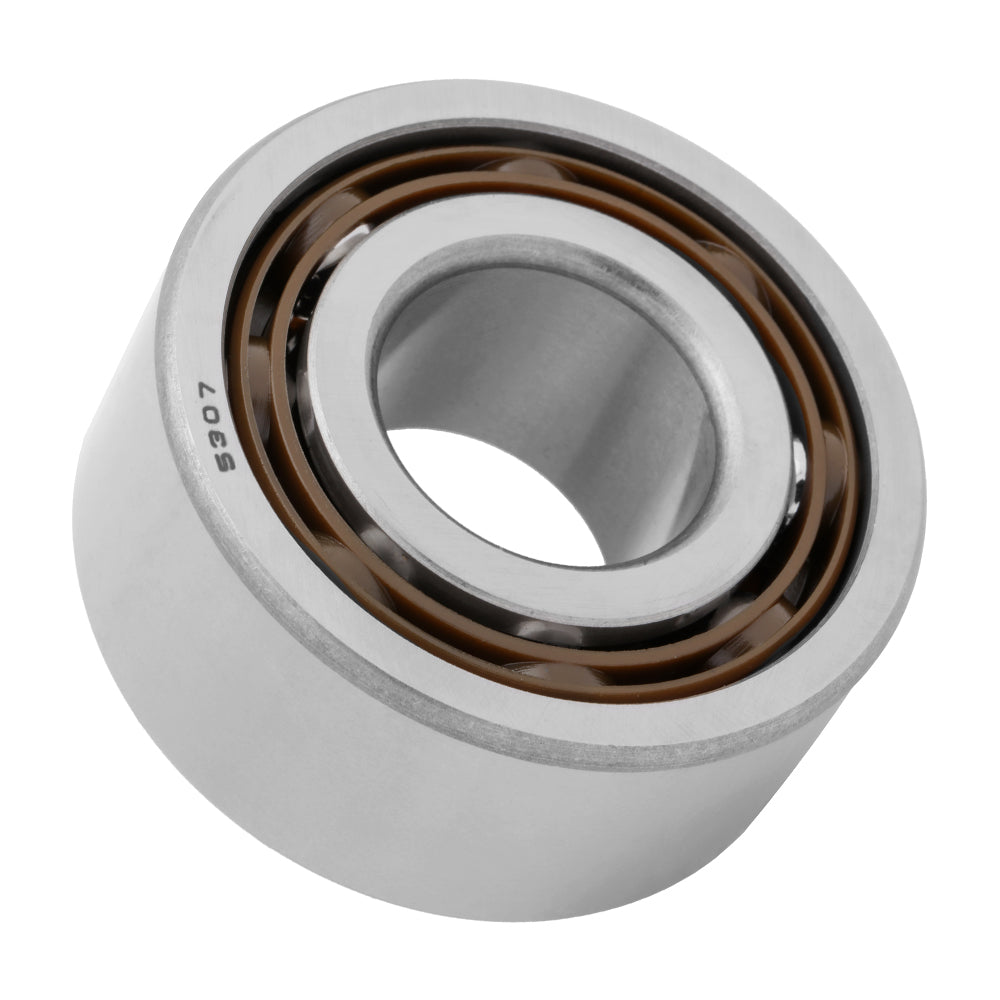

Double Rubber Seal (2RS) Double Metal Shield (ZZ) Open Style (No Seal)

$16.25

Product details

Type Ball Bearings
Part Number 5307
Bore (Inner Diameter) 1.378 in | 35 mm
Outer Diameter 3.15 in | 80 mm
Width 1.374 in | 34.9 mm
Width 1.374 in | 34.9 mm

Premium Angular Contact Ball Bearing Design

The 5000 series angular contact ball bearings are double-row bearings designed to support combined radial and axial loads. Their precision construction provides reliable performance, high load capacity, and smooth operation in a wide range of industrial and mechanical applications.

Part Number	5307
Inner Diameter (ID)	1.378 in \| 35 mm
Outer Diameter (OD)	3.15 in \| 80 mm
Width	1.374 in \| 34.9 mm

Cross Reference (Interchangeable Numbers)

3307, 3307.2RS, 3307.2Z, 3307A-2RS1TN9, 3307A-2RS1TN9MT33, 3307ATN9, 3307B, 3307B-2RSTNG, 3307B-2RSTNH, 3307B-2ZR, 3307B 2ZR, 3307B.2RSR, 3307B.2RSR.TNH, 3307B.2RSR.TNG, 3307B.2RSR.TVH, 3307B.2ZR.TNH, 3307B.2ZR.TNG, 3307B.2ZR.TVH, 3307B.TNH, 3307B.TNG, 3307B.TVH, 3307 E-2RS1, 3307-2Z, 3307 2RS, 5307-2NSE, 5307-2RSR, 5307-2Z, 5307A, 5307A2RS, 5307A2Z, 5307AZZ, 5307ALLU, 5307C, 5307CFF, 5307CZZ, 5307-CFF, 5307DU, 5307E, 5307E2RS, 5307E2Z, 5307EE, 5307FF, 5307LB, 5307LU, 5307M, 5307MFF, 5307MZZ, 5307PP, 5307RS, 5307SS, 5307VV, 5307W, 5307ZZ, 5307 Z, 3056307, 35BE33, 8BBNON, I-132108, TVH FAG, INA 55607, NDH 3307A-2ZTN9MT33, SKF 5307CFF MRC3307A-2ZTN9

Applications

Electric motors
Pumps and compressors
Gearboxes and transmissions
Machine tool spindles
General industrial machinery
