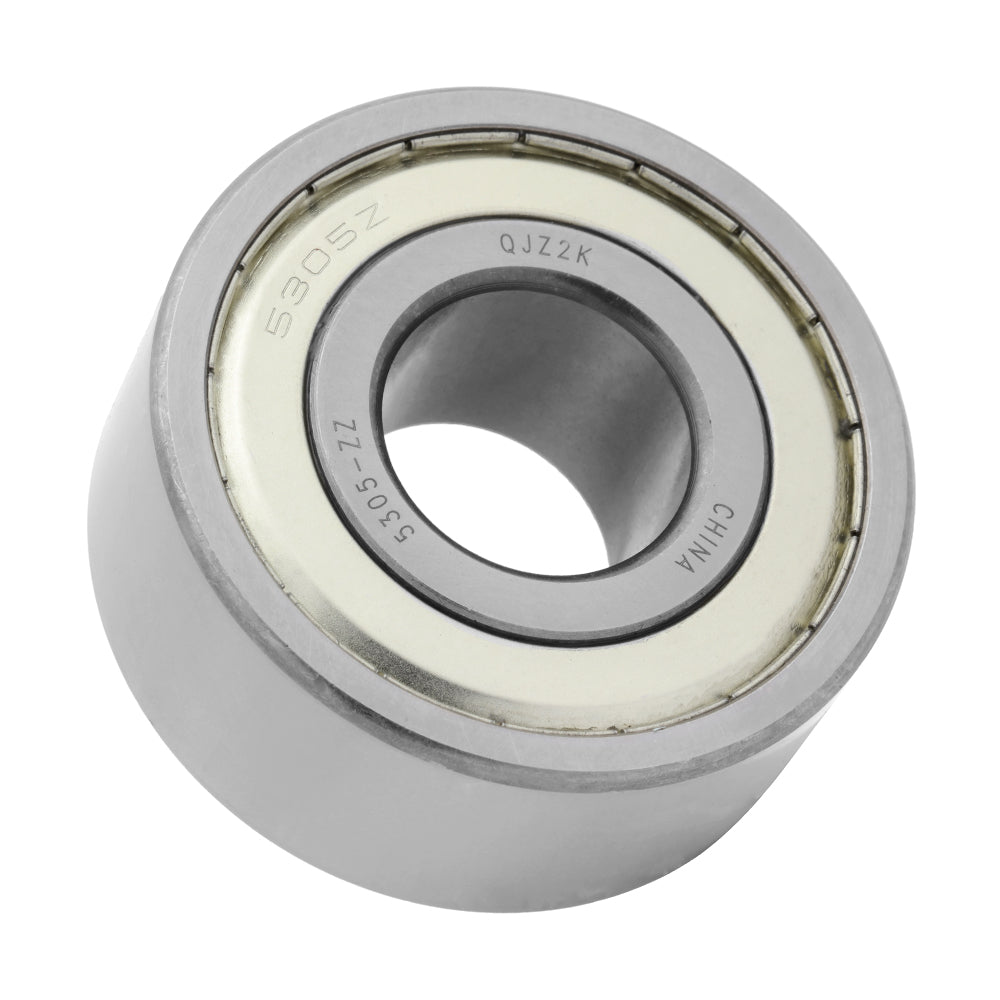

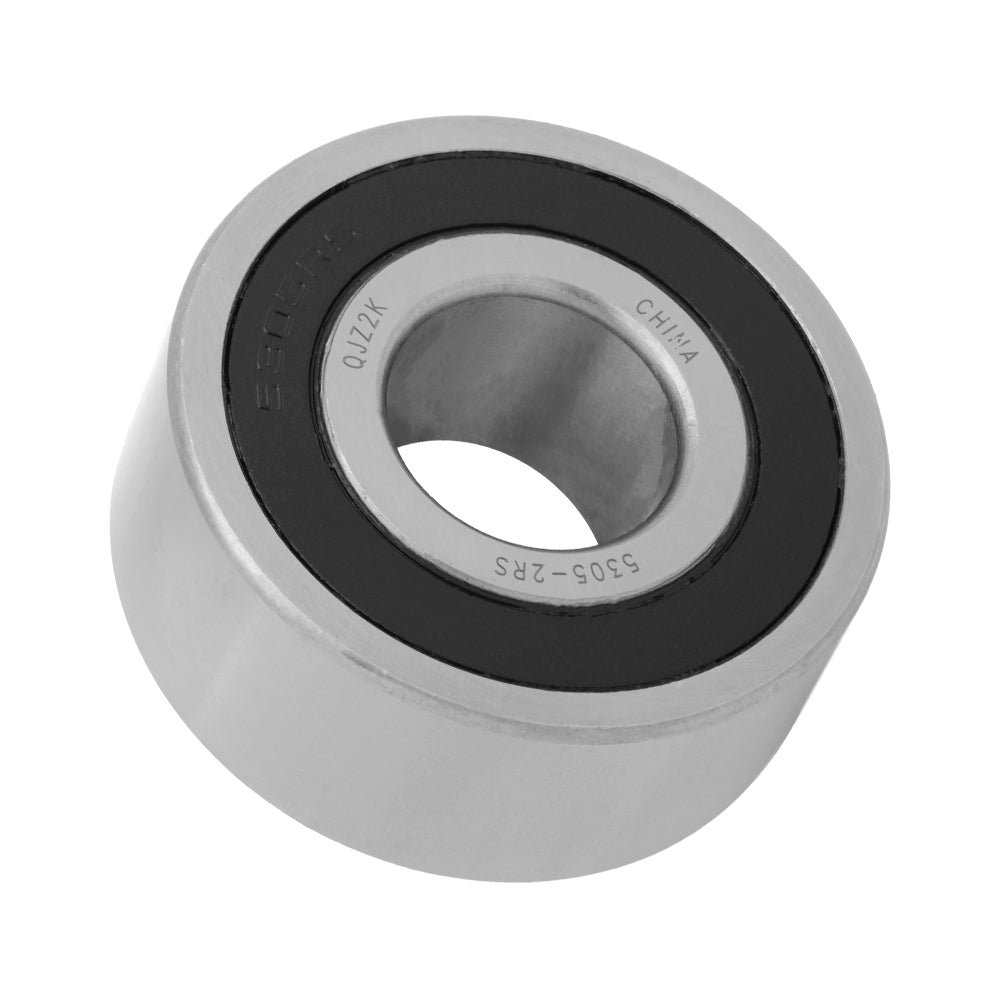

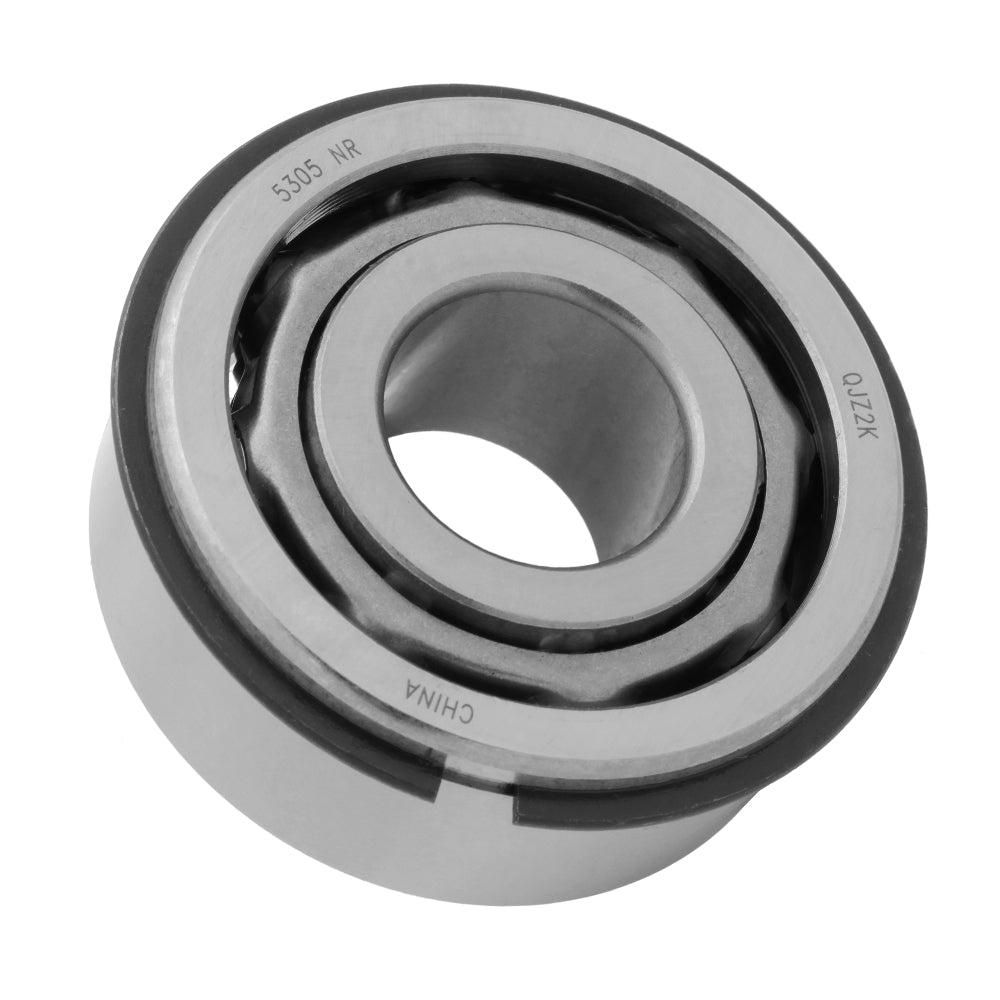

5305 - Angular Contact Ball Bearing, 0.984" Bore (ID)

In stock
Seal Type
Please verify the ball bearing width. Open (no seal) bearings may have a different width than sealed versions.
We offer bundled pricing for all ball bearings. Discounts for packs of 2, 5, 10, 50, and 100 units are automatically applied at checkout.
$10.50
Product details
  • Type Ball Bearings
  • Part Number 5305
  • Bore (Inner Diameter) 0.984 in | 25 mm
  • Outer Diameter 2.441 in | 62 mm
  • Width 1 in | 25.4 mm
Description

Premium Angular Contact Ball Bearing Design

The 5000 series angular contact ball bearings are double-row bearings designed to support combined radial and axial loads. Their precision construction provides reliable performance, high load capacity, and smooth operation in a wide range of industrial and mechanical applications.

Part Number 5305
Inner Diameter (ID) 0.984 in | 25 mm
Outer Diameter (OD) 2.441 in | 62 mm
Width 1 in | 25.4 mm

Cross Reference (Interchangeable Numbers)

3205A.2RS1, 3305.2Z, 3305A-2ZTN9, 3305B-2ZTNG, 3305B-2ZTNH, 3305B.2RSR, 3305B.2ZR.TNH, 3305B.2ZR.TNG, 3305B.2ZR.TVH, 3305B-2Z, 3305BTNG-2ZR, 3305ZZ, 5305-2NSE, 5305-2NSL, 5305-2RS, 5305A2RS, 5305A2Z, 5305A.2RSJ1, 5305A-2Z1, 5305CFF, 5305CZZ, 5305DDU, 5305E2Z, 5305FF, 5305KDD, 5305LLB, 5305LLU, 5305MFF, 5305PP, 5305RS234162, 5305SBKSS, 5305SS234162, 5305VV, 5305Z, 5305-ZZ, B5305-2RSR, B5305.2ZR, 55605

Ā

Applications

  • Electric motors
  • Pumps and compressors
  • Gearboxes and transmissions
  • Machine tool spindles
  • General industrial machinery
