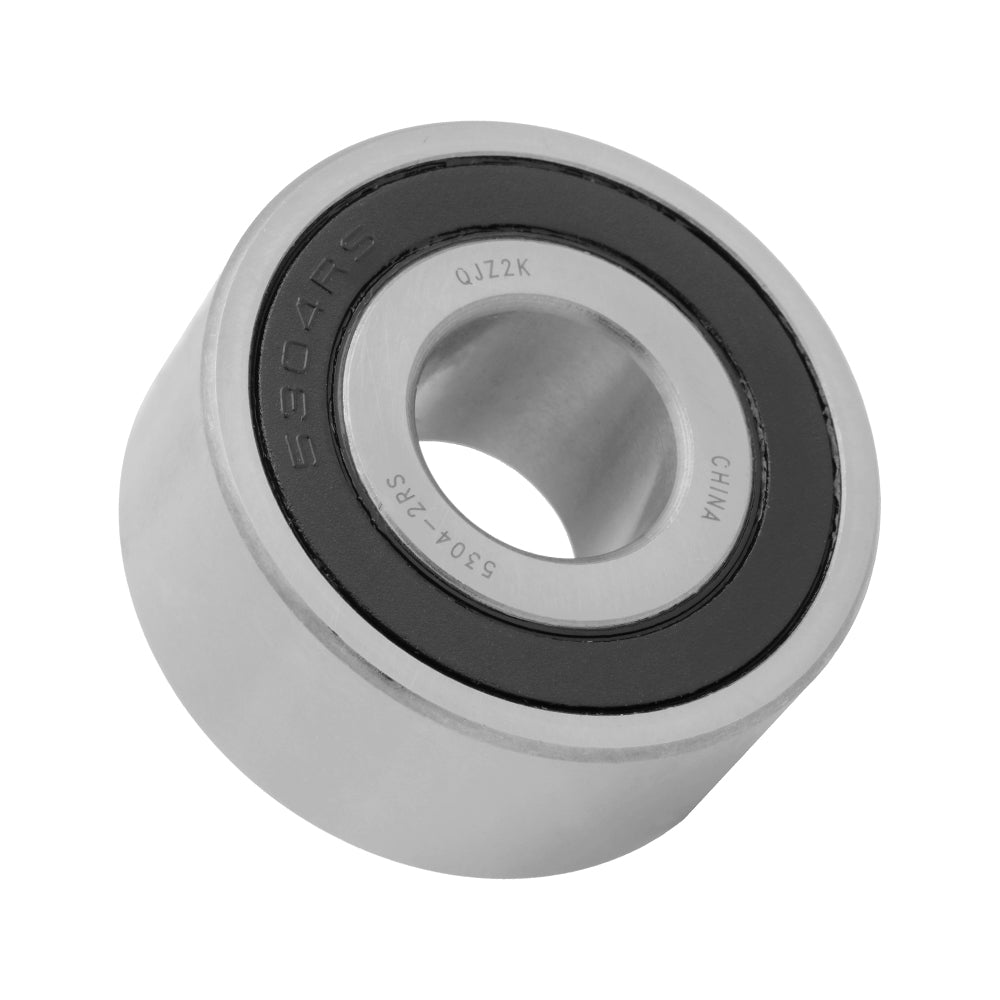

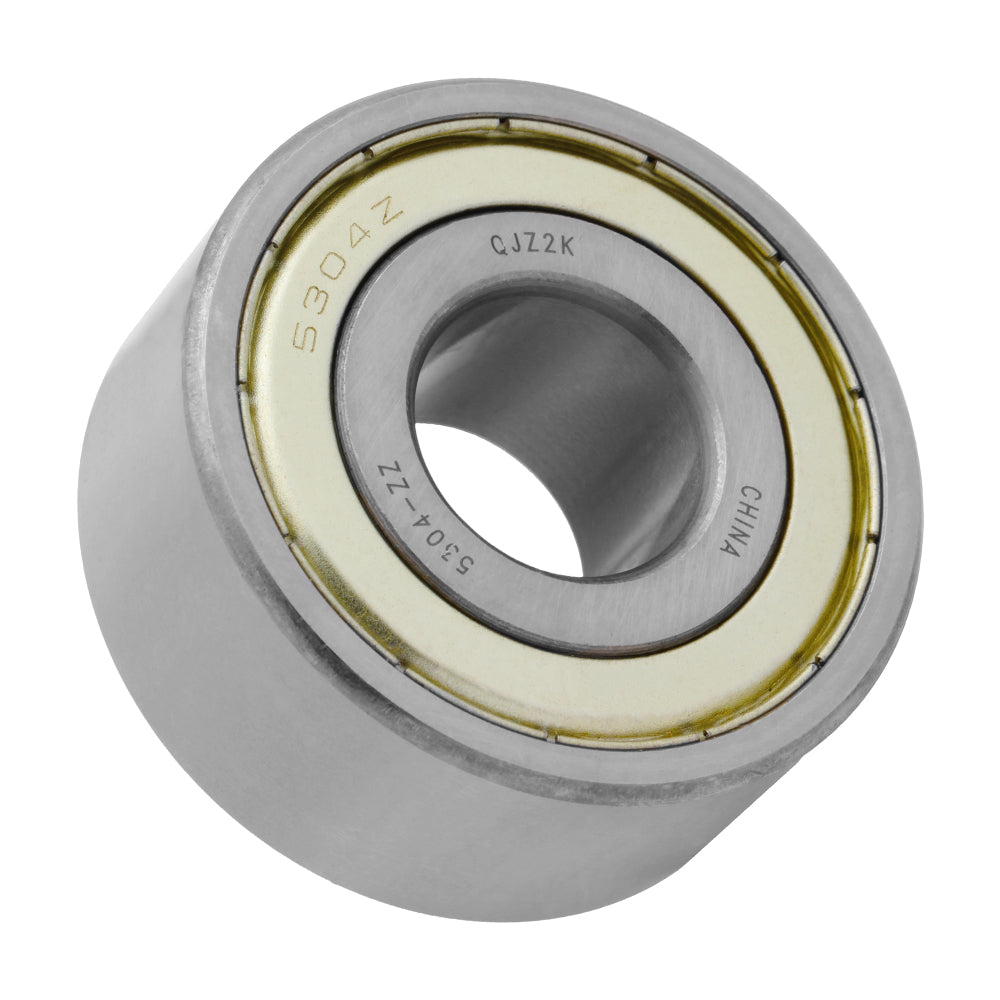

5304 - Angular Contact Ball Bearing, 0.787" Bore (ID)

In stock
Seal Type
Please verify the ball bearing width. Open (no seal) bearings may have a different width than sealed versions.
We offer bundled pricing for all ball bearings. Discounts for packs of 2, 5, 10, 50, and 100 units are automatically applied at checkout.
$7.50
Product details
  • Type Ball Bearings
  • Part Number 5304
  • Bore (Inner Diameter) 0.787 in | 20 mm
  • Outer Diameter 2.047 in | 52 mm
  • Width 0.874 in | 22.2 mm
Description

Premium Angular Contact Ball Bearing Design

The 5000 series angular contact ball bearings are double-row bearings designed to support combined radial and axial loads. Their precision construction provides reliable performance, high load capacity, and smooth operation in a wide range of industrial and mechanical applications.

Part Number 5304
Inner Diameter (ID) 0.787 in | 20 mm
Outer Diameter (OD) 2.047 in | 52 mm
Width 0.874 in | 22.2 mm

Cross Reference (Interchangeable Numbers)

3204A.2RS1, 3304.2Z, 3304A-2ZTN9, 3304B-2ZTNG, 3304B-2ZTNH, 3304B.2RSR, 3304B.2Z, 3304B.2ZR.TNH, 3304B.2ZR.TNG, 3304B.2ZR.TVH, 3304B-2ZR, 3304ZZ, 5304-2NSE, 5304-2NSL, 5304-2RSR, 5304-2RSR5304A2RS, 5304-2ZJ1, 5304A2RS, 5304A2Z, 5304A.2RSJ1, 5304BZZ, 5304CFF, 5304CZZ, 5304DDU, 5304DU, 5304E2Z, 5304FF, 5304KDD3304.2Z, 5304LB, 5304LLB, 5304LLU, 5304LU, 5304MFF, 5304PP, 5304RS, 5304VV, 5304ZZ, 5304 Z, 5304-CFF, B5304-2RSR, 3304-2Z



Applications

  • Electric motors
  • Pumps and compressors
  • Gearboxes and transmissions
  • Machine tool spindles
  • General industrial machinery
