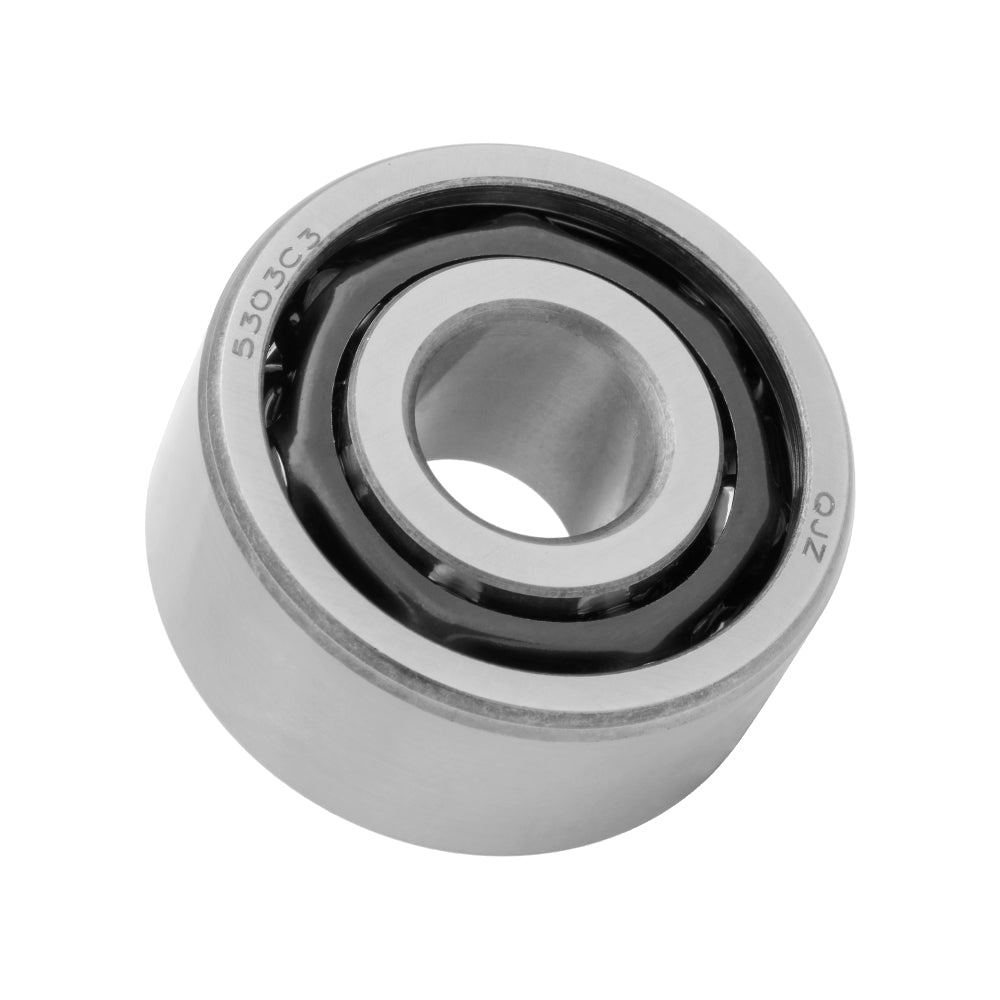

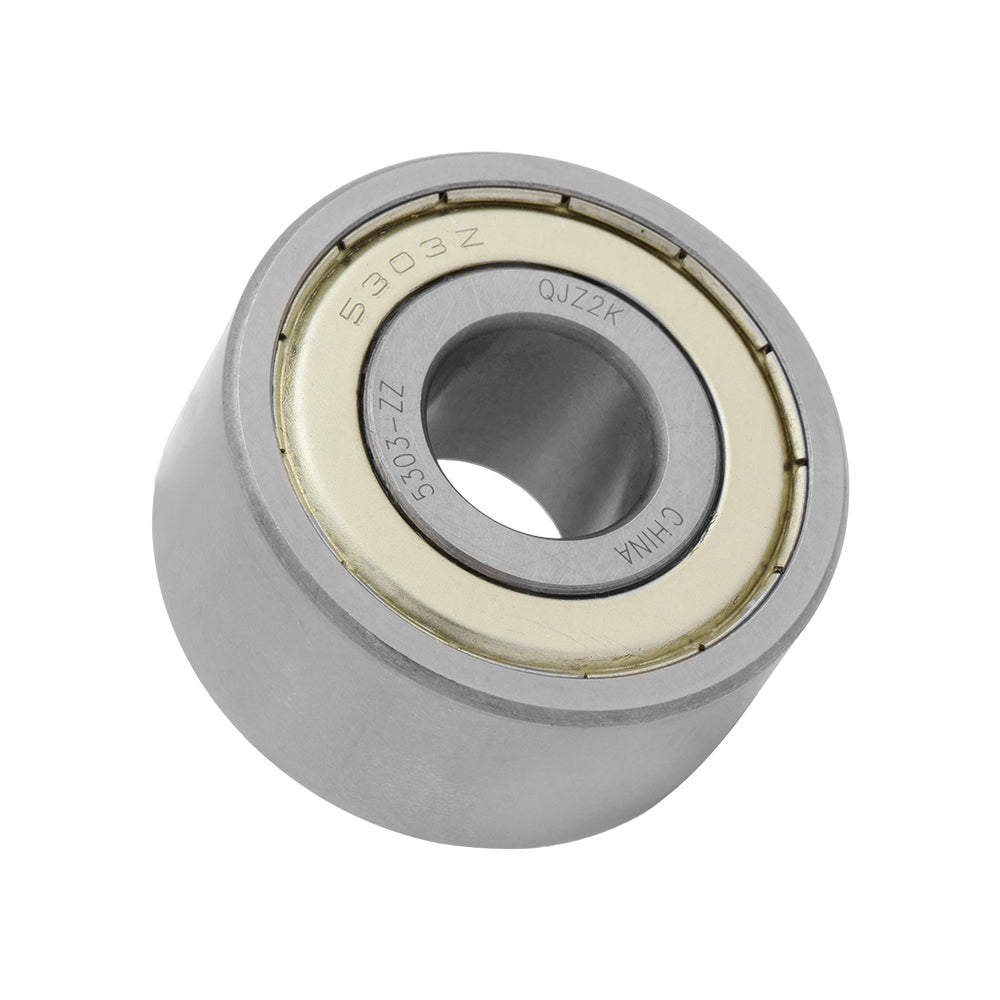

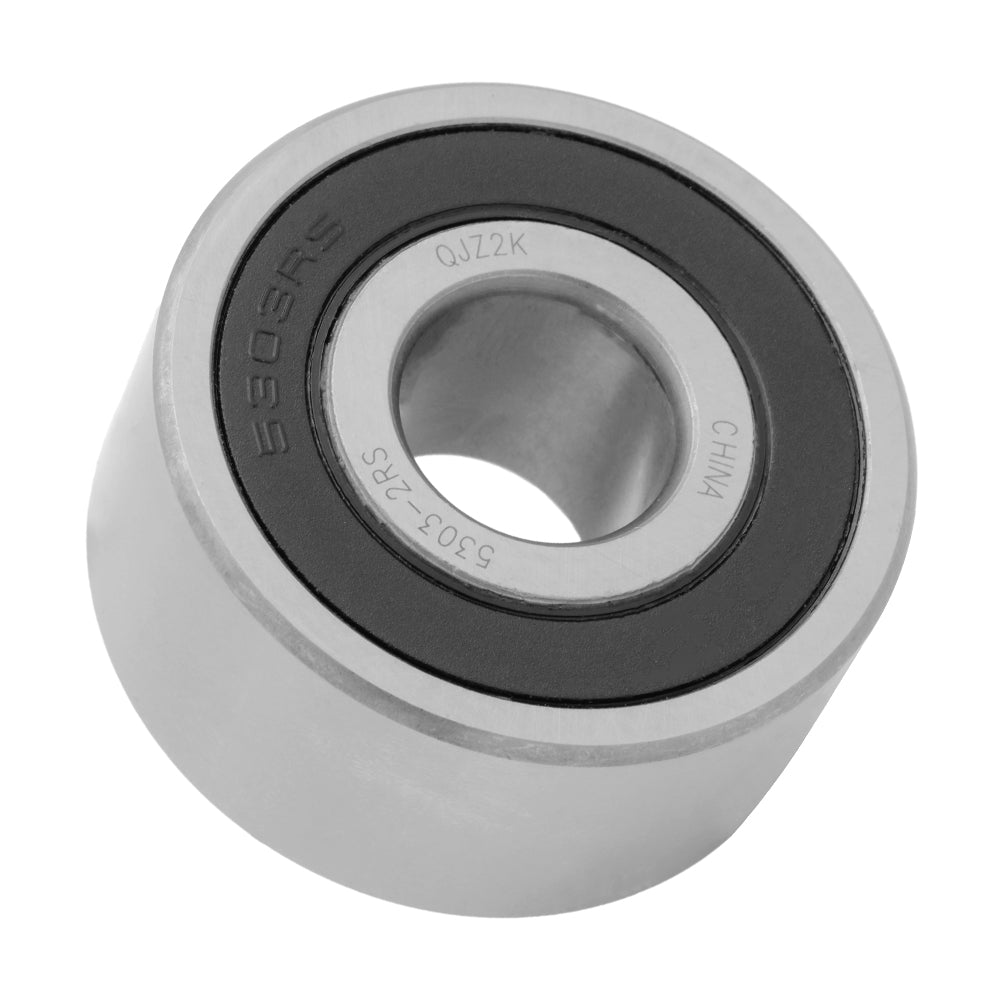

5303 - Angular Contact Ball Bearing, 0.669" Bore (ID)

SKU: 5303-2RS
Seal Type
$7.99
In stock
Ships the same business day when ordered before 12:30p PST (M-F)
Product details
  • Part Number 5303
  • Bore (Inner Diameter) 0.669 in | 17 mm
  • Outer Diameter 1.85 in | 47 mm
  • Width 0.874 in | 22.2 mm
  • Width 0.874 in | 22.2 mm

Please double-check the width before placing your order

Some Open (No Seal) bearings may have a different width than sealed versions (2RS & ZZ)

Description

Premium Angular Contact Ball Bearing Design

The 5000 series angular contact ball bearings are double-row bearings designed to support combined radial and axial loads. Their precision construction provides reliable performance, high load capacity, and smooth operation in a wide range of industrial and mechanical applications.

Part Number 5303
Inner Diameter (ID) 0.669 in | 17 mm
Outer Diameter (OD) 1.85 in | 47 mm
Width 0.874 in | 22.2 mm

Cross Reference (Interchangeable Numbers)

3303, 3303ATN9, 3303B, 3303B-2RSR, 3303B.TNH, 3303B.TNG, 3303B.TVH, 5303-2NSE, 5303-2NSL, 5303-2RS1, 5303-2RSR, 5303A, 5303A2Z, 5303DDU, 5303DU, 5303EE, 5303K, 5303LB, 5303LLB, 5303LLU, 5303LU, 5303PP, 5303RS, 5303SB, 5303SBKFF, 5303-SBKZZ, 5303VV, 5303ZZ, 5303 Z, 55603, 17BE33, 3056303, 4BBNON

ย

Applications

  • Electric motors
  • Pumps and compressors
  • Gearboxes and transmissions
  • Machine tool spindles
  • General industrial machinery
