QJZ

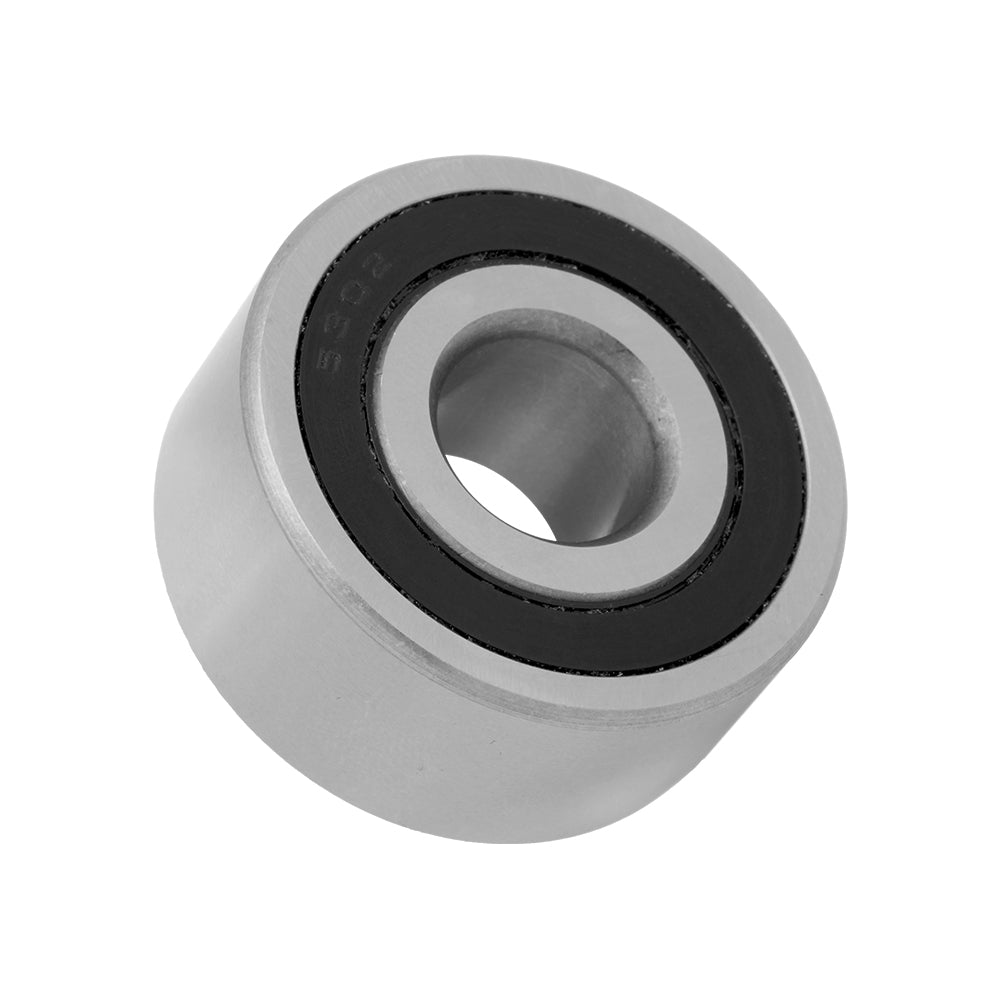

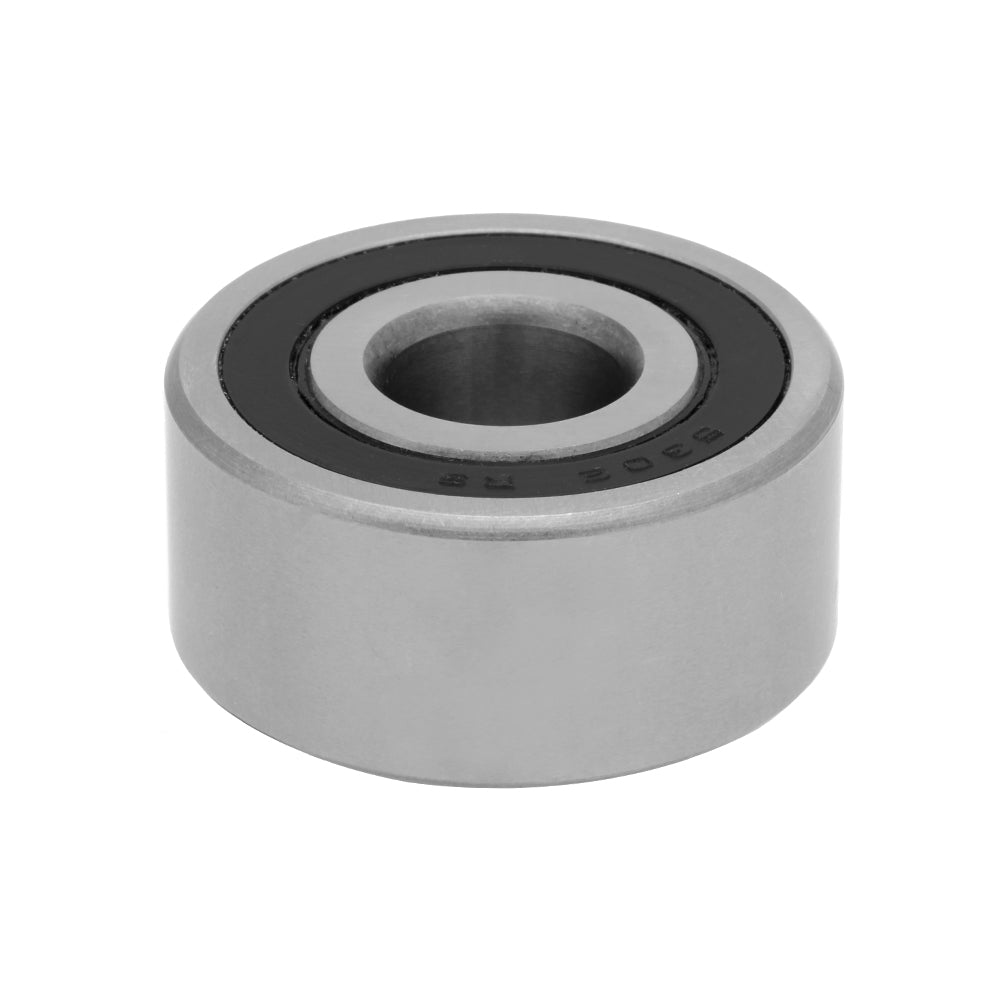

5302 - Angular Contact Ball Bearing

In stock
SKU: 5302-2RS
Please verify the ball bearing width. Open (no seal) bearings may have a different width than sealed versions.
We offer bundled pricing for all ball bearings. Discounts for packs of 2, 5, 10, 50, and 100 units are automatically applied at checkout.
$9.99

Product details

  • Type Ball Bearings
    • Part Number 5302
    • Bore (Inner Diameter) 0.591 in | 15 mm
    • Outer Diameter 1.654 in | 42 mm
    • Width 0.748 in | 19 mm
Description

Premium Angular Contact Ball Bearing Design

The 5000 series angular contact ball bearings are double-row bearings designed to support combined radial and axial loads. Their precision construction provides reliable performance, high load capacity, and smooth operation in a wide range of industrial and mechanical applications.

Part Number 5302
Inner Diameter (ID) 0.591 in | 15 mm
Outer Diameter (OD) 1.654 in | 42 mm
Width 0.748 in | 19 mm

Cross Reference (Interchangeable Numbers)

5302.2RSJ1, 5302RS, 3302FF, 5302LLU, 5302LLB, 5302DDU, 5302VV, 5302SS, 5302-2RSR, 5302PP, 5302-2NSE5302-SBKZZ5302 2RS, 5302 RS



Applications

  • Electric motors
  • Pumps and compressors
  • Gearboxes and transmissions
  • Machine tool spindles
  • General industrial machinery
