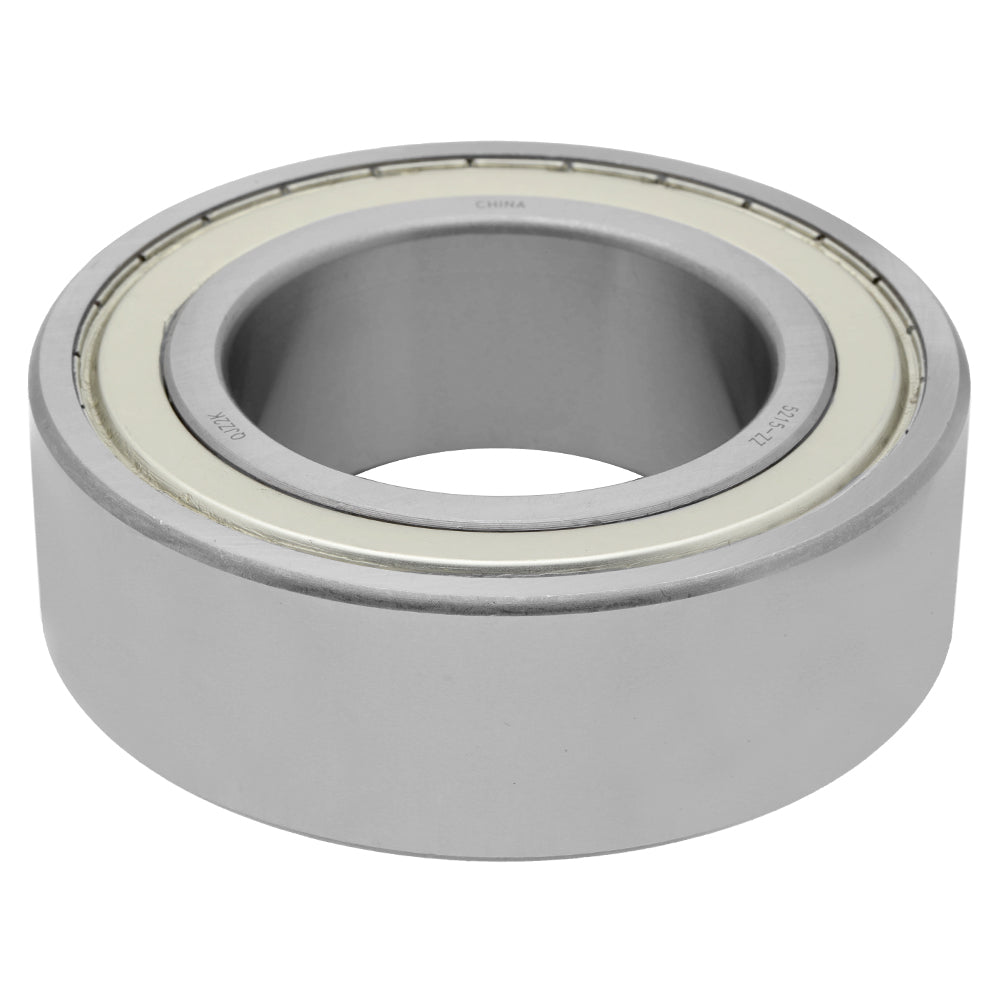

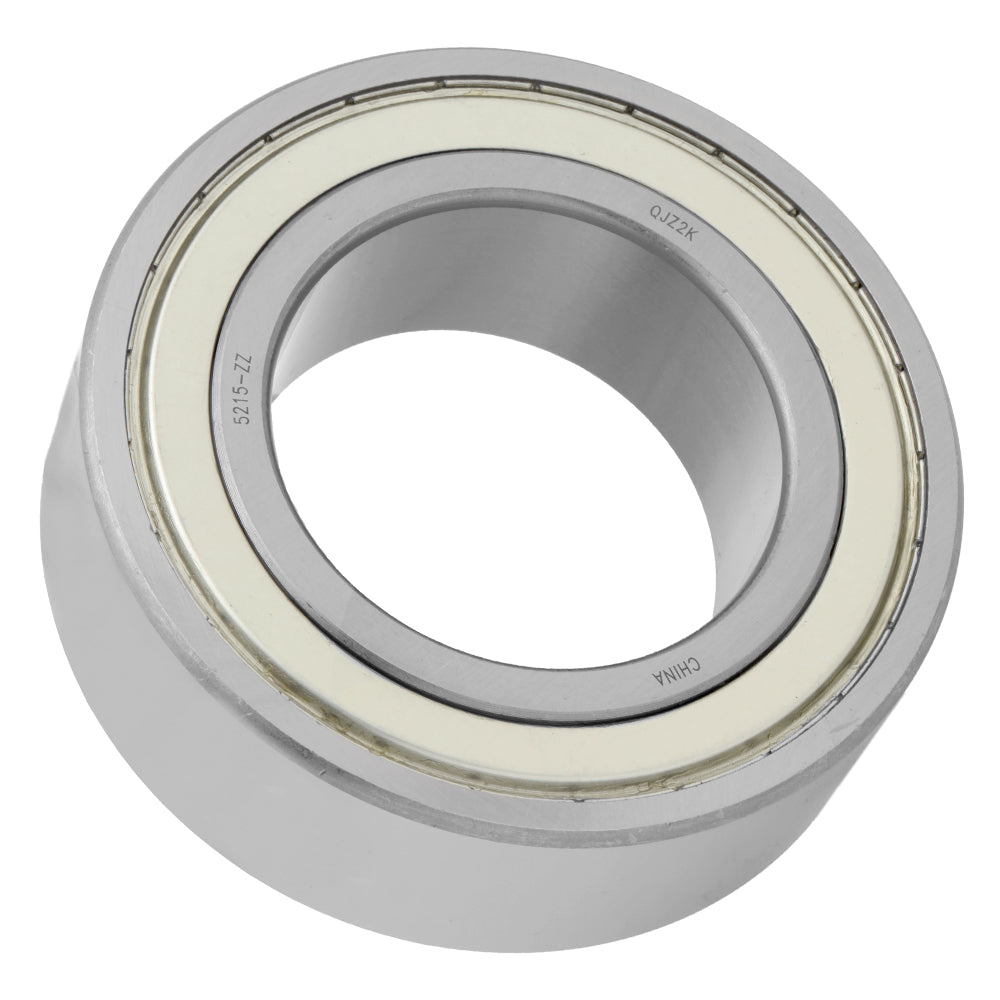

5215 - Angular Contact Ball Bearing

SKU: 5215-ZZ
We offer bundled pricing for all ball bearings. Discounts for packs of 2, 5, 10, 50, and 100 units are automatically applied at checkout.
Seal Type
$49.99
In stock
Ships the same business day when ordered before 1:00p PST (M-F)
Product details
  • Part Number 5215
  • Bore (Inner Diameter) 2.953 in | 75 mm
  • Outer Diameter 5.118 in | 130 mm
  • Width 1.625 in | 41.275 mm
  • Width 1.625 in | 41.275 mm

Please double-check the width before placing your order

Some Open (No Seal) bearings may have a different width than sealed versions (2RS & ZZ)

Description

Premium Angular Contact Ball Bearing Design

The 5000 series angular contact ball bearings are double-row bearings designed to support combined radial and axial loads. Their precision construction provides reliable performance, high load capacity, and smooth operation in a wide range of industrial and mechanical applications.

Part Number 5215
Inner Diameter (ID) 2.953 in | 75 mm
Outer Diameter (OD) 5.118 in | 130 mm
Width 1.625 in | 41.275 mm

Cross Reference (Interchangeable Numbers)

5215Z, 5215B.2ZR, 5215A-2ZJ1, 5215ZZ, 5215CFF, 5215KDD, 5215FF, 5215-2Z5215E2Z, 5215MFF, 55515, 3215B.2ZR, 5215-KFF, 5215A2Z



Applications

  • Electric motors
  • Pumps and compressors
  • Gearboxes and transmissions
  • Machine tool spindles
  • General industrial machinery
