5207 - Angular Contact Ball Bearing

In stock
Please verify the ball bearing width. Open (no seal) bearings may have a different width than sealed versions.
We offer bundled pricing for all ball bearings. Discounts for packs of 2, 5, 10, 50, and 100 units are automatically applied at checkout.
Seal Type
$9.50
Product details
  • Part Number 5207
  • Bore (Inner Diameter) 1.378 in | 35 mm
  • Outer Diameter 2.835 in | 72 mm
  • Width 1.063 in | 26.988 mm
  • Width 1.063 in | 26.988 mm
Description

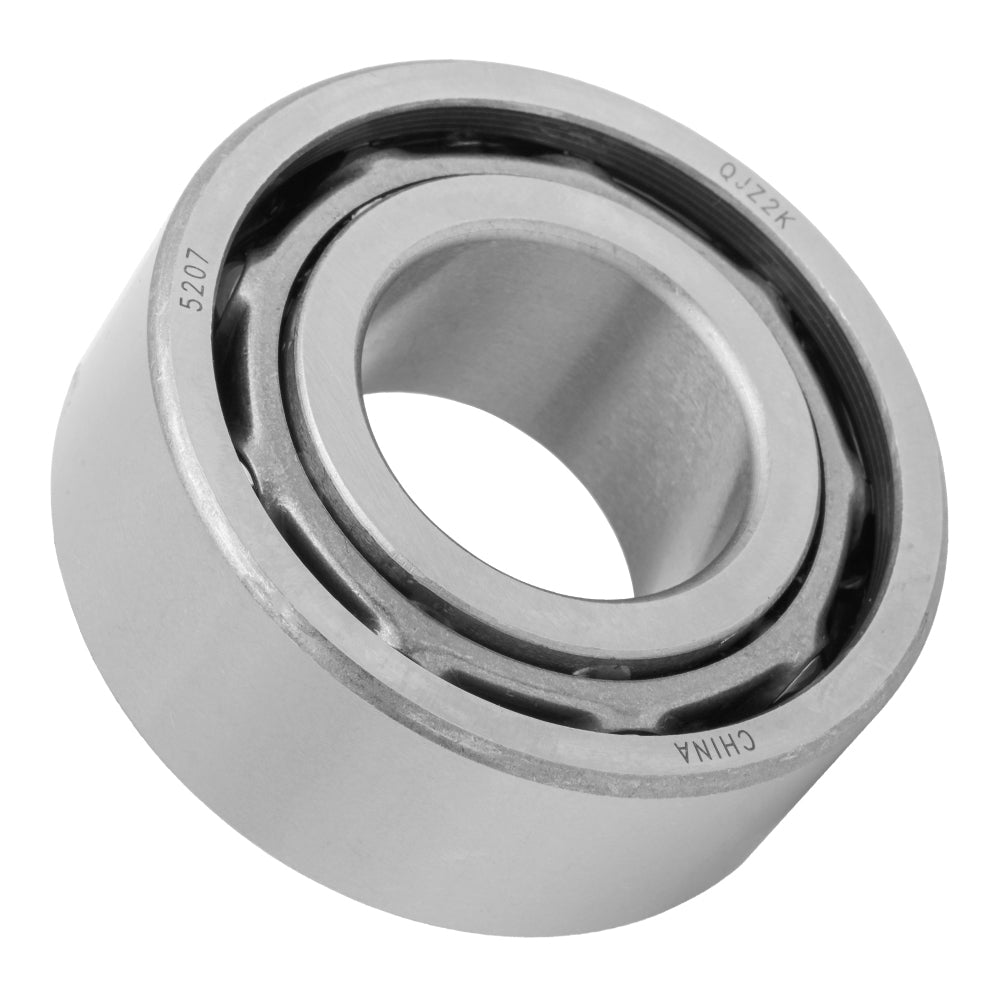

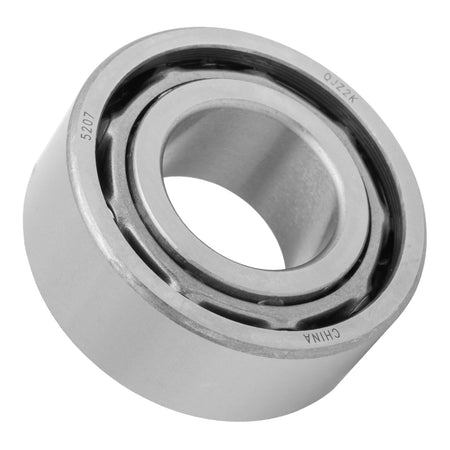

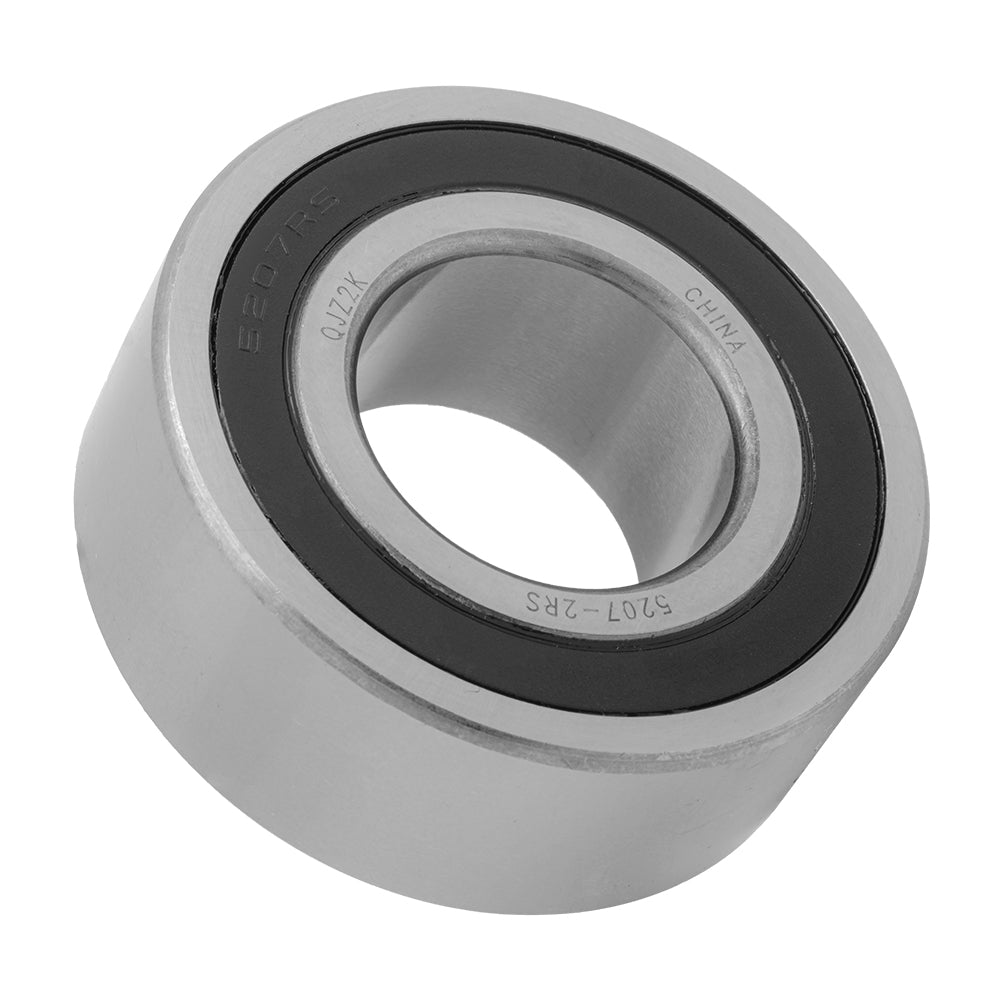

Premium Angular Contact Ball Bearing Design

The 5000 series angular contact ball bearings are double-row bearings designed to support combined radial and axial loads. Their precision construction provides reliable performance, high load capacity, and smooth operation in a wide range of industrial and mechanical applications.

Part Number 5207
Inner Diameter (ID) 1.378 in | 35 mm
Outer Diameter (OD) 2.835 in | 72 mm
Width 1.063 in | 26.988 mm

Cross Reference (Interchangeable Numbers)

5207MFF, 5207.2RSJ1, 5207-2RSR, 5207DDU, 5207LLU, 5207LLB, 5207PP, W5207LU, W5207LUA, W5207LLU, 5207A2RS, 5207CZZ, 3207B.2RSR, 5207 2RS, 5207 RS, 5207RS, 5207MSS, 5207.2ZJ1, 5207ZZ, 5207Z, 5207-2ZR, 5207KDD, 5207SS, 3207.2Z, 3207B.2ZR.TVH, 3207B.2ZR.TNG, 3207B.2ZR.TNH, 3207A-2ZTN9, 3207A-2ZTN9MT33, 3207B-2ZTNG, 3207B-2ZTNH, 234161, 14X-336, 5207AZZ, 3207ZZ, 5207E2Z, 55507, 3207B.2ZR, 5207-SBKFF, 5207A2Z, 5207CFF, 5207 ZZ, 5207 Z, 3207, 5207M, 5207E, 5207W, 5207C, 5207A, 5207K, 3207B.TVH, 3207B.TNG, 3207B.TNH, 3207J, 3207ATN9, 3207B, 35BE32, 3056207, 4AANON



Applications

  • Electric motors
  • Pumps and compressors
  • Gearboxes and transmissions
  • Machine tool spindles
  • General industrial machinery
